Xerox WorkCentre 4265 Service Manual

January 2016
4-160
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 10.7
Repairs and Adjustments
Replacement
CAUTION
Do not damage the fuser stripper fingers when reinstalling the heat roller assembly, refer to
Figure 4.
1. Reinstallation is the reverse of the Removal procedure.
2. Position the spring on the Front Jam Lever in the slot on the Fuser frame (Figure 7).

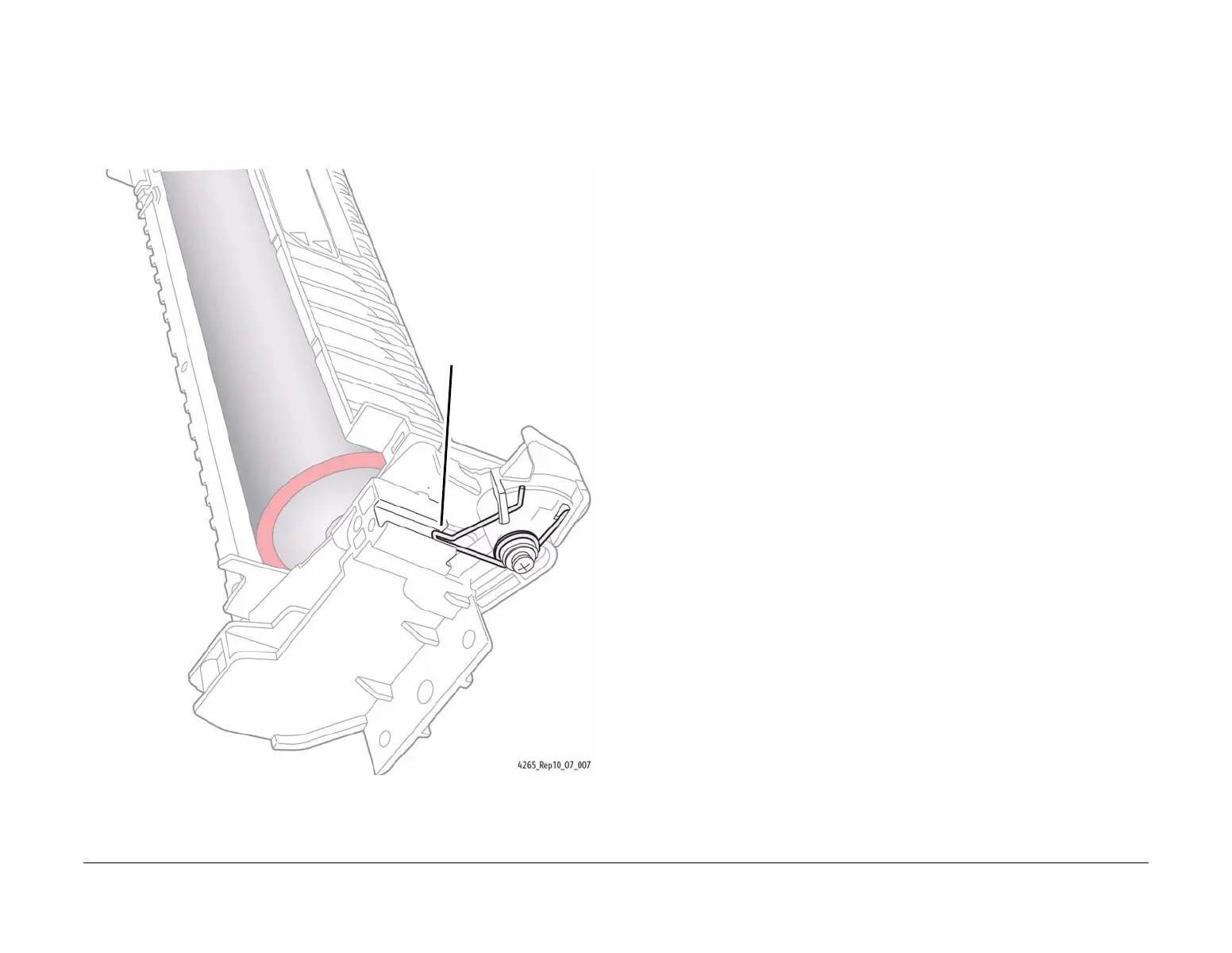

Figure 7 Positioning the Front Jam Lever Spring on the Fuser Frame
3. If a new heat roller assembly or pressure roller are installed, reset the HFSI count to zero.
Go to GP 16 High Frequency Service Items.
1
Position the spring on the
slot in the Fuser frame.

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
