REP 12.7
Repairs and Adjustments
4. Remove the Ejector Assembly and Support Finger assembly (Figure 2)
NOTE: The Ejector Assembly and Support Finger assembly are removed as a unit.

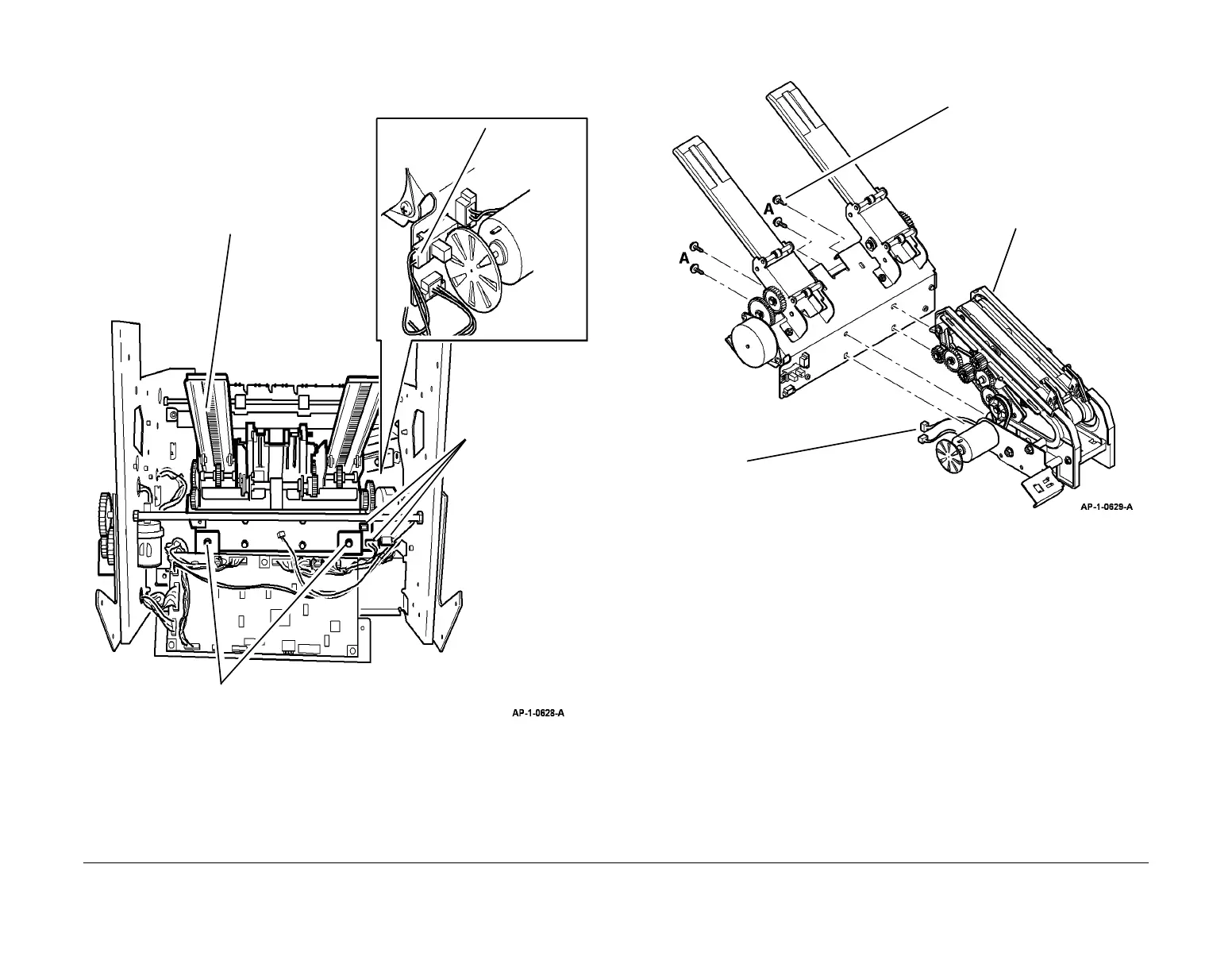

Figure 2 Removing the Ejector Assembly and Support Finger Assembly
5. If necessary, remove the Support Finger Motor, PL 12.25 Item 2.
6. If necessary, remove the Ejector Assembly from the Support Finger assembly (Figure 3).
Figure 3 Removing the Ejector Assembly
2
Disconnect 3 bulk-
head connectors.
4
Remove the Ejector
Assembly and the
Support Finger
assembly.
1
Remove 2 screws.
3
Disconnect 1
connector.
2
Remove 4 screws
marked A.
3
Remove the Ejector
Assembly.
1
Disconnect 2 bulkhead
connectors.
