Xerox WorkCentre 4265 Service Manual

January 2016
4-193
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 14.4
Repairs and Adjustments
2. Ensure that the scanner drive belt is installed correctly into the belt clamp on the CCD
module (Figure 10).

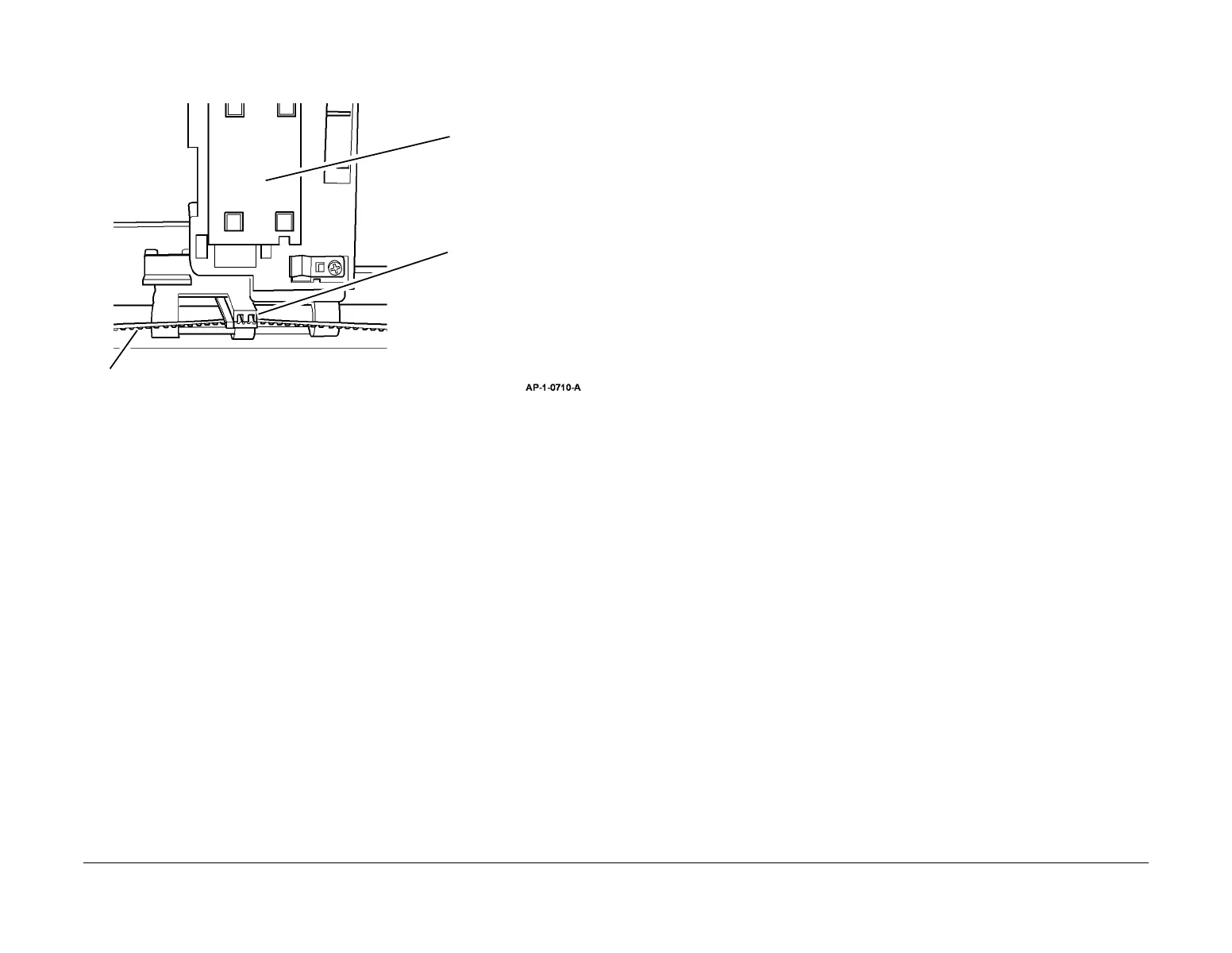

Figure 10 CCD module replacement
3. Ensure the CCD ribbon cable is reconnected correctly:
• When connected to the CCD module, the blue flash should face to the right (toward
the CCD module).
• When connected to the main PWB, the blue flash should face up.
4. If a new CCD module was installed, perform the Shading Adjustment:
• (4150/4250/4260) perform ADJ 14.1 Shading Adjustment.
• (4265) perform ADJ 14.3 Shading Adjustment.
Scanner drive belt
CCD module
Belt clamp

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
