Xerox WorkCentre 4265 Service Manual

January 2016
6-55
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260WorkCentre Work-
dC109
General Procedures and Information

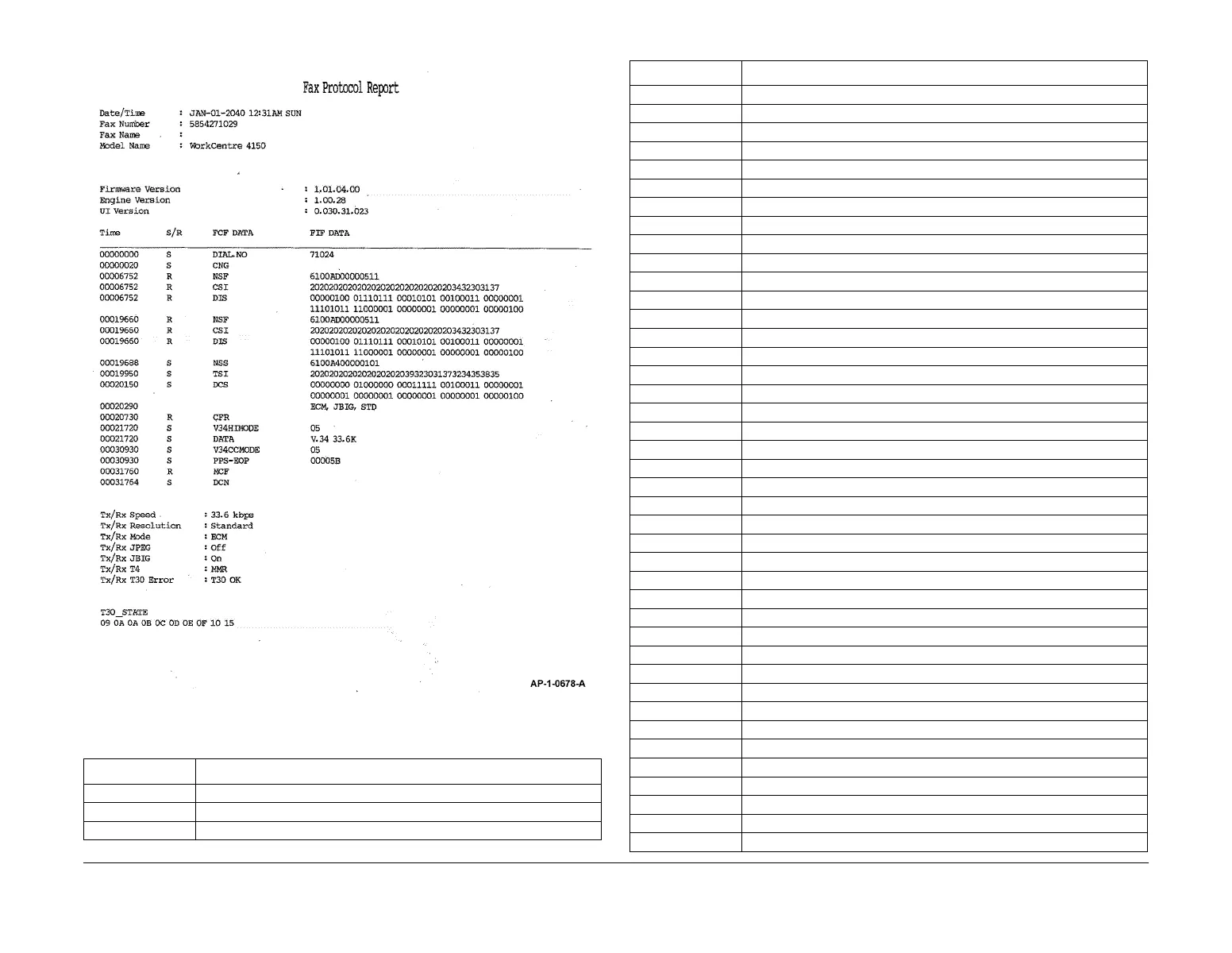

Figure 1 Fax protocol report
Table 1 Abbreviations
Term Description
ANSam Modulated answer tone
CED Called terminal identification
CFR Confirmation to receive
CI Call indicator
CIG Calling subscriber indentation
CJ CM terminator
CM Call menu
CNG Calling tone
CRP Command repeat
CSI Called subscriber identified
CTC Continue to correct
CTR Response for continue to correct
DCN Disconnect
DCS Digital command signal
DIS Digital identification signal
DTC Digital transmit command
EOM End of message
EOP End of procedure
EOR End of retransmission
ERR Response for end of transmission
FCF Facsimile control field
FIF Facsimile information field
FTT Failure to train
JM Joint menu
MCF Message confirmation
MPS Multi page signal
NSC Non to standard facilities command
NSF Non to standard facilities
NSS Non to standard setup
PID Procedure interrupt
PIN Procedure interrupt negative
PIP Procedure interrupt positive
PPS Partial page signal
PPR Partial page request
PRI-EOM Procedure interrupt to EOM
PRI-EOP Procedure interrupt to EOP
PRI-MPS Procedure interrupt to MPS
PWD Password for (polling)
PWD Password for (transmission)
RCP Return to control for partial page
RNR Receive not ready
RR Receive ready
RTN Retrain negative
RTP Retrain positive
Table 1 Abbreviations
Term Description

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
