7-51
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260WorkCentre Work-
PWB Connectors
Wiring Data

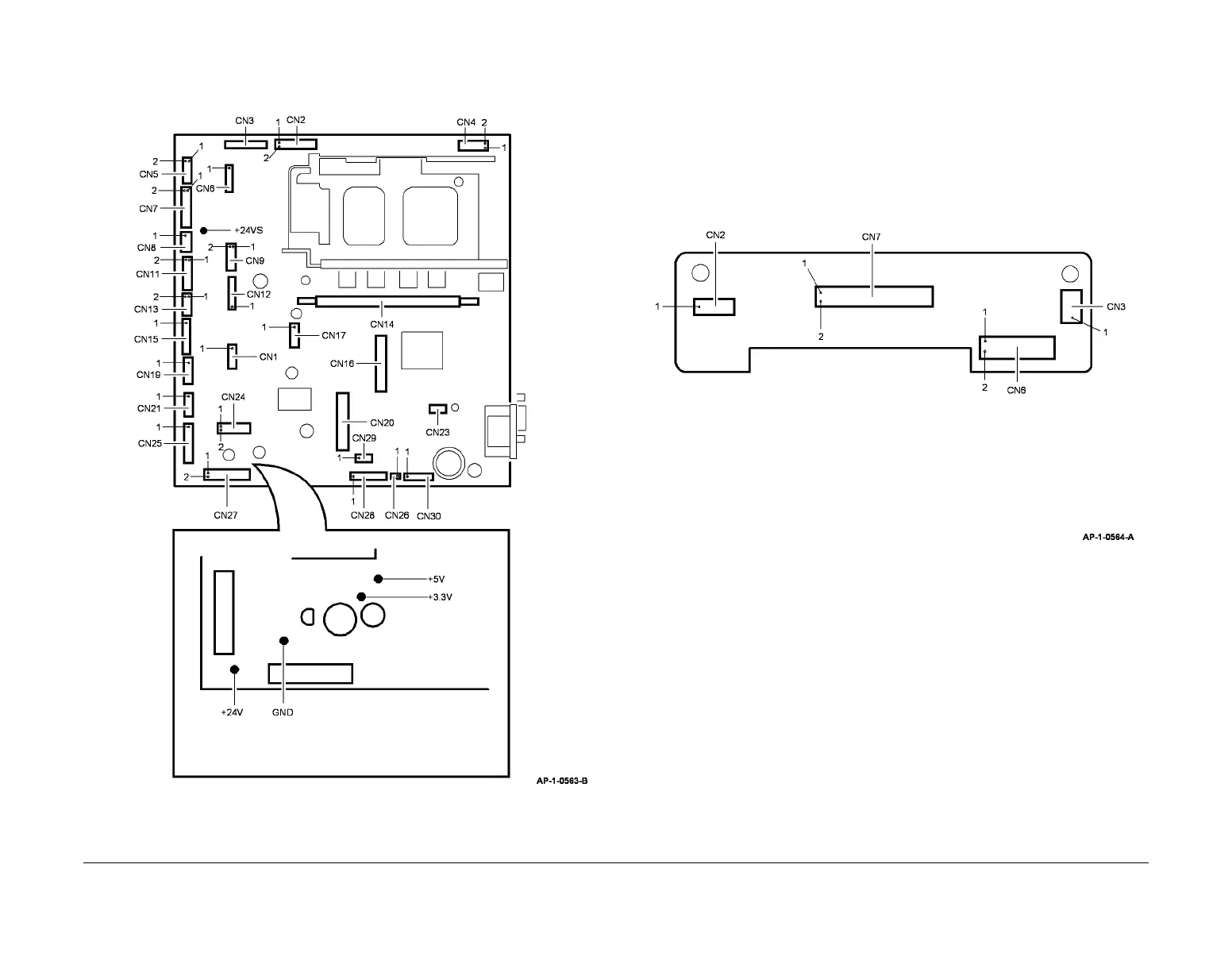

Main PWB (4150)
Location: PL 1.10 Item 1
Figure 4 Main PWB (4150)
Scanner PWB (4150)
Location: PL 14.10 Item 15
Figure 5 Scanner PWB (4150)
Test points
