PWB Connectors
Wiring Data
Tray/HCF PWB
Location: PL 7.20 Item 6 and PL 7.60 Item 7

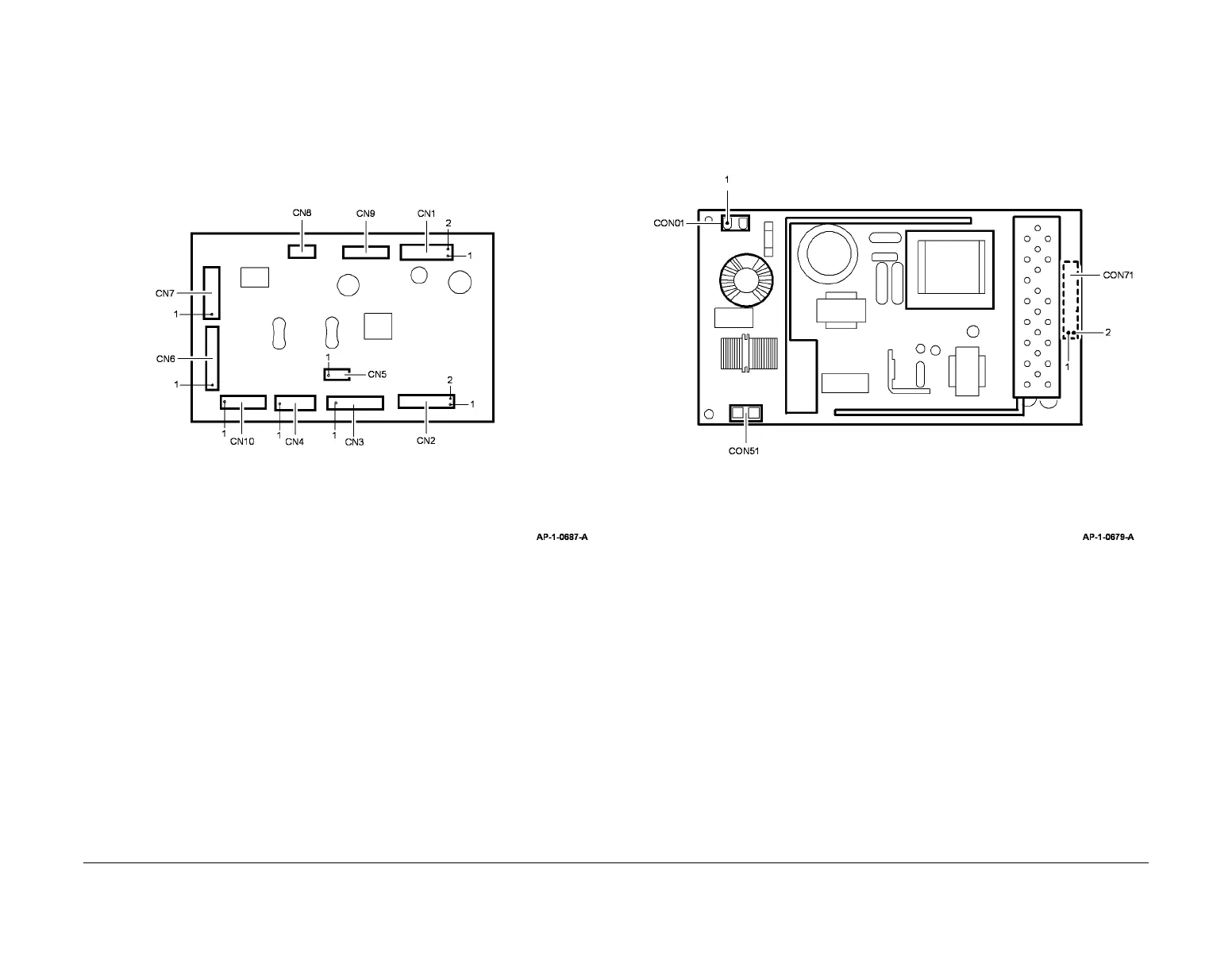

Figure 10 Tray/HCF PWB
Power Supply Unit 1 (4250/4260)
Location: PL 1.15 Item 3
Figure 11 Power supply unit 1 (4250/4260)
