Xerox WorkCentre 7132 System Administration Guide 13
2 Product Overview
This chapter gives an overview of the features and functions of the machine and
enables familiarity with the device network installation.
Detailed information is provided in the following sections.
Machine Components – page 13
Services and Features – page 16
Power On/Off – page 17
Cabling – page 18
Modes – page 19
System Controls – page 32
System Settings – page 33
Resident Fonts – page 37
Machine Components

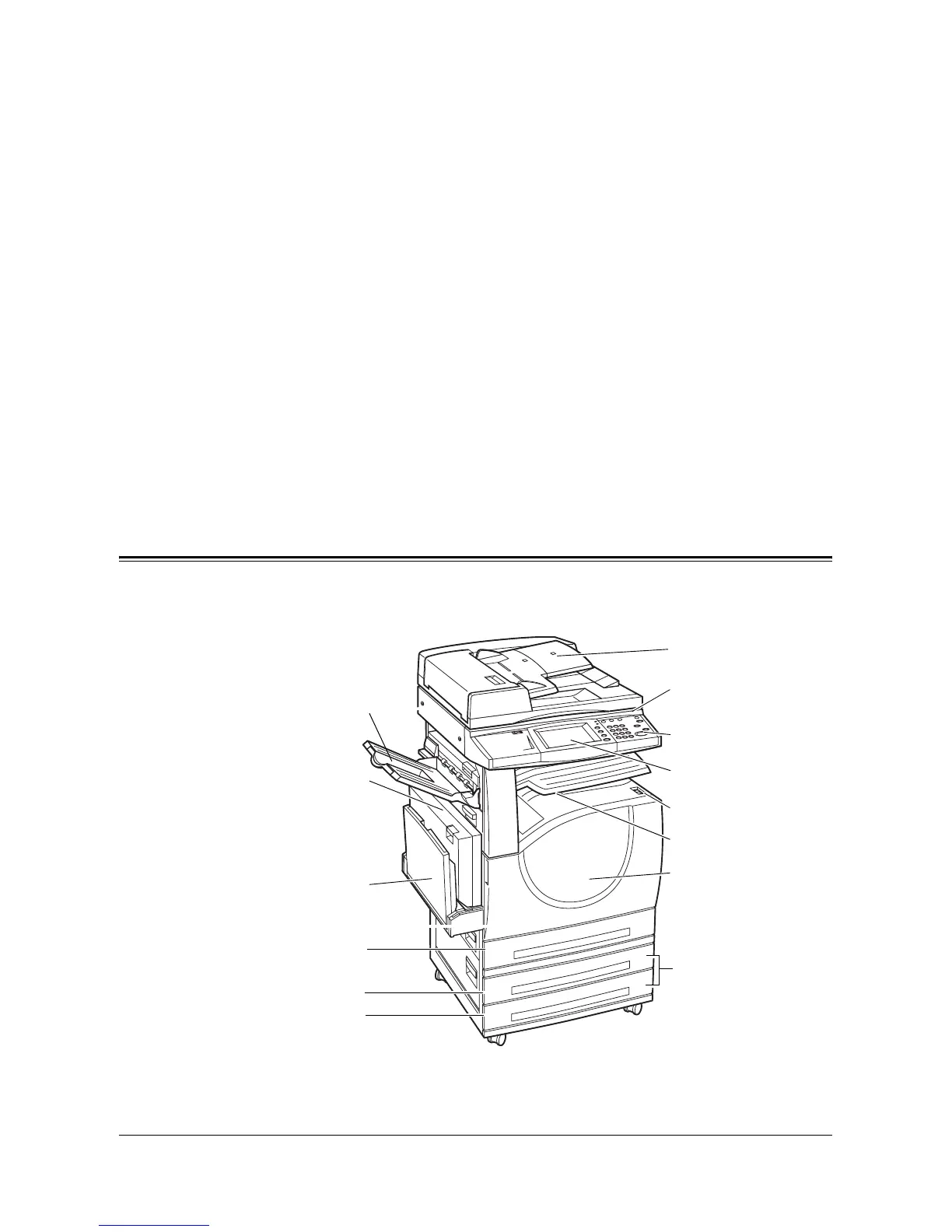

The following diagrams show the standard and optional components of the machine.
Configuration may vary depending on the model.
Document Feeder
(Optional)
Document Glass
(under the Document Feeder
)
Control Panel
Touch Screen
On / Off Switch
Center Output Tray
(Exit 2 Tray)
Front Cover
Tray 5 (Bypass Tray)
Duplex Module
Two Tray Module (Optional)
Tray 2
Tray 3
Tray 1
Side Tray
