ZCU106 Board User Guide 52
UG1244 (v1.0) March 28, 2018 www.xilinx.com
Chapter 3: Board Component Descriptions
Programmable User MGT Clock
[Figure 2-1, callout 10]
The ZCU106 board has a programmable low-jitter 3.3V LVDS SI570 differential oscillator
(U56) connected to a 1-to-2 SI53340 clock driver (U51). On power up, the user clock
defaults to an output frequency of 156.250 MHz. User applications can change the output
frequency within the range of 10 MHz to 810 MHz through an I2C interface. Power cycling
the ZCU106 board reverts this user clock to the default frequency of 156.250 MHz.
This oscillator can be reprogrammed from MSP430 system controller U41 (see TI MSP430
System Controller, page 116 for more information).
• Programmable oscillator: Silicon Labs Si570BAB000544DG (10 MHz-810 MHz,
156.250 MHz default)
• LVDS differential output
• Total stability: 61.5 ppm

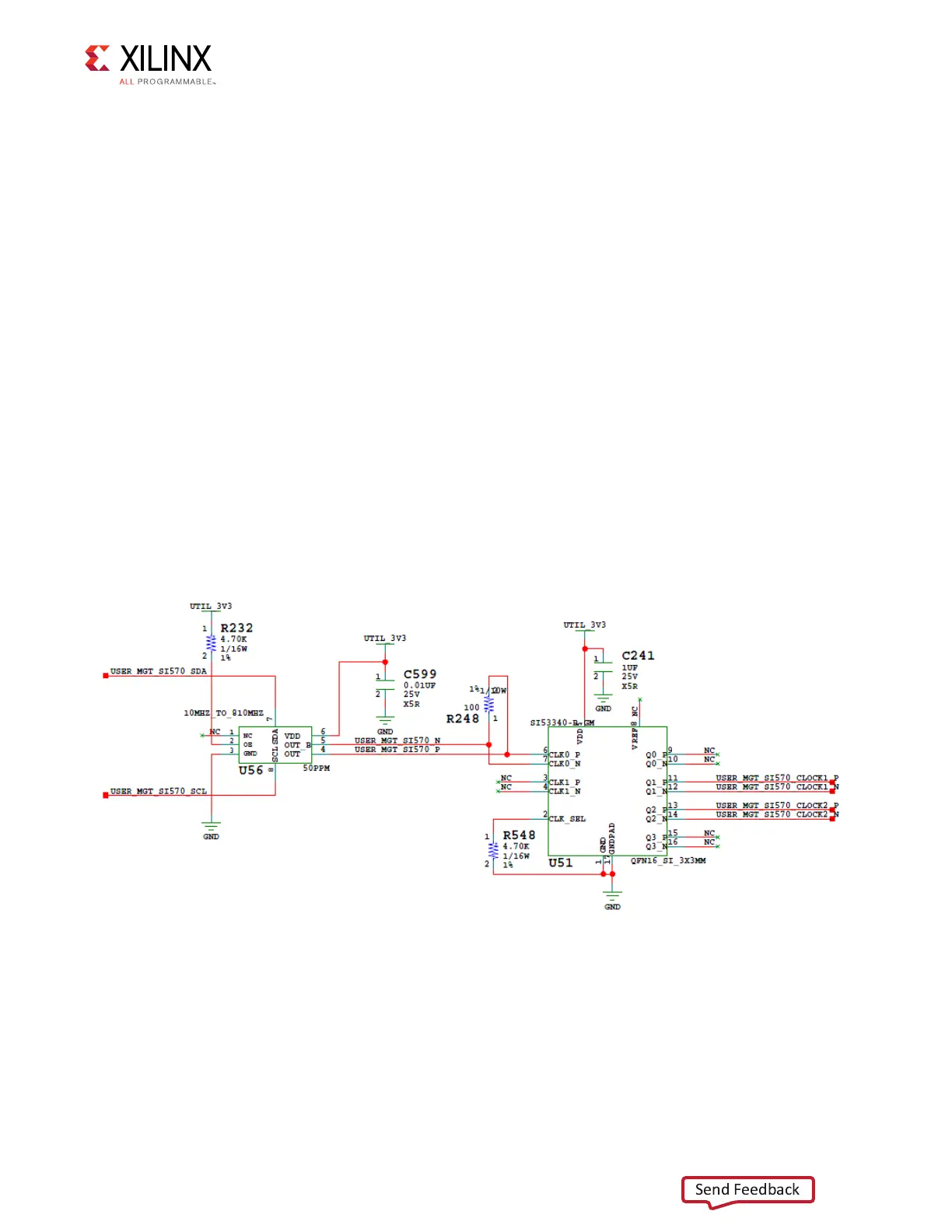

The user clock MGT circuit is shown in Figure 3-10. The Silicon Labs Si570 and Si53340 data
sheets are available on the Silicon Labs website [Ref 19].
X-Ref Target - Figure 3-10
Figure 3-10: Programmable User MGT Clock
