MOTIF XS6/MOTIF XS7/MOTIF XS8
24
[30]: Push button, x1 M (Black)
( プッシュボタン (M)( ))
[40]: Push button, x3 MR (Gray)
( プッシュボタン (MR)( ))
[80]: Push button, x4 MR (Gray)
( プッシュボタン (MR)( ))
[50]: Push button, x2 MR (Gray)
( プッシュボタン (MR)( ))
[60]: Push button, x1 MR (Gray)
( プッシュボタン (MR)( ))
[90]: Push button, x4 MR (Black)
( プッシュボタン (MR)( ))
[60]: Push button, x1 MR (Gray)
( プッシュボタン (MR)( ))
[70]: Push button, x2 M (Gray)
( プッシュボタン (M)( ))
[20]: Push button, x1 M (Gray)
( プッシュボタン (M)( ))
[20]: Push button, x1 M (Gray)
( プッシュボタン (M)( ))
[60]: Push button, x1 MR (Gray)
( プッシュボタン (MR)( ))
• PNC circuit board
(PNC シート)
Encoder knob
(エンコーダーツマミ)
11. PNC Circuit Board
(Time required: About 6 minutes)
11-1 Remove the encoder knob. (Fig. 7, 10)
11-2 Remove the side panel R and side panel L.
(See procedure 1.)
11-3 Remove the control panel assembly.
(See procedure 2.)
11-4 Remove the EMC cover. (See procedure 7-3.)
11-5 Remove the two (2) each screws marked [110].
The two (2) PCB angles 1 (B) can then be
removed. (Fig. 7)
11-6 Remove the five (5) screws marked [90B]. The
PNC circuit board can then be removed. (Fig. 9)
* When installing the PNC circuit board, fit the
holes to the positioning pins C fi rst, and then
tighten the screws. (Fig. 9)
* The PNC circuit board contains the following
buttons. (Photo 5)
• [20]: Push button, M (Gray) 4 pcs.
• [30]: Push button, M (Black) 4 pcs.
• [40]: Push button, MR (Gray) 2 pcs.
• [50]: Push button, MR (Gray) 2 pcs.
• [60]: Push button, MR (Gray) 8 pcs.
• [70]: Push button, M (Gray) 1 pc.
• [80]: Push button, MR (Gray) 6 pcs.
• [90]: Push button, MR (Black) 4 pcs.
11. PNC シート(所要時間:約 6 分)
11-1 エンコーダーツマミを外します。(図 7、図 10)
11-2 サイドパネル R とサイドパネル L を外します。
(1 項参照)
11-3 コンパネ Assy を外します。(2 項参照)
11-4 EMC カバーを外します。(7-3 項参照)
11-5 [110] 2 本ずつを外して、PCB
1(B) 2 個外します。(図 7)
11-6 [90B] のネ 5 本を外して、PNC シートを外しま
す。(図 9)
※ PNC シートを取り付けるときは、位置決めピン C
に差し込んでからネジ止めしてください。(図 9)
※ PNC シートには下記のボタンがついています。
(写真 5)
・[20]:プッシュボタン (M)( ) 4
・[30]:プッシュボタン (M)( ) 4
・[40]:プッシュボタン (MR)( ) 2
・[50]:プッシュボタン (MR)( ) 2
・[60]:プッシュボタン (MR)( ) 8
・[70]:プッシュボタン (M)( ) 1
・[80]:プッシュボタン (MR)( ) 6
・[90]:プッシュボタン (MR)( ) 4

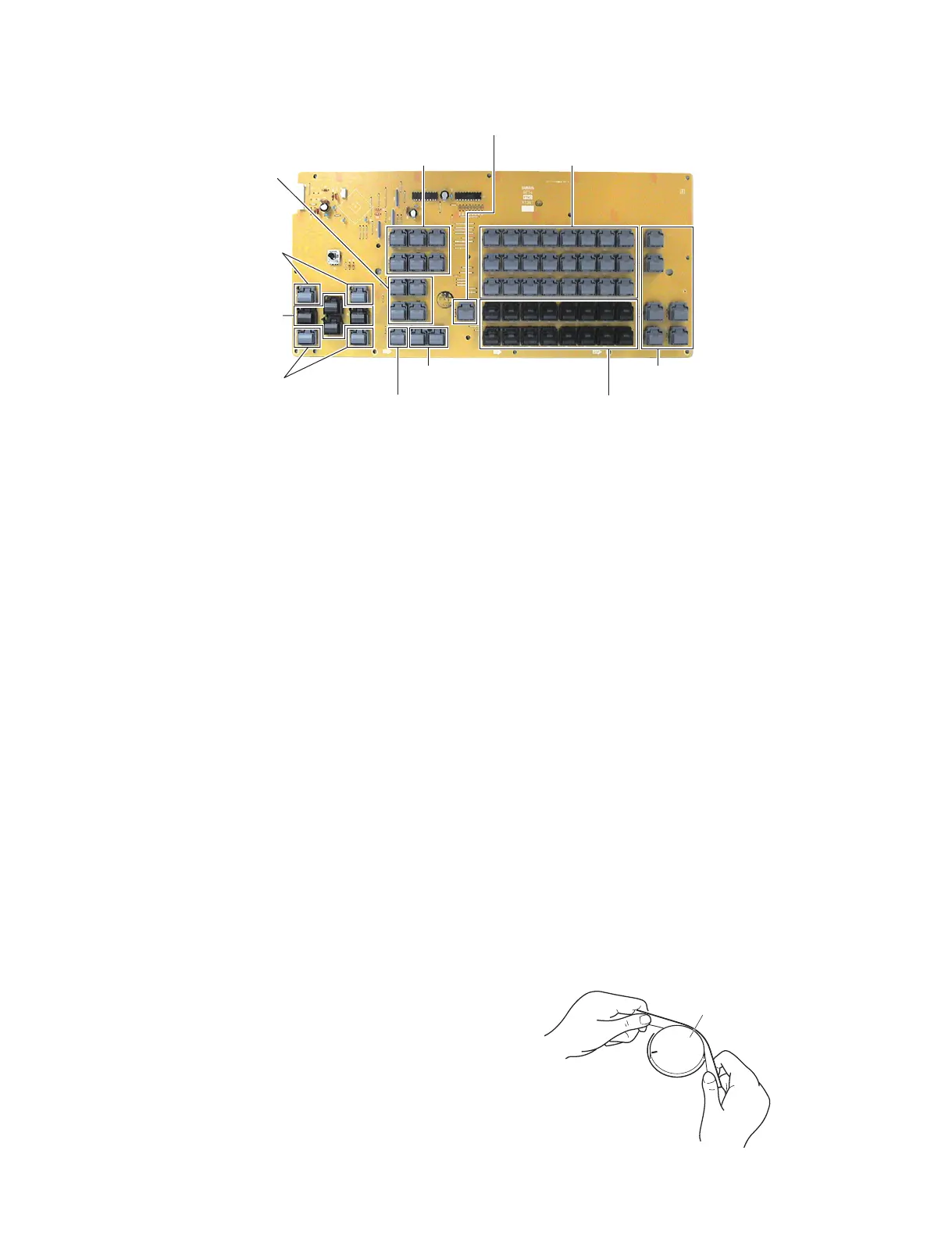

Photo5( 写真 5)
Fig.10( 10)
