Yamatake Corporation Operation of the Transmitter
ST3000 Smart Transmitter Series 900 Electronic Differential Pressure/Pressure Transmitter 5-25
5-3-3-3 Stopping Measurement
Procedure
How to stop the transmitter
CAUTION
• If you plan to leave the transmitter OFF for a long period, drain process
fluid from the connecting pipe and the pressure receiving part.
• Leave the equalizer valve open.
Step Description
1 Turn off the transmitter.
2 Operate the 3-way manifold valve using this procedure:
1. Close the low-pressure side stop valve.
2. Open the equalizer valve.
3. Close the high-pressure side stop valve.
3 Close the main valve. Refer to "Figure 4-14 Open Tank -- Piping Exam-
ple".

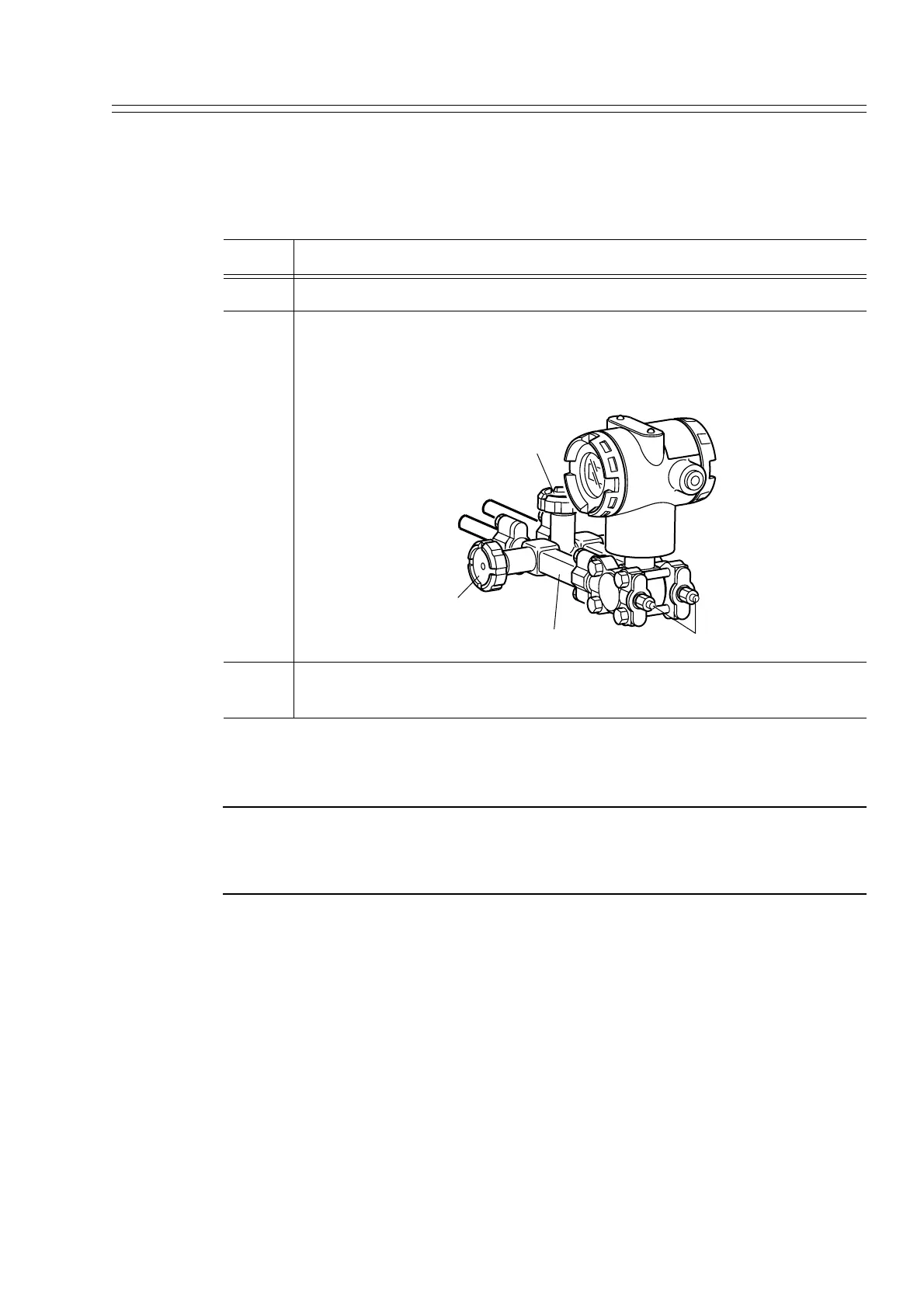

(Equalizer valve)
High-pressure side
Low-pressure side
Low-pressure side
stop valve
3-way manifold valve
Vent / Drain plug
( )
