Maintenance and Troubleshooting Yamatake Corporation
7-10 ST3000 Smart Transmitter Series 900 Electronic Differential Pressure/Pressure Transmitter
7-3-2 :Mount Center Body Cover and Adapter Flange
Dismount covers
Remove the four sets of bolts & nuts, shown in the illustration.
Remarks:
After dismounting, handle the center body cover carefully. Avoid damage to the dia-
phragm.

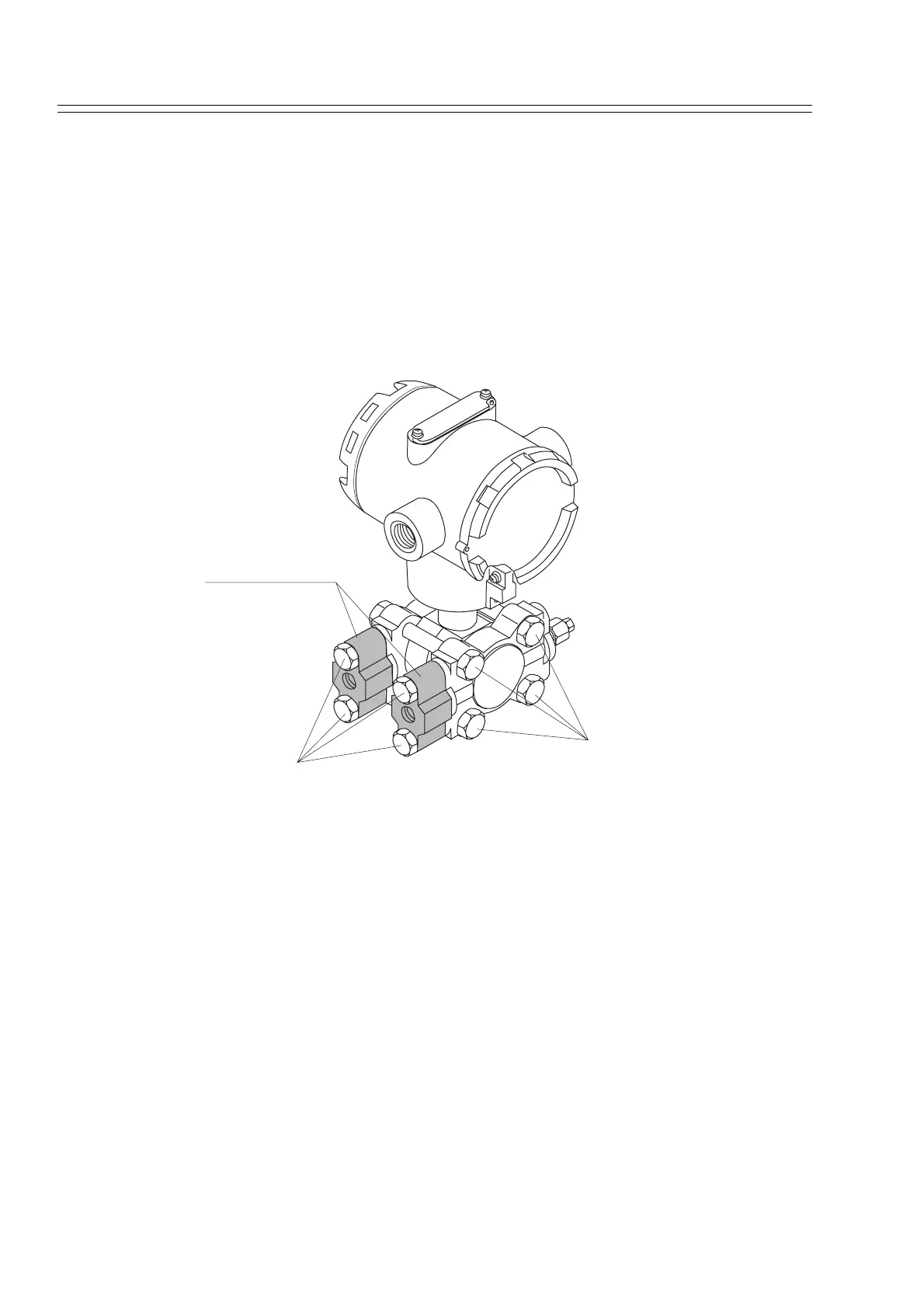

Figure 7-2 Center Body Cover Fixing Bolts
Mount covers and adapter flanges
When mounting the centers body cover and adapter flanges, tighten the bolts to the
following torque.
Replace the seal gasket, if it is damaged.
Adapter flange
Bolt / Nut
Bolt / Nut
