Yamatake Corporation Installation
ST3000 Smart Transmitter Series 900 Electronic Differential Pressure/Pressure Transmitter 4-3

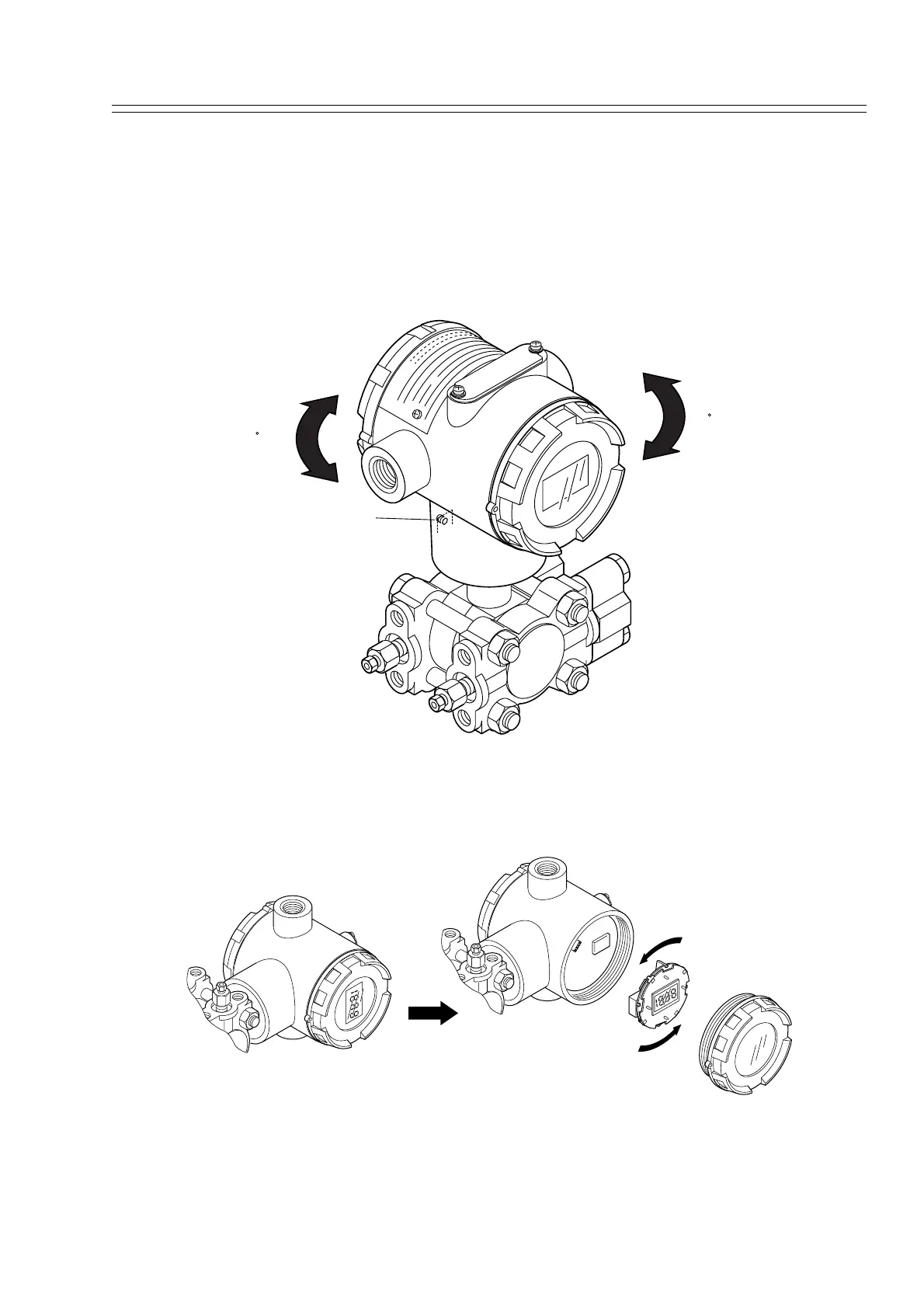

Methods of changing direction of indicator after mounted are shown below.
a) Rotate electronics housing 90° horizontally.
Loosen 3 mm set screw on outside neck of transmitter. Rotate electronics housing in a
maximum of 90 degree increments (left or right) from the center to a position you
require and tighten the set screw.
Figure 4-2
b) Rotate digital display module
Figure 4-3
90 Max
90 Max
Set screw
(3mm)
