YASKAWA Varispeed L7 - Page 17

1-6
 Inverters of 22 kW or More

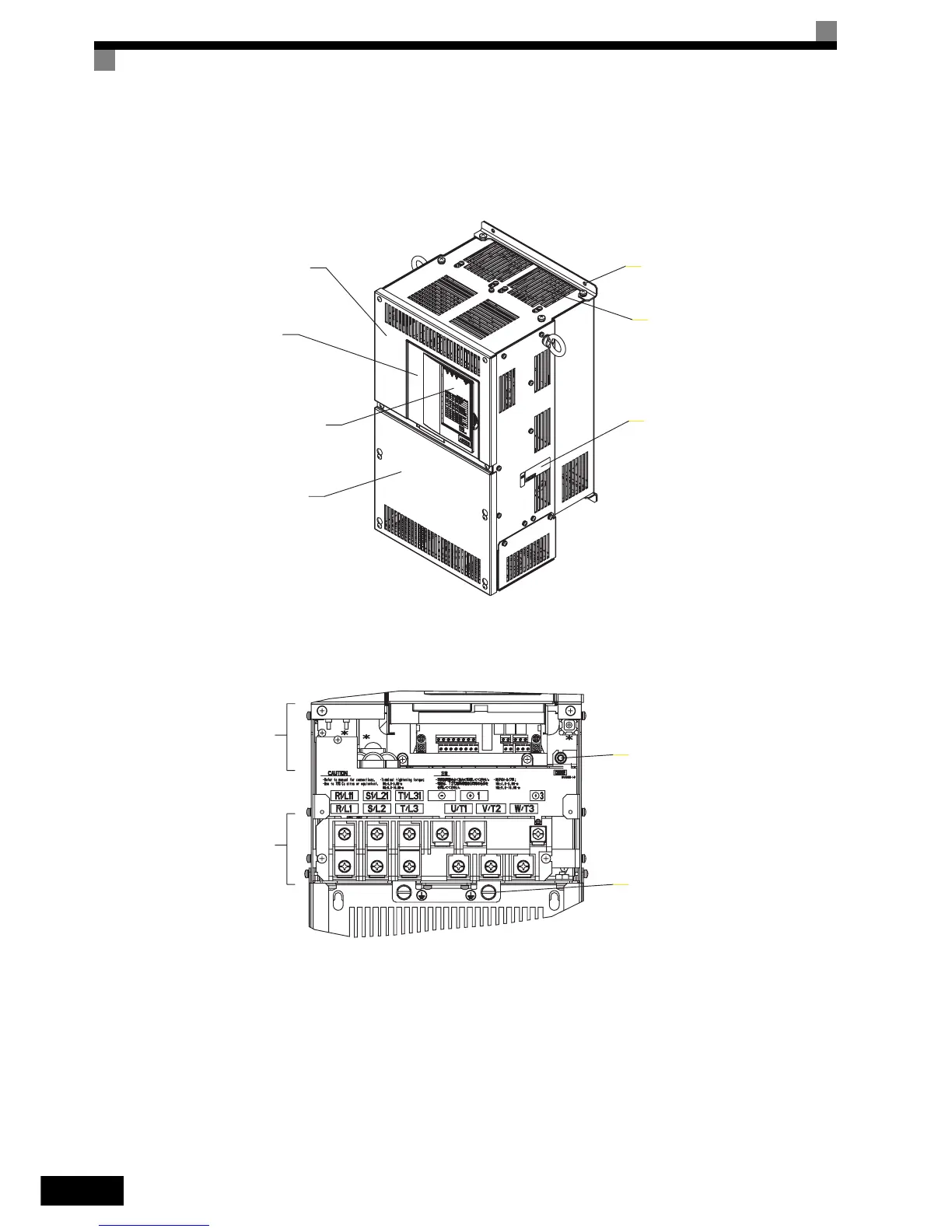

The external appearance and component names of the Inverter are shown in Fig 1.6. The Inverter with the ter-
minal cover removed is shown in Fig 1.7.
Fig 1.6 Inverter Appearance (22 kW or More)
Fig 1.7 Terminal Arrangement (22 kW or More)
Front cover
Inveter cover
Digital Operator
Terminal cover
Nameplate
Cooling fan
Mounting holes
Control
circuit
terminals
Charge indicator
Ground terminals
Main
circuit
terminals
