3-12

 Autotuning Mode

Autotuning automatically measures and sets the required motor data in order to achieve the maximum perfor-

mance. Always perform autotuning before starting operation when using the vector control modes.

When V/f control has been selected, only stationary autotuning for line-to-line resistance can be selected.

When the motor cannot be disconnected from the load, and Open Loop or Closed Loop Vector Control shall

be used perform stationary autotuning.

Example of Operation

Enter the motor rated output power (in kW), rated voltage, rated current, rated frequency, rated speed and

number of poles specified on the nameplate of the motor and then press the RUN key. The motor is automati-

cally run and the measured motor data are set in the E2- parameters.

Always set the above items. Otherwise autotuning cannot be started, e.g. it cannot be started from the motor

rated voltage input display.

A parameter can be changed from the setting displays using the Increment, Decrement, and Shift/RESET

keys. The parameter will be saved when the DATA/ENTER key is pressed.

The following example shows autotuning for Open Loop Vector Control.

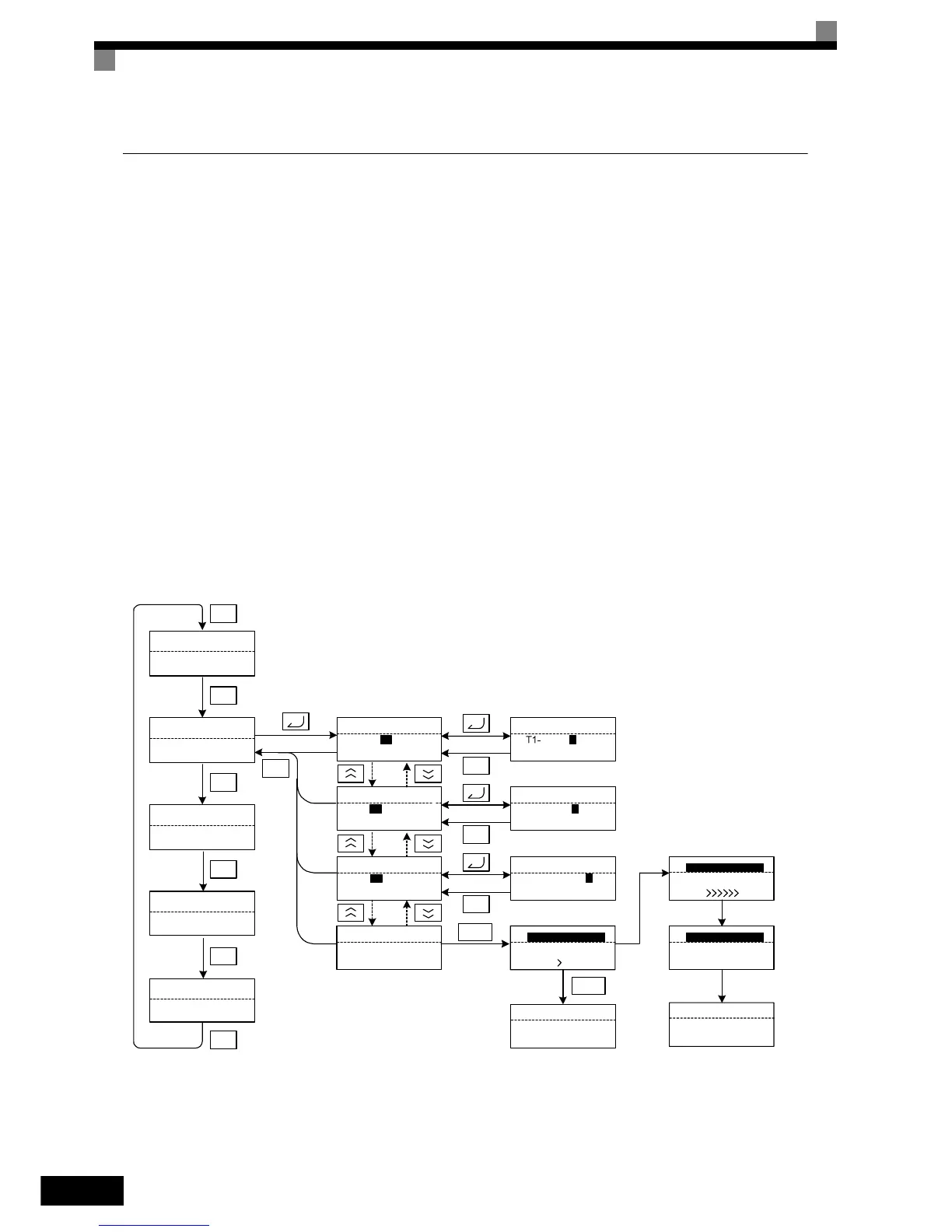

Fig 3.8 Operation in Autotuning Mode

If a fault occurs during autotuning, refer to Chapter 6, Troubleshooting .

START GOAL

** Main Menu **

-DRIVE-

Operation

** Main Menu **

-QUICK-

Quick Setting

** Main Menu **

-ADV-

Programming

** Main Menu **

-VERIFY-

Modified Consts

** Main Menu **

-A.TUNE-

Auto-Tuning

Monitor Display Setting DisplayMode Selection Display

Tuning Mode Sel

-A.TUNE-

T1- 01 =0 *0*

Auto-Tuning

-A.TUNE-

Press RUN key

Tuning Ready ?

Tune Proceeding

-A.TUNE-

48.0Hz/10.5A

Standard Tuning

Tuning Mode Sel

-A.TUNE-

01 = 0*0*

Rated Frequency

-A.TUNE-

T1- 05 = 60.0Hz

Number of Poles

-A.TUNE-

T1- 06 = 4

Rated Frequency

-A.TUNE-

T1-05

060.0Hz

Number of Poles

-A.TUNE-

T1-06 = 04

Rdy

Tune Aborted

-A.TUNE-

STOP key

The display will

automatically

change depending

on the status of

autotuning.

Standard Tuning

START GOAL

Tune Proceeding

-A.TUNE-

48.0Hz/10.5A

Tune Successful

-A.TUNE-

Tune Successful

Tune Proceeding

-A.TUNE-

"0"

0.0Hz/0.0A

ESC

RUN

STOP

(0.0~400.0)

"60.0Hz"

(0.0~400.0)

"60.0Hz"

(2~48)

"4"

(2~48)

"4"
