Digital Operator
3-11
3
Verify Mode
The Verify mode is used to display any parameters that have been changed from their default settings in a pro-
gramming mode or by autotuning. “None” will be displayed if no settings have been changed.
The parameter A1-02 is the only parameter from the A1- group, which will be displayed in the modified
contsant list if it has been changed before. The other parameters will not be diplayed, even if they are different
from the default setting.
In the verify mode, the same procedures can be used to change settings as they are used in the programming
mode. Use the Increment, Decrement, and Shift/RESET keys to change a setting. When the DATA/ENTER
key is pressed the parameter setting are written and the display returns to the Monitor display.
Example Operations
In the example below the following settings have been changed from their default settings:
b1-01 (Reference Selection)
C1-01 (Acceleration Time 1)
E1-01 (Input Voltage Setting)
E2-01 (Motor Rated Current).

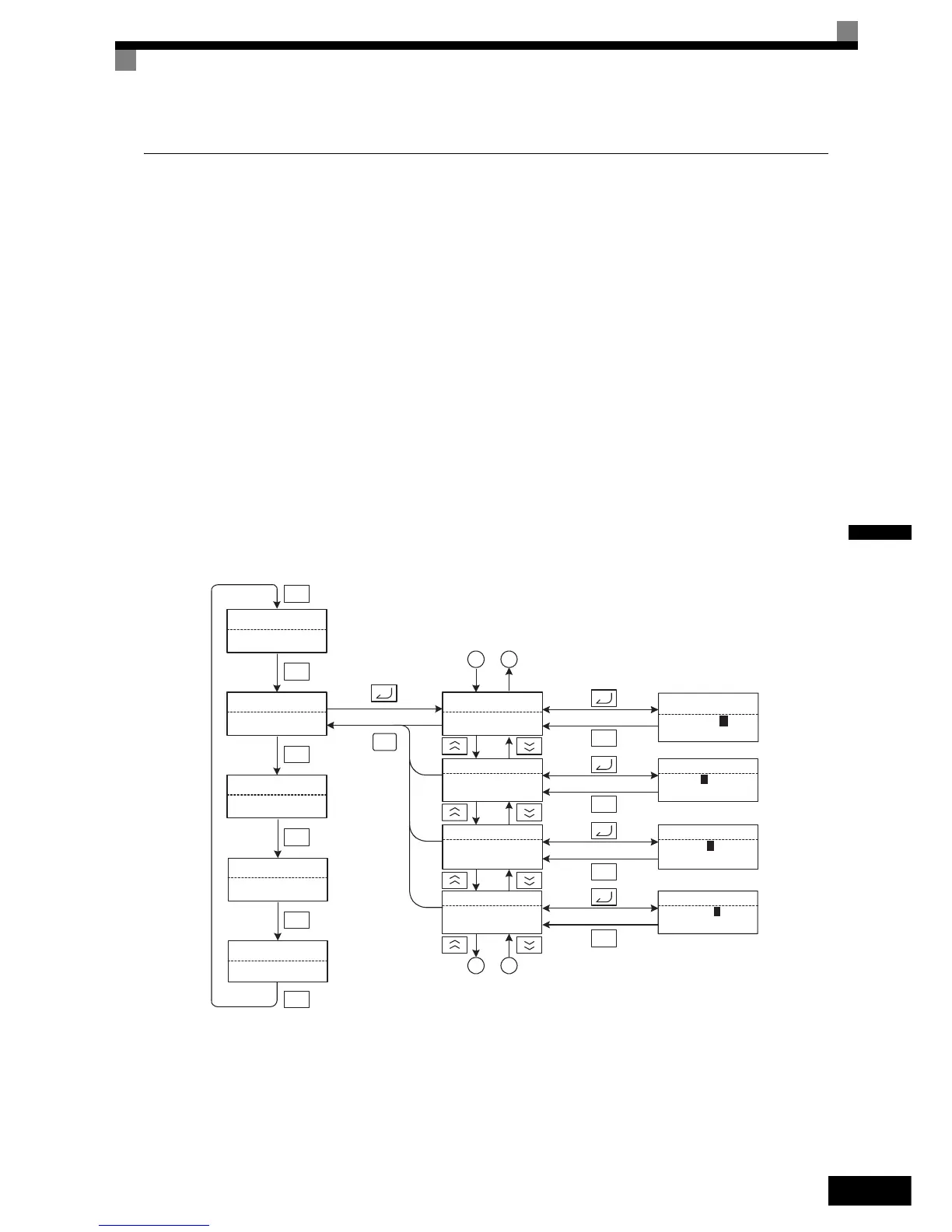

Fig 3.7 Operations in Verify Mode
** Main Menu **
-DRIVE-
Operation
** Main Menu **
-QUICK-
Quick Setting
** Main Menu **
-ADV-
Programming
** Main Menu **
-VERIFY-
Modified Consts
** Main Menu **
-A.TUNE-
Auto-Tuning
Monitor Display Setting DisplayMode Selection Display
Reference Source
-VERIFY-
b1-01=0 *0*
Terminals
ESC
Accel Time 1
-VERIFY-
C1-01=200.0sec
A B
A B
Reference Source
-VERIFY-
b1-01= 0 *0*
Terminals
Input Voltage
-VERIFY-
E1-01=190VAC
Motor Rated FLA
-VERIFY-
E2-01= 2.00A
Motor Rated FLA
-VERIFY-
E2-01= 2.00A
Input Voltage
-VERIFY-
E1-01= 190VAC
Accel Time 1
-VERIFY-
C1-01= 0
200.0sec
"1"
"1"
MENU
ESC
MENU
MENU
MENU
MENU
MENU
ESC
ESC
ESC
(0.0 ~ 6000.0)
"3.0 sec"
(0.0 ~ 6000.0)
"3.0 sec"
(155~255)
"200VAC"
(155~255)
"200VAC"
(0.32~6.40)
"1.90A"
(0.32~6.40)
"1.90A"
