Digital Operator
3-9
3
Advanced Programming Mode
In advanced programming mode all Inverter parameters can be monitored and set.
A parameter can be changed from the setting displays using the Increment, Decrement, and Shift/RESET
keys. The parameter will be saved and the display will return to monitor display when the DATA/ENTER key
is pressed after changing the setting.
Refer to Chapter 4, User Parameters for details on the parameters.
Example Operations

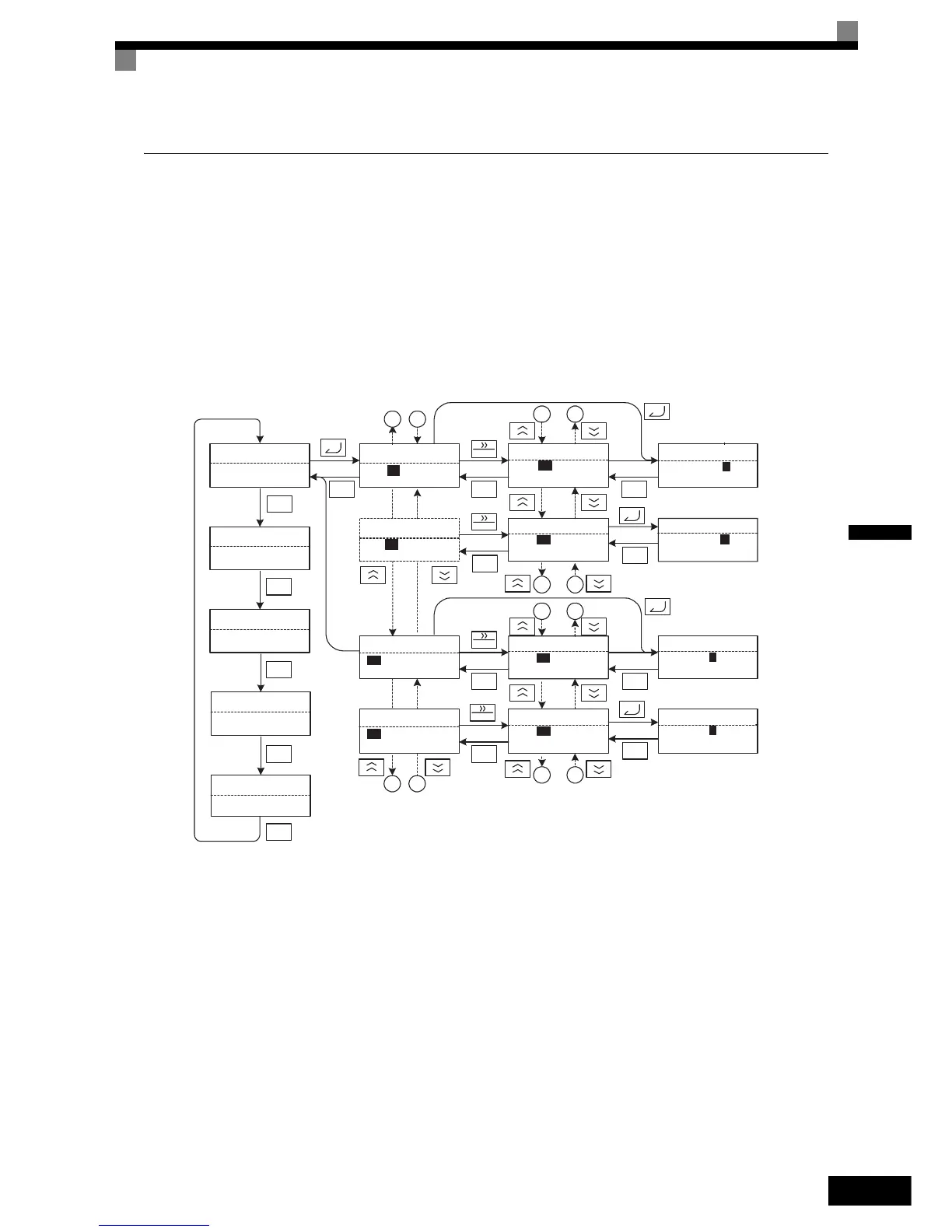

Example key operations in advanced programming mode are shown in the following figure.
Fig 3.6 Operations in Advanced Programming Mode
** Main Menu **
-DRIVE-
Operation
** Main Menu **
-QUICK-
Quick Setting
** Main Menu **
-ADV-
Programming
** Main Menu **
-VERIFY-
Modified Consts
** Main Menu **
-A.TUNE-
Auto-Tuning
Initialization
-ADV-
A1-00=0
Select Language
Select Language
-ADV-
English
Monitor Display Setting DisplayMode Selection Display
Control Method
-ADV-
A1- 02 = 3
Close loop vector
*0*
*3*
1 2
1 2
3 4
3 4
A B
A B
Initialization
-ADV-
A1-02 =3
Control Method
ESC
MENU
MENU
MENU
MENU
MENU
ESC
ESC
ESC
ESC
ESCESC
ESC
ESC
RESET
RESET
RESET
RESET
"0"
Select Language
-ADV-
English
*0*
"0"
"3"
Control Method
-ADV-
A1-02 = 3
Close loop vector
*3*
"3"
A1- 00 = 0
A1-02 = 0
Accel/Decel
-ADV-
C1- 01 = 3.00 sec
Accel Time 1
Accel Time 1
-ADV-
C1- 01 = 3.00 sec
(0.00 ~ 600.00)
"3.00sec"
Accel Time 1
-ADV-
(0.00 ~ 600.00)
"3.00sec".
C1- 01 = 003.0 sec
Accel/Decel
-ADV-
C1- 02 = 3.00 sec
Accel Time 1
Accel Time 2
-ADV-
(0.00 ~ 600.00)
"3.00sec"
C1- 02 = 3.00 sec
Accel Time 2
-ADV-
(0.00 ~ 600.00)
"3.00sec"
C1- 02 = 003.0 sec
