Terminal Block Configuration
2-5
2
Terminal Block Configuration
The terminal arrangements are shown in Fig 2.3 and Fig 2.4.

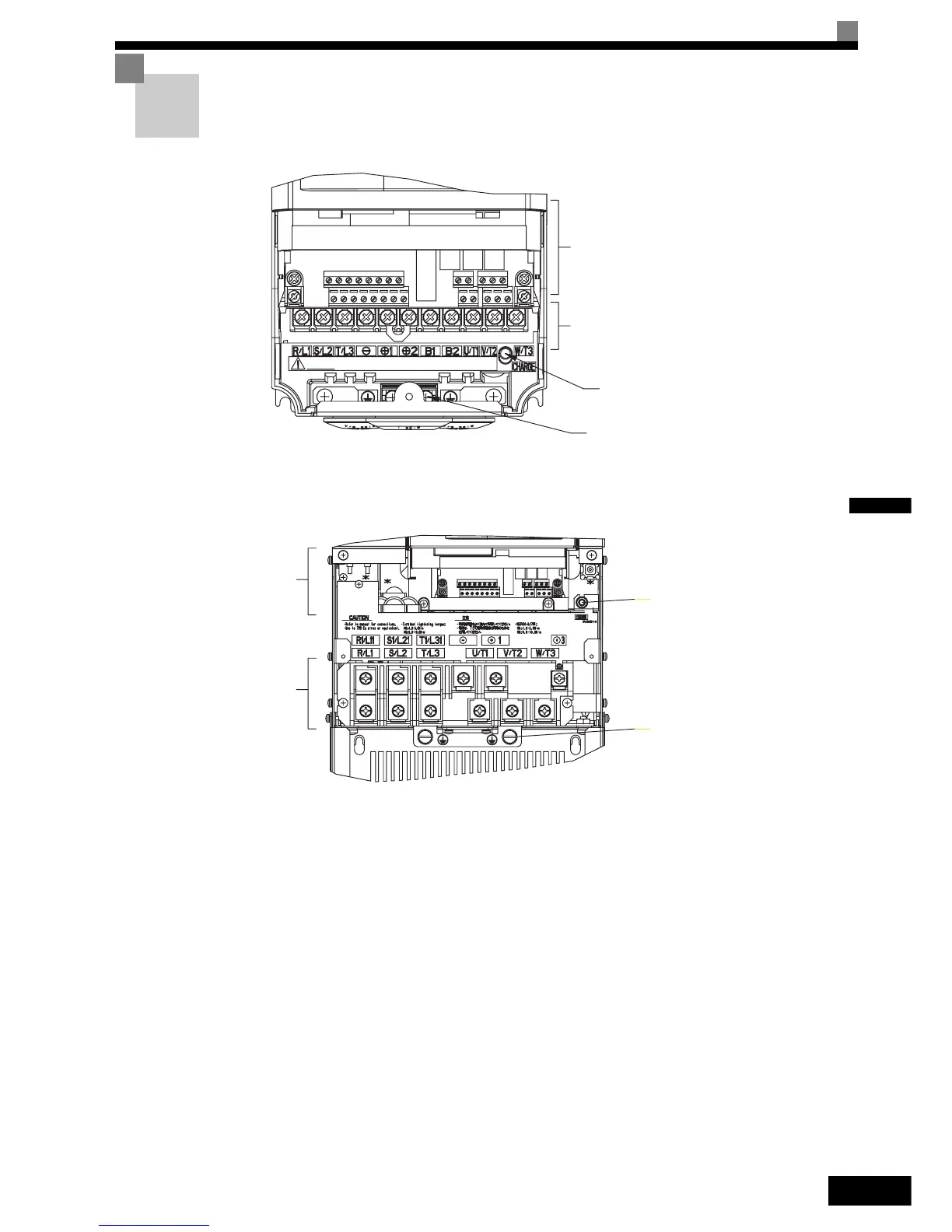

Fig 2.3 Terminal Arrangement (200 V/400 V Class Inverter of 3.7 kW)
Fig 2.4 Terminal Arrangement (200 V/400 V Class Inverter of 22 kW or more)
Control circuit terminals
Main circuit terminals
Ground terminal
Charge indicator
Control
circuit
terminals
Charge indicator
Ground terminals
Main
circuit
terminals
