YASKAWA Varispeed L7 User Manual

Input Terminal Functions
5-45
5
Multi-function Digital Inputs (H1-01 to H1-05)
Multifunction Outputs (H2-01 to H2-03)
Setting Example
When the timer function input ON time is longer than the value set in b4-01, the timer output function is
turned ON. When the timer function input OFF time is longer than the value set in b4-02, the timer output
function is turned OFF. An example of timer function operation is given in the following diagram.

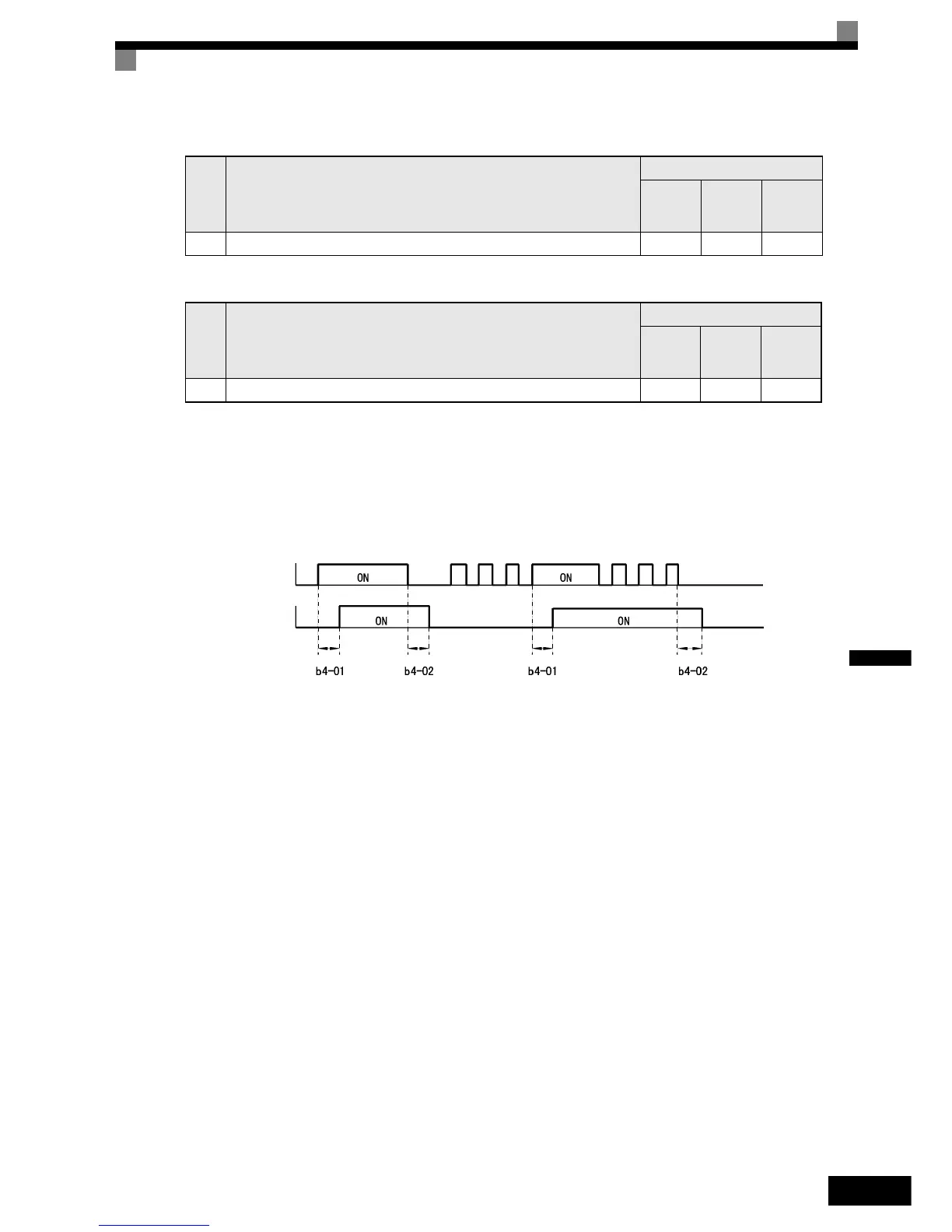

Fig 5.20 Timer Function Operation Example
Set
Val ue
Function
Control Methods
V/f
Open
Loop
Ve ct or
Closed
Loop
Ve ct or
18 Timer function input Yes Yes Yes
Set
Val ue
Function
Control Methods
V/f
Open
Loop
Vector
Closed
Loop
Vector
12 Timer function output Yes Yes Yes
Timer function input
Timer function output
