Operations for Changing the Displayed Contents
6
Writing Messages <Operation Mode>
You cannot write messages if acquisition to the internal memory is stopped.
Procedure
1. Press the FUNC key.
A soft key menu is displayed at the bottom of the display.
2. Press the [Message] soft key to display a list of messages.
A soft key menu used to select the message appears.
3. Press the soft key corresponding to the message you wish to write.

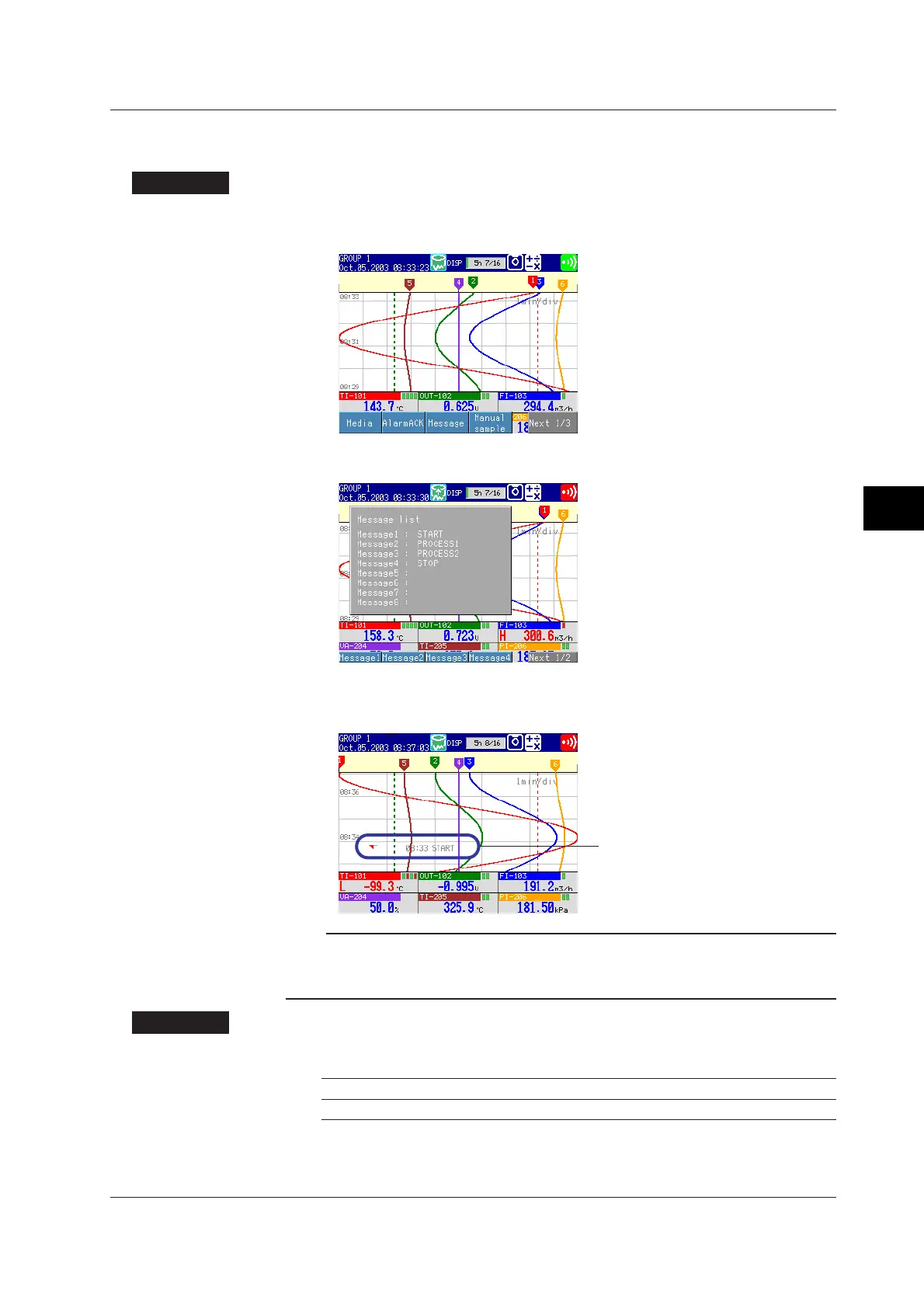

A message mark, time, and the message itself are displayed on the trend
display, and the information is written to the internal memory.
Message mark, time, message
Note
This operation can be assigned to the USER key. If it is, the message is written simply by
pressing a single key. For the procedure in assigning a function to the USER key, see
section 9.1.
Explanation
Displayed Colors of the Message
The message colors on the trend screen are shown below. They cannot be changed.
Message Number 1 2 3 4 5 6 7 8
Displayed Color Red Green Blue Blue violet Brown Orange Yellow-green Light blue
6.4 Writing Messages on the Trend Screen
To Next Page
