YOKOGAWA FX103 User Manual

IM 04L20A01-01E
1-25
1
Explanation of Functions

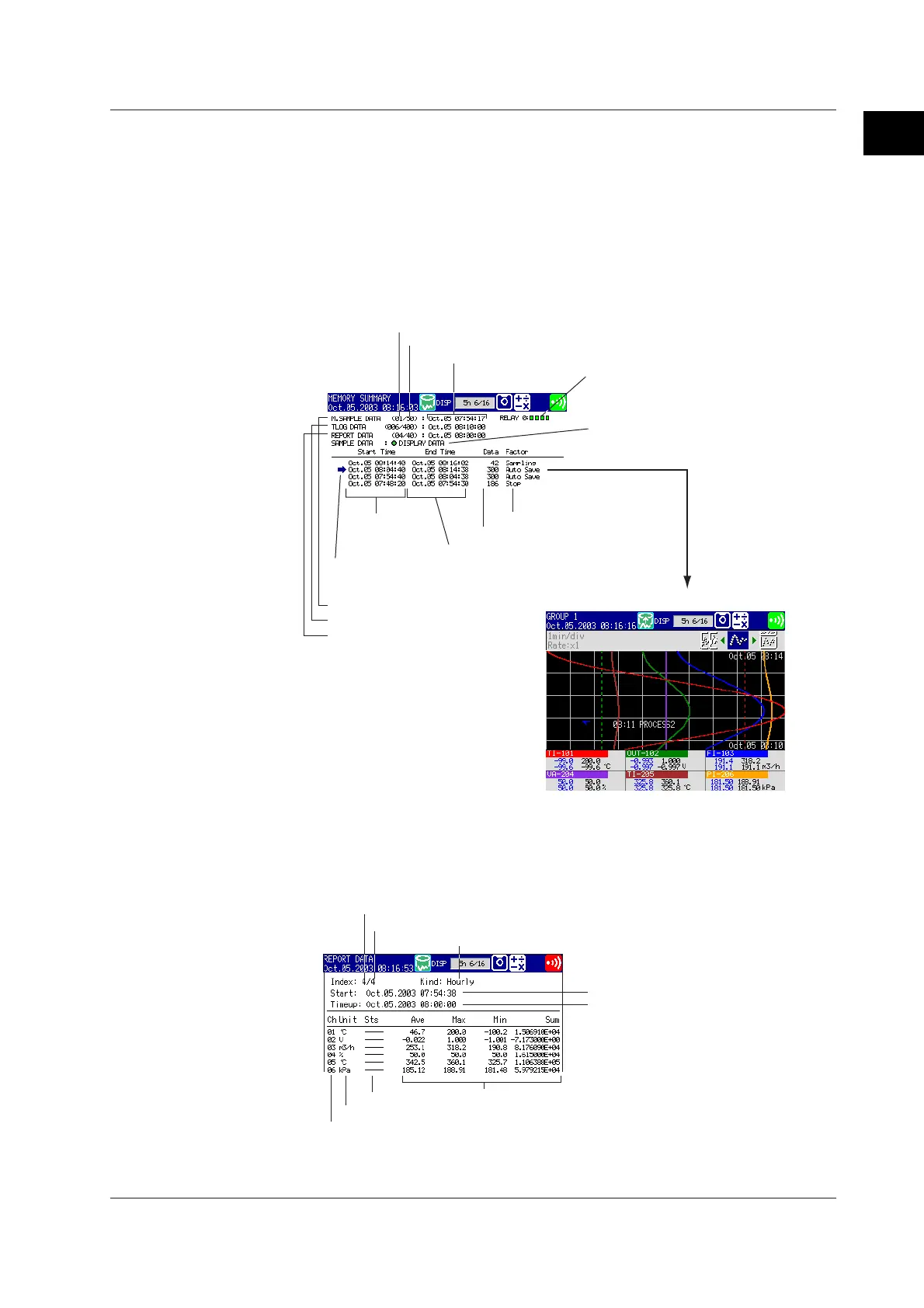

Memory Summary
The information pertaining to the display data and event data in the internal memory is
displayed.
• By selecting the display data or event data using the arrow keys, the historical trend
display can be recalled.
• The number of manual sampled data, TLOG data (/M1, /PM1 option), and report data
(/M1, /PM1 option) residing in the internal memory are displayed.
• For models that have the alarm output relays (/A1, /A2, /A3 option), the ON/OFF state
of the relays are also listed.
The maximum number of data sets the internal memory can hold
Date and time the last data were acquired
Date and time
data acquisition
started
Date and time data acquisition ended
Number of samplings
Cursor
(selects a file)
Sampling status
Status of alarm output relays
Red: Activated
Green: Released
Data type
(display data or event data)
Historical trend of the selected data
Number of data sets in the internal memory
Manual sampled data
TLOG data
Report data
For a description on display data and event data, see section 1.5.
For a description on the historical trend display, see page 1-26.
Report Data (/M1, /PM1 Option)
Report data residing in the internal memory can be displayed.
The index number of the report data currently displayed
The number of report data sets in the internal memory
Report type
Channel no./tag
Unit
Date and time the report started
Status of data
Date and time the report was created
Average (or instantaneous), maximum,
minimum, and sum values
For a description on report function, see section 1.6.
1.4 Display Function
