Alarm Summary
You can list up-to-date alarm information.
• The data of up to 1000 alarms can be displayed.
• You can select alarm information to access the historical trend of the display data or
event data that contains the alarm.
For operating instructions, see section 5.7.
To the historical trend display

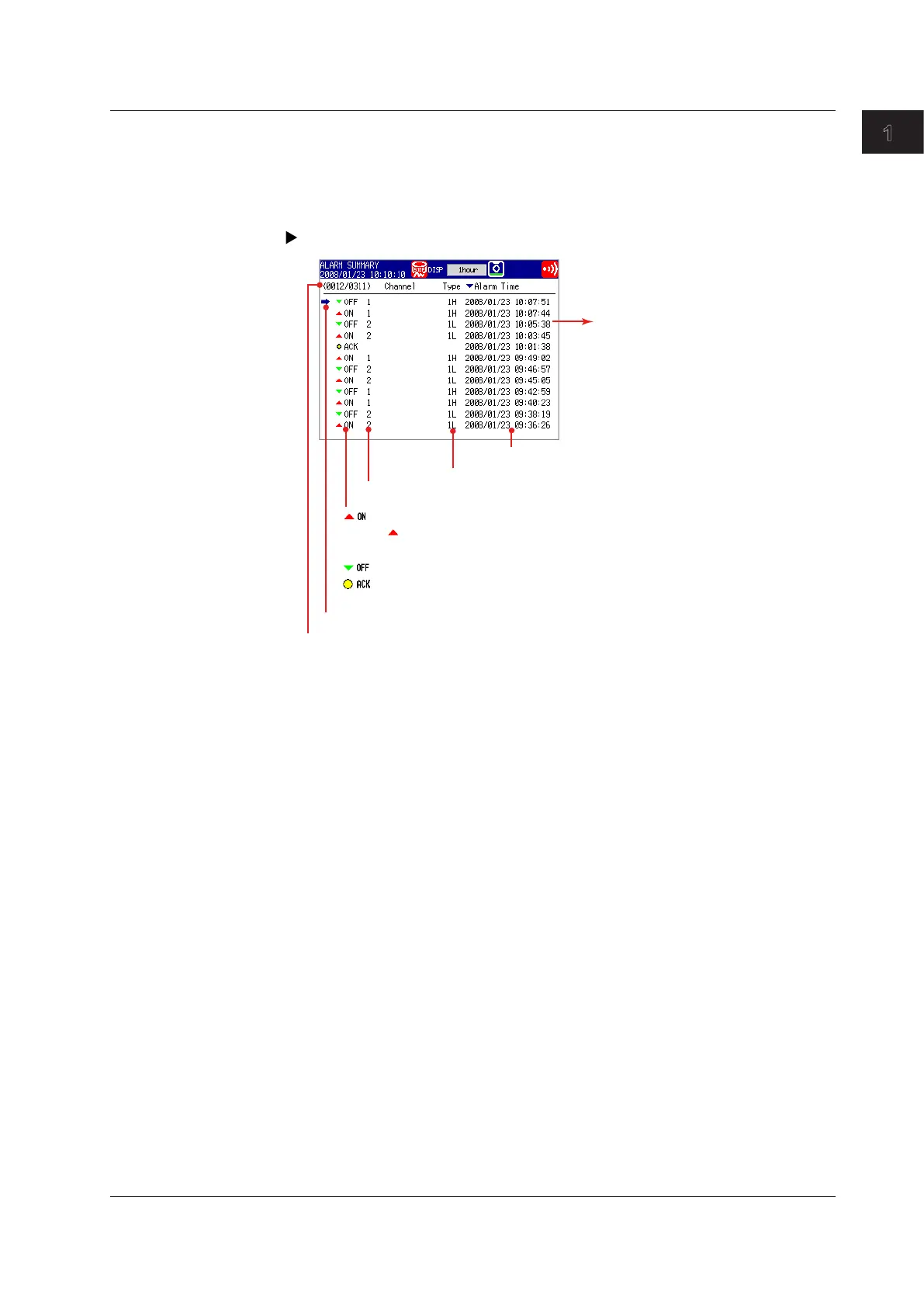

The alarm information number of the alarm on the screen’s bottom
line and the number of alarm entries in internal memory.
Cursor (selects an alarm)
: Alarm occurrence
( blinks until the AlarmACK operation is carried out if Indicator
is set to Hold.)
Channel
Alarm number (1, 2, 3, 4) and type (H, L, h, l, R, r, T, t)
Date/time of alarm occurrence/release
: Alarm release
: Alarm output release (when blinking is cleared through the
AlarmACK operation)
