YOKOGAWA SR10000 series User Manual

7-8
IM 04P03B01-01E
Item Specifications
Special values Measurement channel
Status Display Description
+Over OVER See below.
–Over –OVER See below.
Skip SKIP A value for channels set to skip.
Error ERROR Values such as when both the reference channel and measurement
channel are +Over or –Over in delta computation.
+Burnout B.OUT A value displayed when a burnout is detected on a channel set to
burnout up scale.
–Burnout B.OUT A value displayed when a burnout is detected on a channel set to
burnout down scale.
+Over and –Over of measurement channels
A condition in which the value is outside the display range indicated in “Measured value or
computed value” above. For example,
• For 2 V range, values below –2.200 V are –Over and values over 2.200 V are +Over.
• For TC R, values below –10.0°C are –Over and values over 1770.0°C are +Over.
• If scaled to 0.0 to 100.0, values below –5.0 are –Over and values above 105.0 are +Over.
However, the displayable range during scaling is from –19999 to 31500 (excluding the decimal).
Values below –19999 and values above 31500 are displayed as –Over and +Over, respectively.
Date/Time display Displays the date or the time.
The date display format can be selected. The format is common with the date printout format.
Lights off Displays nothing.

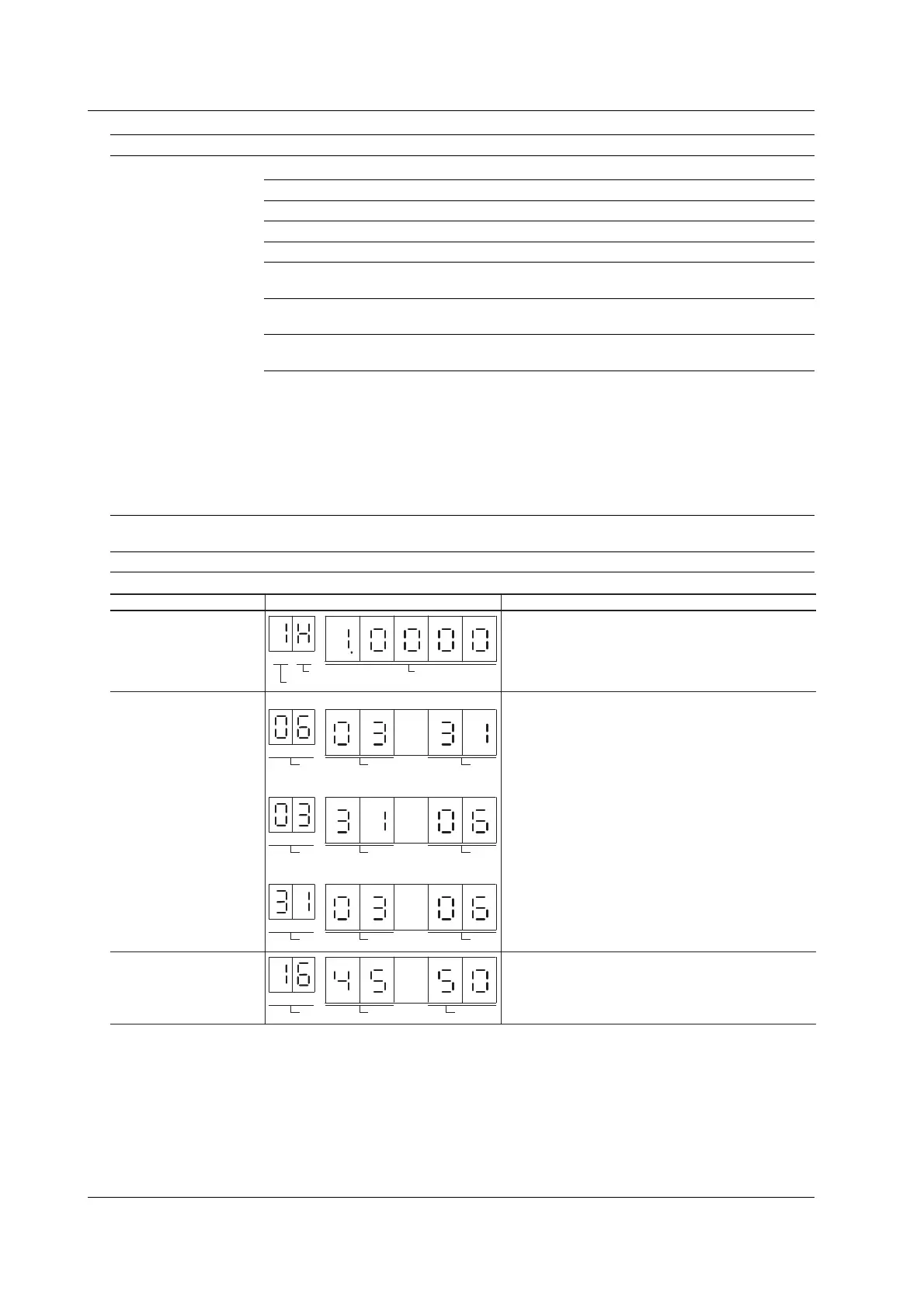

Digital Display
Name Display Example Description
Date display
Channel number. (1 digit), alarm (1 digit), and
measured value (5 digits)
Displays the lower two digits for the year.
Channel number
Alarm information
Measured value
Year/Month/Day
DayMonthYear
Time display
SecondMinuteHour
Month/Day/Year
YearDayMonth
Day/Month/Year
YearMonthDay
7.4 Display Function Specifications
