4-15

IM 04P03B01-01E

Setup Operations for Changing/Adding Functions (Basic Setting Mode)

4.10 Enabling the Moving Average Function (Dot

Model)

The moving average function can be enabled/disabled on the dot model. Basic Setting

mode cannot be entered when recording is in progress.

Procedure

1. Hold down the

key for 3 seconds to enter Setting mode.

2. Hold down the

and keys simultaneously for 3 seconds to display the

Basic Setting mode screen.

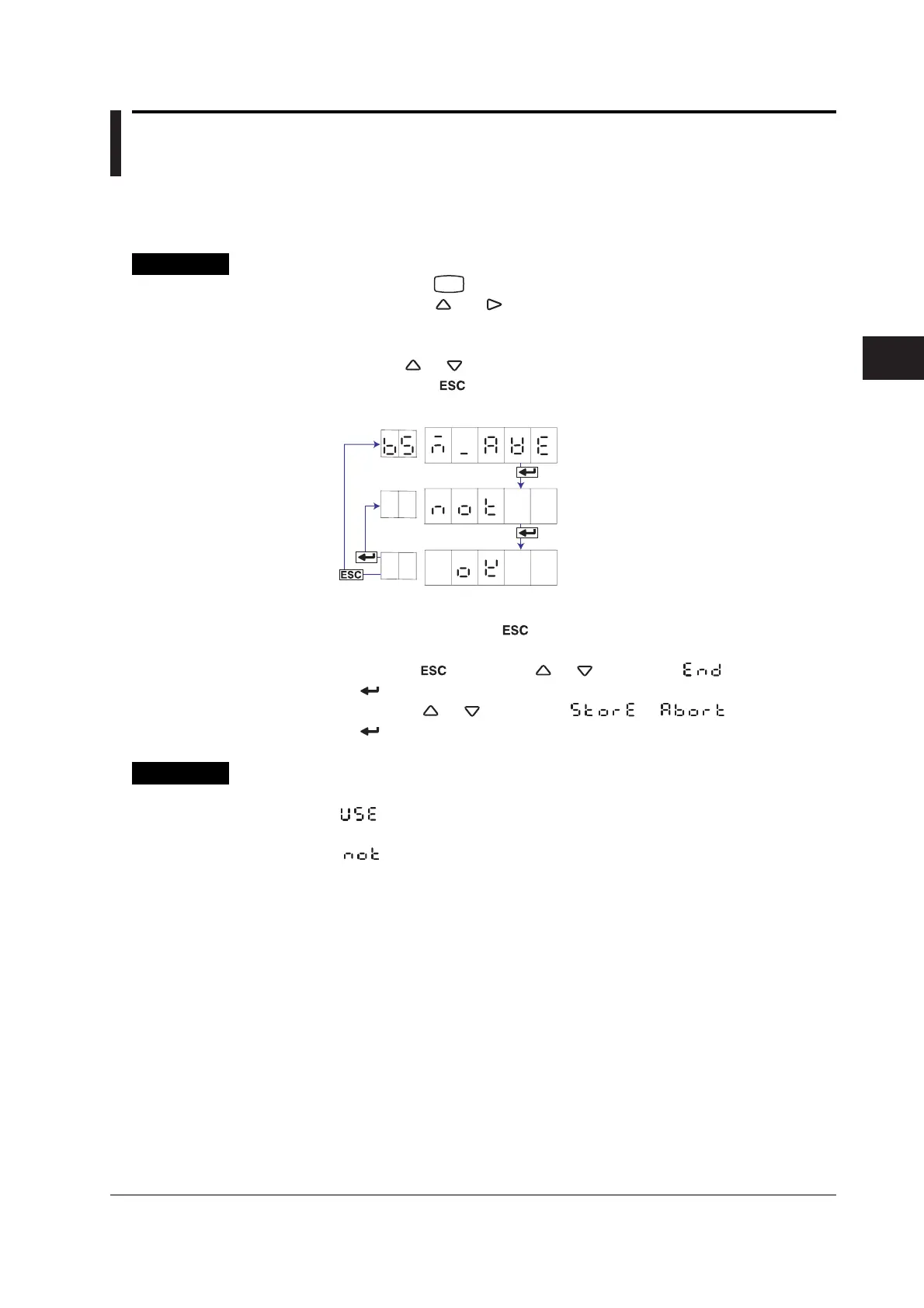

3. Carry out the procedure shown in the figure below.

Press the

or key to select the value.

If you press the key, the operation is cancelled, and the display returns to a

higher level menu.

The settings are activated.

Select whether to use moving average

function.

Select “M_AVE.”

(M_AVE)

(NOT)

(OK)

4. If you are done, press the key.

5. To return to the Operation mode,

1. Press the

key, use the or key to select , and press the

key.

2. Press the

or key to select or , and press the

key.

Explanation

Moving Average

Enable (

): Enables the setting of the number of samples of the moving average

in Setting mode.

Disable ( ): The “M_AVE” item does not appear in Setting mode.

<Related Topics> Setting the moving average: section 3.3
