Setup Operations for Convenient Functions (Setting Mode)
3
3.9 Setting the Secondary Chart Speed (Remote
Control Function, /R1)
The secondary chart speed when the chart speed is to be switched using the remote
control function (/R1 option) can be set.
Procedure
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.

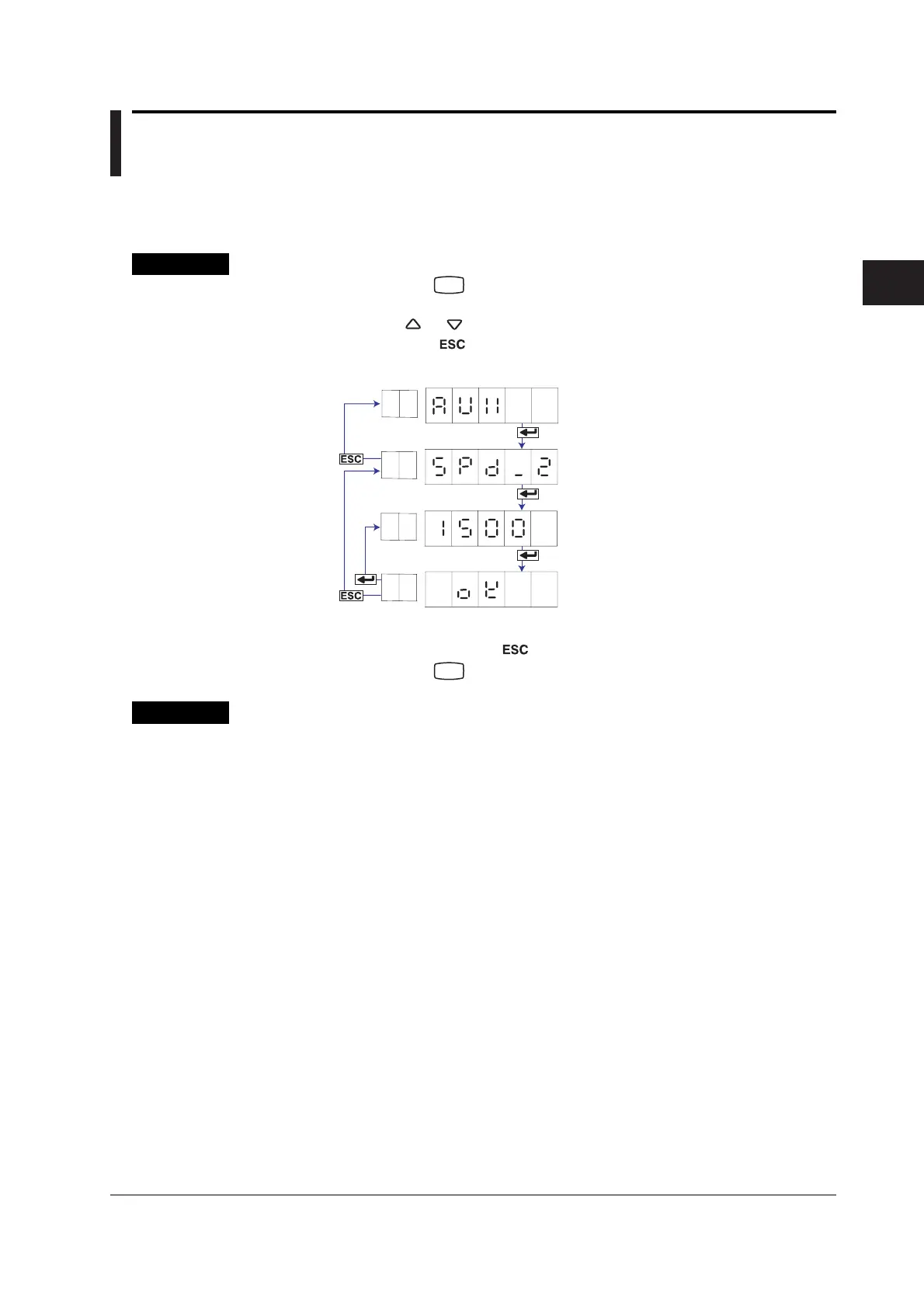

2. Carry out the procedure shown in the figure below.
Press the
or key to select the value.
If you press the key, the operation is cancelled, and the display returns to a
higher level menu.
Select the secondary chart speed.
Select “SPD_2.”
The settings are activated.
Select the “AUX.”
(AUX)
(SPD_2)
(OK)
3. If you are done, press the key.
4. Hold down the
MENU
key for 3 seconds to return to Operation mode.
Explanation
Chart Speed
See section 2.4.
<Related Topics> Setting the remote control function: Section 4.18
