Frequently Used Setup Operations (Setting Mode)
2
2.1 Setting the Input Range
Input range can be set for each measurement channel. Set unused channels to Skip.
If you change the input range, set the bias, alarm, partial expanded recording, and
calibration correction again.
Procedure
TC, RTD, and DC Voltage
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.

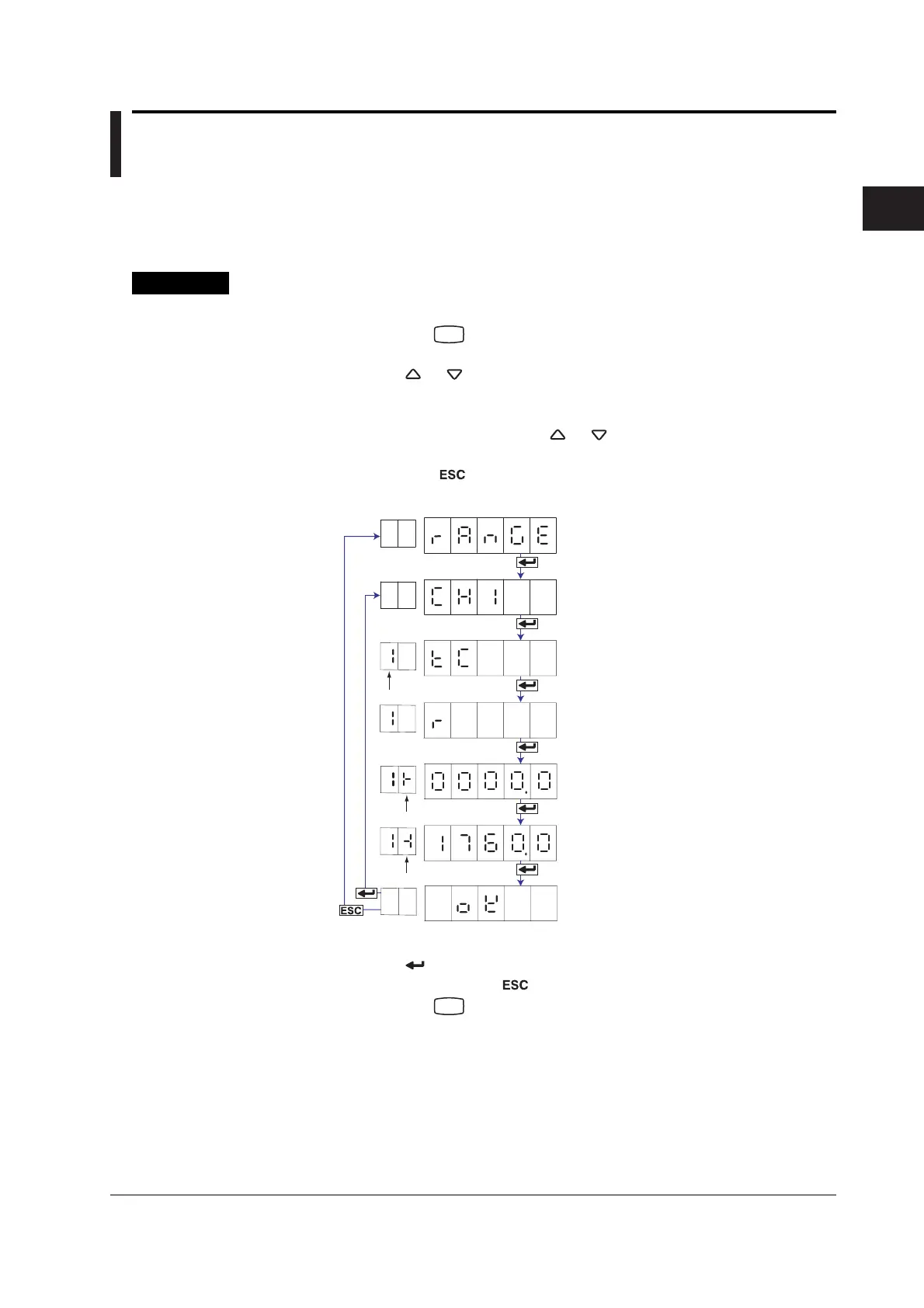

2. Carry out the procedure shown in the figure below.
Press the or key to select the value.
For the procedure on how to enter values or characters, see page 19 in the
Operation Guide
.
To change the polarity, press the or key when the leftmost digit of the
value is blinking.
If you press the
key, the operation is cancelled, and the display returns to a
higher level menu.
Select the input type.
Select the channel number.
Select the range.
Set the left span value.
Set the right span value.
The settings are activated.
Select “RANGE.”
(RANGE)
(CH1)
(TC)
(R)
(OK)
Channel number
Span left
Span right
3. Press the key to set other channels.
If you are done, press the key.
4. Hold down the
MENU
key for 3 seconds to return to Operation mode.
Chapter 2 Frequently Used Setup Operations (Setting Mode)
To Next Page
