4.8 Turning Periodic Printout ON and OFF and
Setting the Interval
The periodic printout settings can be specified. Basic Setting mode cannot be entered
when recording is in progress.
Procedure
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.
2. Hold down the and keys simultaneously for 3 seconds to display the
Basic Setting mode screen.

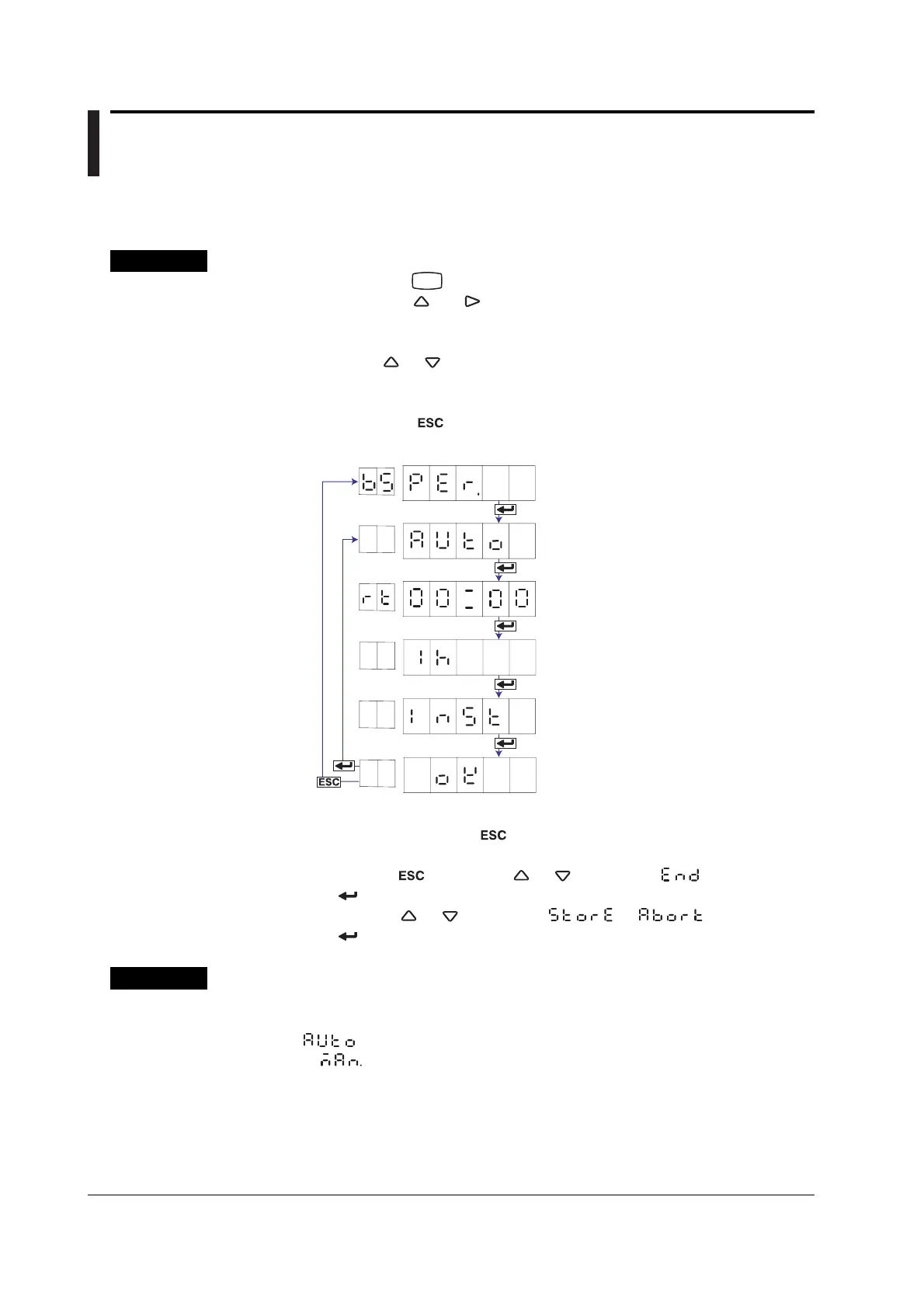

3. Carry out the procedure shown in the figure below.
Press the
or key to select the value.
For the procedure on how to enter values or characters, see page 19 in the
Operation Guide .
If you press the key, the operation is cancelled, and the display returns to a
higher level menu.
Set the reference time for the printout.
Select the periodic printout interval
mode.
Select “PER.”
(PER.)
(AUTO)
(00:00)
(When the interval mode is manual)
Select the periodic printout interval.
(1H)
Select whether to enable (INST) or
disable (OFF) the periodic printout.
(INST)
The settings are activated.
(OK)
4. If you are done, press the key.
5. To return to the Operation mode,
1 . Press the
key, use the or key to select , and press the
key.
2. Press the
or key to select or , and press the
key.
Explanation
Periodic Printout
Selects the periodic printout interval mode.
Auto (
): Automatically sets the printout interval in sync with the chart speed.
Manual ( ): Set the printout interval manually.
Reference Time
Sets the reference time for determining the times for executing the periodic printout.
The reference time is set in the range of 00 to 23 in 1 hour steps. Minutes cannot be
specified.
