2-11
IM 04P03B01-01E
Frequently Used Setup Operations (Setting Mode)
2
2.3 Setting the Unit on Linearly Scaled Channels
Units can be assigned on channels whose input range is set to Scale, 1-5V, or
SQRT.The assigned unit is added when printing to the chart paper or during data
transmission.
Procedure
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.

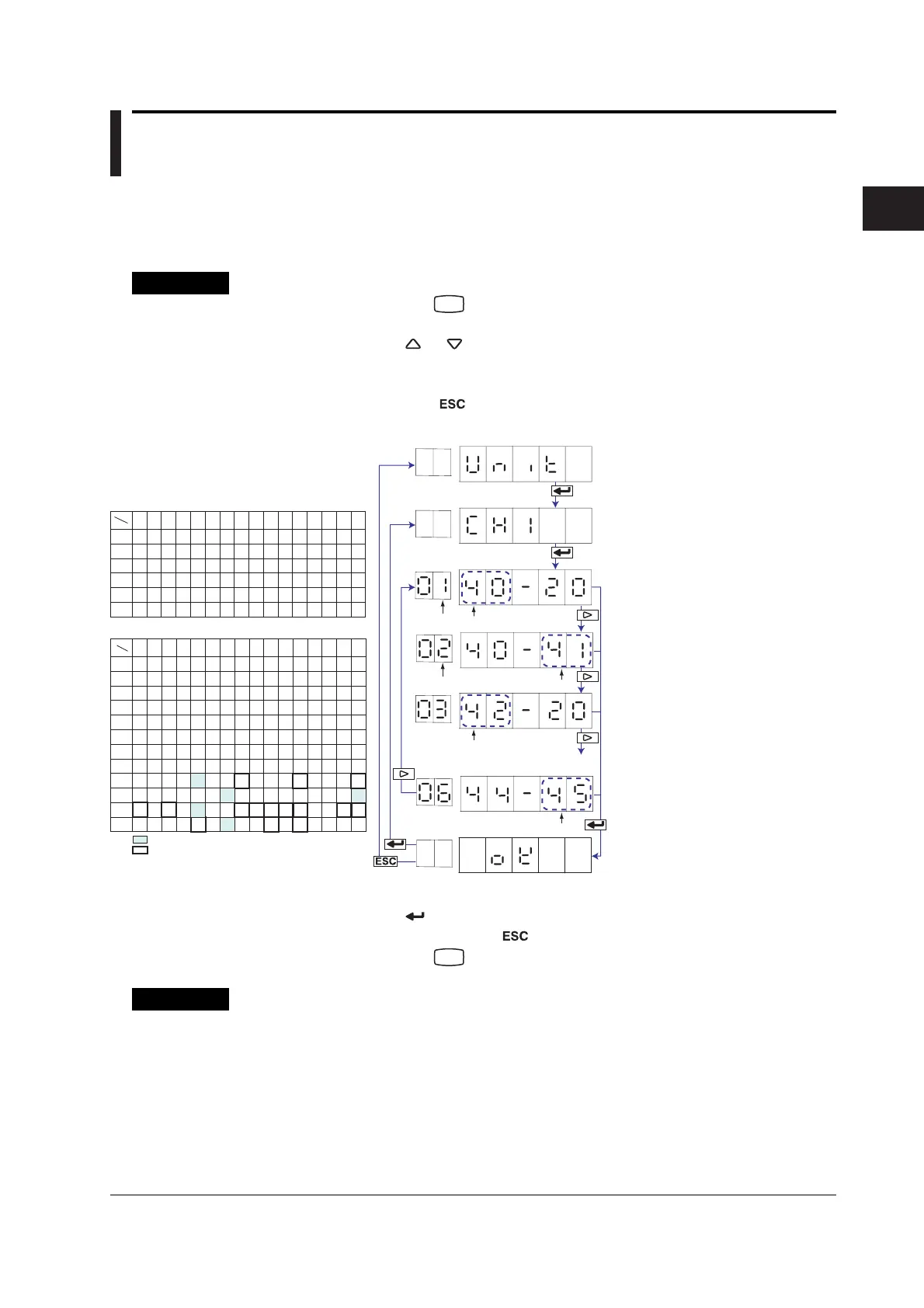

2. Carry out the procedure shown in the figure below.
Press the
or key to select the value.
For the procedure on how to enter values or characters, see page 19 in the
Operation Guide
.
If you press the
key, the operation is cancelled, and the display returns to a
higher level menu.
Enter the ASCII code of the 1
st
character.
Select the channel number.
Enter the ASCII code of the 2
nd
character.
Enter the ASCII code of the 3
rd
character.
Enter the ASCII code of the 6
th
character.
The settings are activated.
Select “UNIT.”
(UNIT)
(CH1)
(OK)
1
st
char.
1
st
character ASCII code
3
rd
character ASCII code
2
nd
character ASCII code
6
th
character ASCII code
2
nd
char.
:
:
SP = Space
Example: To register A, enter 41.
0 1 2 3 4 5 6 7 8
@ A B C D E F G H
P Q R S T U V W X
a b c d e f g h
p q r s t u v w x
SP
# % (
9
0 1 2 3 4 5 6 7 8
9 A B C D E F
I J K L M N O
Y Z °
i j k l m n o
y z µ Ω
2
3
Lower
Upper
)
∗ + − . /
20
30
40
50
60
70
0 1 2 3 4 5 6 7 8
@ A B C D E F G H
P Q R S T U V W X
a b c d e f g h
p q r s t u v w x
°
2
3
µ
Ä Ç
Ö
SP
# % (
9
0 1 2 3 4 5 6 7 8
9 A B C D E F
I J K L M N O
Y Z \
i j k l m n o
y z Ω
Ë Ï
Ü ß
à â ä ç è
é ê ë î ï
ô ö
ù û ü
Lower
Upper
)
∗ + - . /
20
30
40
50
60
70
A0
B0
C0
D0
E0
F0
Only French
Only German
For English
For German or French
3. Press the key to set other channels.
If you are done, press the key.
4. Hold down the
MENU
key for 3 seconds to return to Operation mode.
Explanation
Characters That Can Be Used for Units
A unit is set using up to six characters.
To Next Page
