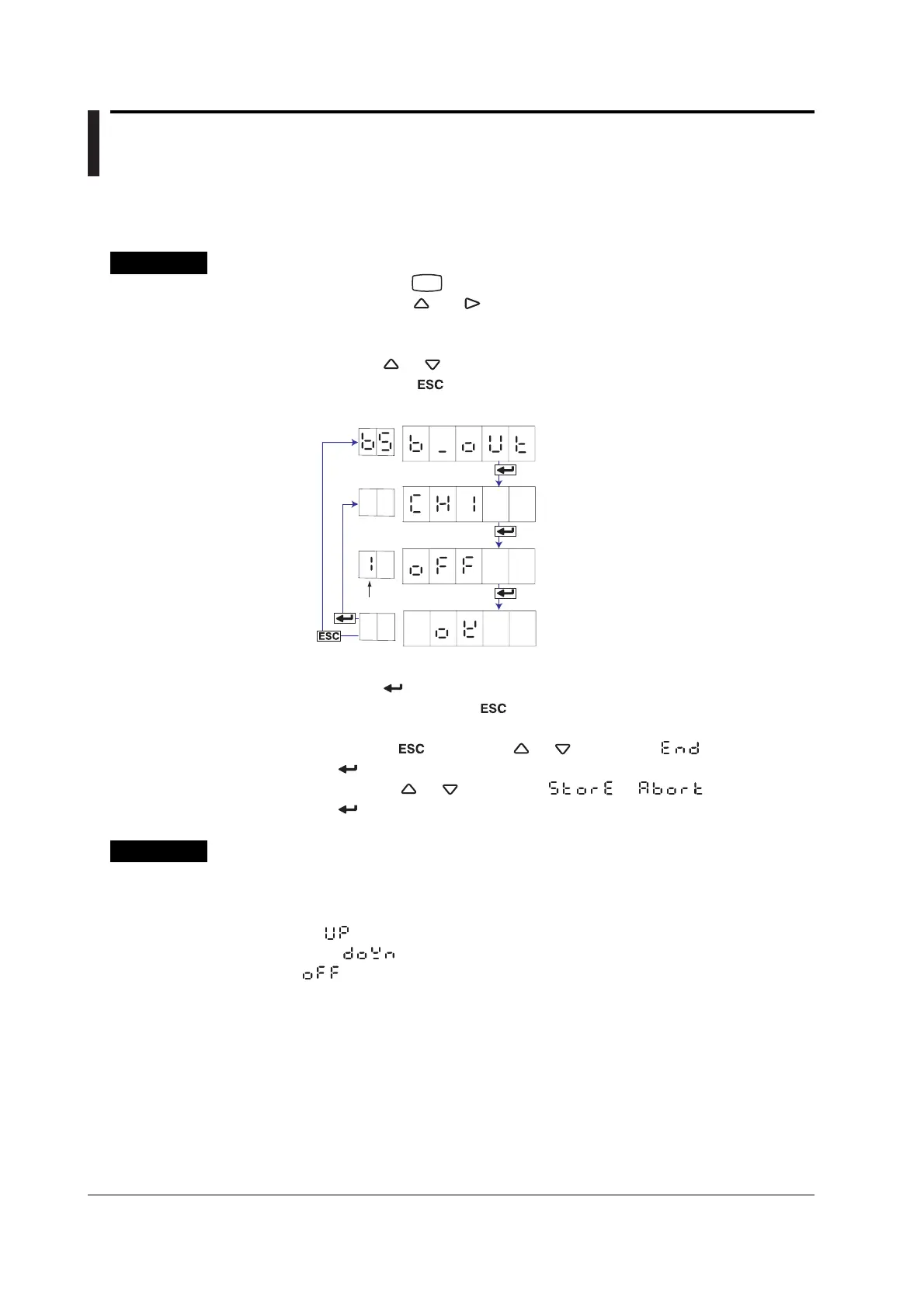

4.3 Setting the Burnout Detection Function
The burnout detection function of thermocouples can be set on 1-5V or TC input
channels. Basic Setting mode cannot be entered when recording is in progress.
Procedure
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.
2. Hold down the and keys simultaneously for 3 seconds to display the
Basic Setting mode screen.
3. Carry out the procedure shown in the figure below.
Press the
or key to select the value.
If you press the key, the operation is cancelled, and the display returns to a
higher level menu.
Select the recording operation that is
carried out when a burnout is detected.
Select the channel number.
The settings are activated.
Select “B_OUT.”
(B_OUT)
(CH1)
(OFF)
(OK)
Channel number
4. Press the key to set other channels.
If you are done, press the key.
5. To return to the Operation mode,
1. Press the
key, use the or key to select , and press the
key.
2. Press the or key to select or , and press the
key.
Explanation
Burnout
Selects the action taken when a burnout is detected at the 1-5V input or the
thermocouple input.
Upscale (
): Records off the scale on the 100% side.
Downscale ( ): Records off the scale on the 0% side.
OFF (
): Disables the burnout detection function.
