4.5 Changing the Channel Recording Color (Dot
Model)
The trend recording color on the dot model can be changed. Basic Setting mode cannot
be entered when recording is in progress.
Procedure
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.
2. Hold down the
and keys simultaneously for 3 seconds to display the
Basic Setting mode screen.

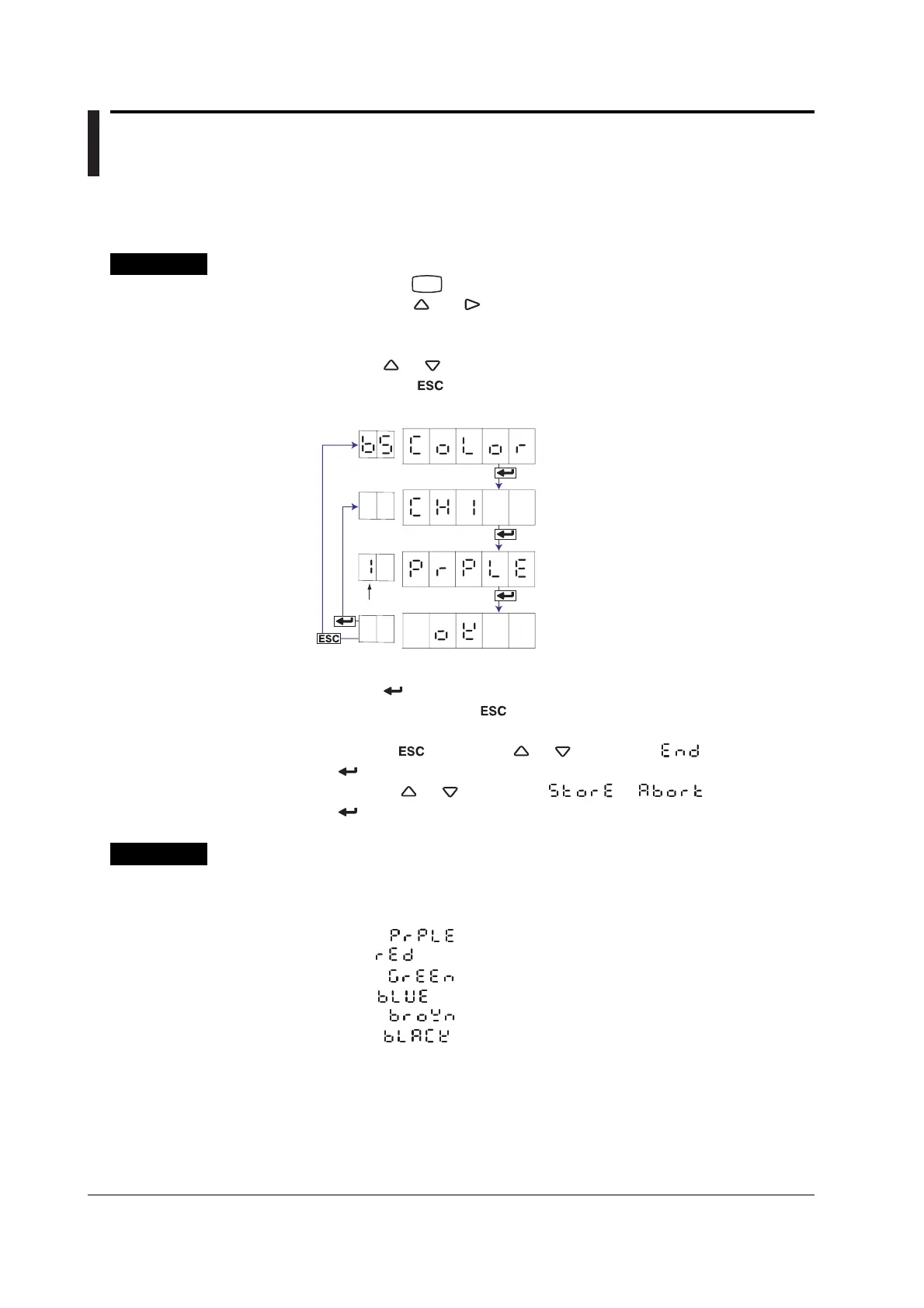

3. Carry out the procedure shown in the figure below.
Press the
or key to select the value.
If you press the key, the operation is cancelled, and the display returns to a
higher level menu.
Select the recording color.
Select the channel number.
The settings are activated.
Select “COLOR.”
(COLOR)
(CH1)
(PRPLE)
(OK)
Channel number
4. Press the key to set other channels.
If you are done, press the
key.
5. To return to the Operation mode,
1. Press the key, use the or key to select , and press the
key.
2. Press the or key to select or , and press the
key.
Explanation
Color
Sets the recording color of measurement channels.
By default, the recording colors are set as follows:
Channel 1: Purple (
)
Channel 2: Red ( )
Channel 3: Green ( )
Channel 4: Blue (
)
Channel 5: Brown ( )
Channel 6: Black ( )
