YOKOGAWA SR10000 series User Manual

4-1
IM 04P03B01-01E
Setup Operations for Changing/Adding Functions (Basic Setting Mode)
4
4.1 Changing the Auxiliary Alarm Function
This section explains the details of setting the alarm system items listed below.
• Diagnosis output using the alarm output relay (I01)
• Energized/De-energized operation of alarm output relays when alarms occur
• Alarm hysteresis
Basic Setting mode cannot be entered when recording is in progress.
Procedure
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.
2. Hold down the and keys simultaneously for 3 seconds to display the
Basic Setting mode screen.

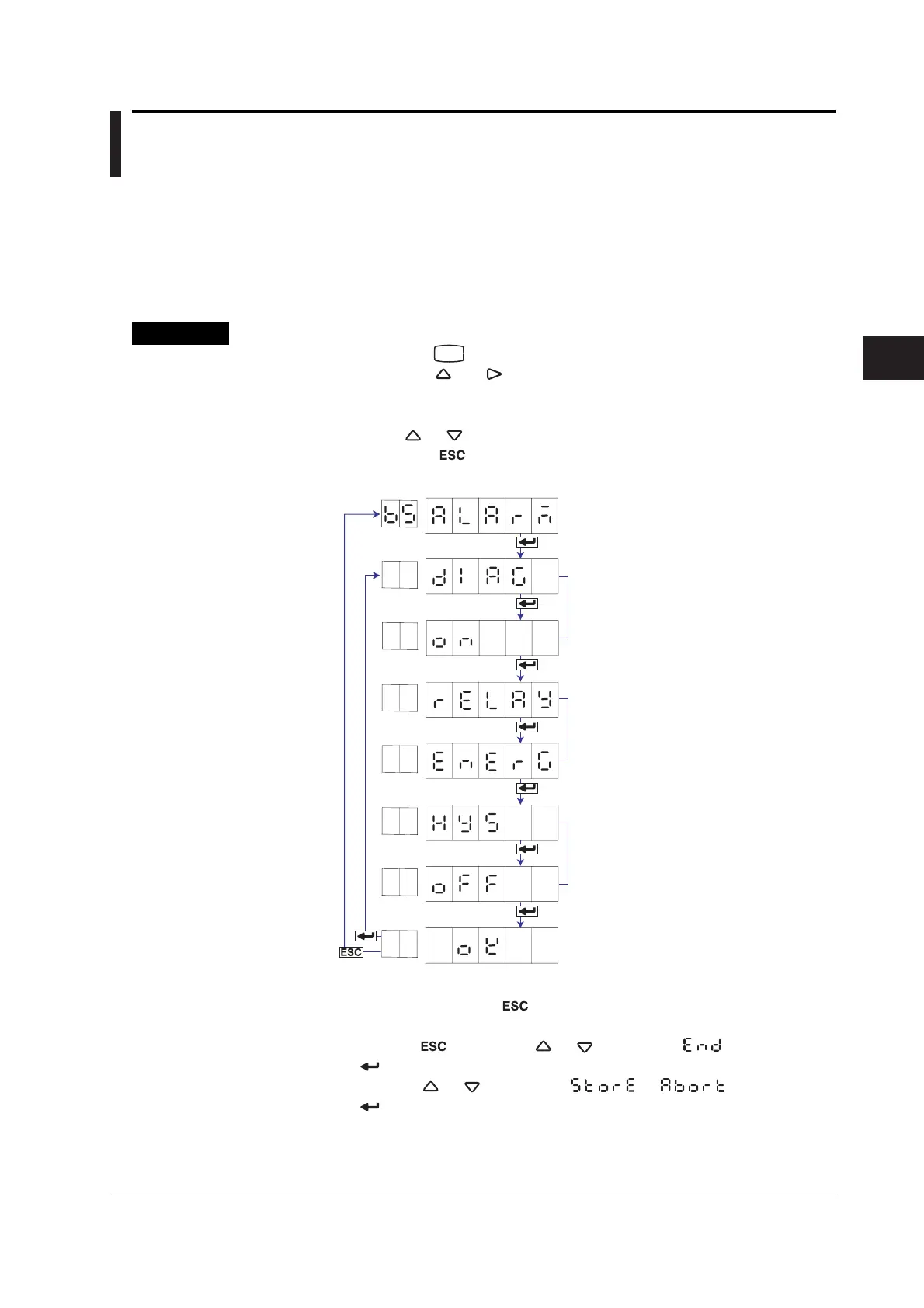

3. Carry out the procedure shown in the figure below.
Press the
or key to select the value.
If you press the
key, the operation is cancelled, and the display returns to a
higher level menu.
The settings are activated.
Select the “ALARM.”
(RANGE)
(DIAG)
(ON)
(RELAY)
(ENERG)
(HYS)
(OFF)
(OK)
Diagnosis output
Select ON to set relay I01 to diagnosis
output. This setting is valid only on
models with the /A1, /A2, or /A3 option.
Output relay energize/de-energize
Select the relay’s energized or
de-energized operation. This setting is
valid only on models with the /A1, /A2,
or /A3 option.
Hysteresis
Select the hysteresis (0.0% (OFF) to
1.0%).
4. If you are done, press the key.
5. To return to the Operation mode,
1. Press the key, use the or key to select , and press the
key.
2. Press the or key to select or , and press the
key.
Chapter 4 Setup Operations for Changing/Adding Functions (Basic Setting Mode)
