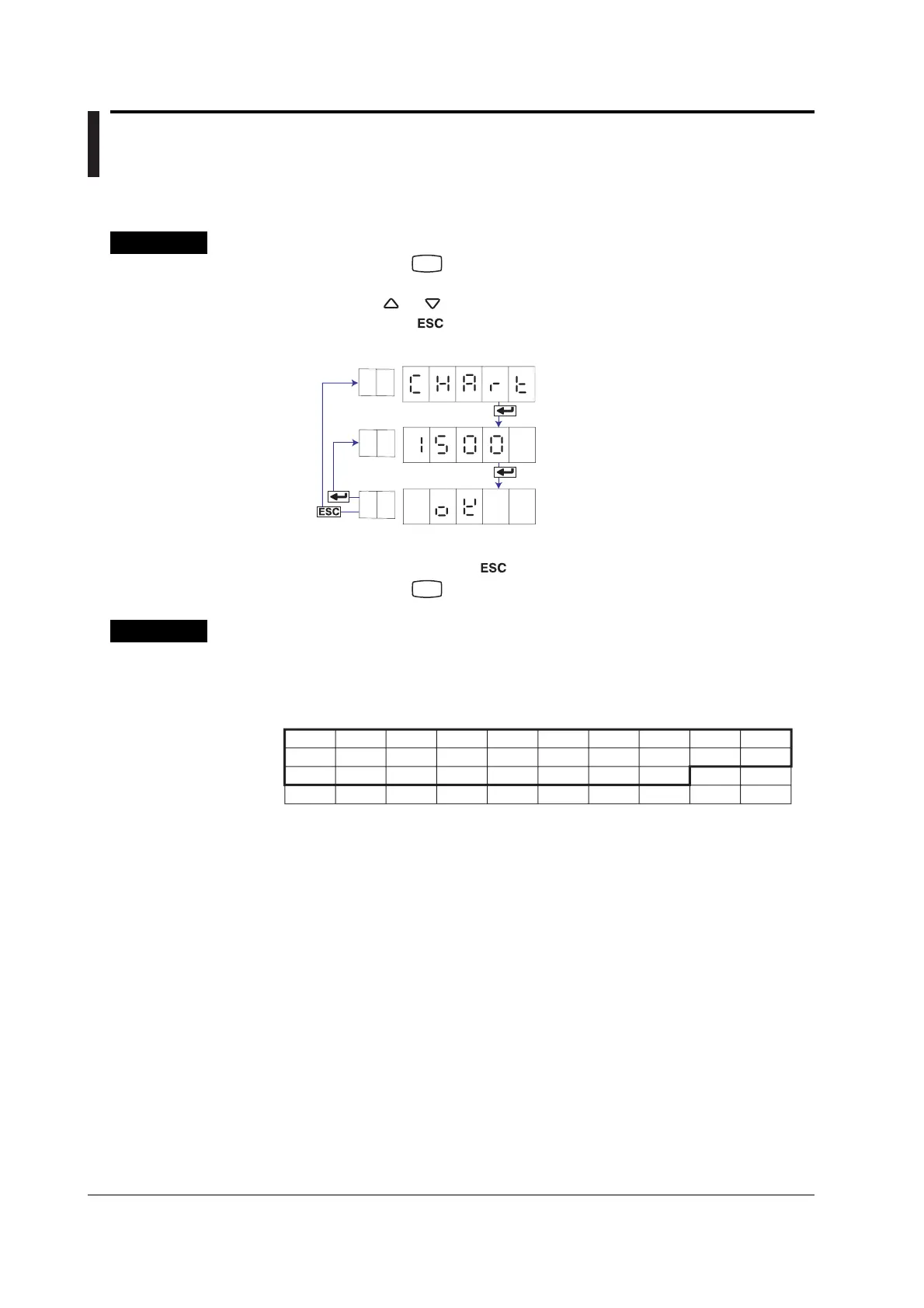

2.4 Changing the Chart Speed
The chart speed can be changed.
Procedure
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.
2. Carry out the procedure shown in the figure below.
Press the
or key to select the value.
If you press the key, the operation is cancelled, and the display returns to a
higher level menu.
The settings are activated.
Select the chart speed.
Select the “CHART.”
(CHART)
(OK)
3. If you are done, press the key.
4. Hold down the
MENU
key for 3 seconds to return to Operation mode.
Explanation
Chart Speed
• Pen model: Select from the 40 settings shown below.
• Dot model: Select from the 28 settings in the thick frame shown below.
10 15 20 25 30 40 50 60 75 80
90 100 120 150 160 180 200 240 300 360
375 450 600 720 750 900 1200 1500 1800 2400
3000 3600 4500 4800 5400 6000 7200 9000 10800 12000
Chart speed (the chart speed of the dot model is inside the thick frame)
(Unit: mm/h)
<Related Topics> Setting the secondary chart speed: Section 3.9
Turning the new chart speed printout ON and OFF: Section 4.7
