Setup Operations for Changing/Adding Functions (Basic Setting Mode)
4
4.20 Selecting to Show/Hide Setting Mode Menus
Select the menu for showing/hiding the Setting mode menus.
Basic Setting mode cannot be entered when recording is in progress.
Procedure
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.
2. Hold down the and keys simultaneously for 3 seconds to display the
Basic Setting mode screen.

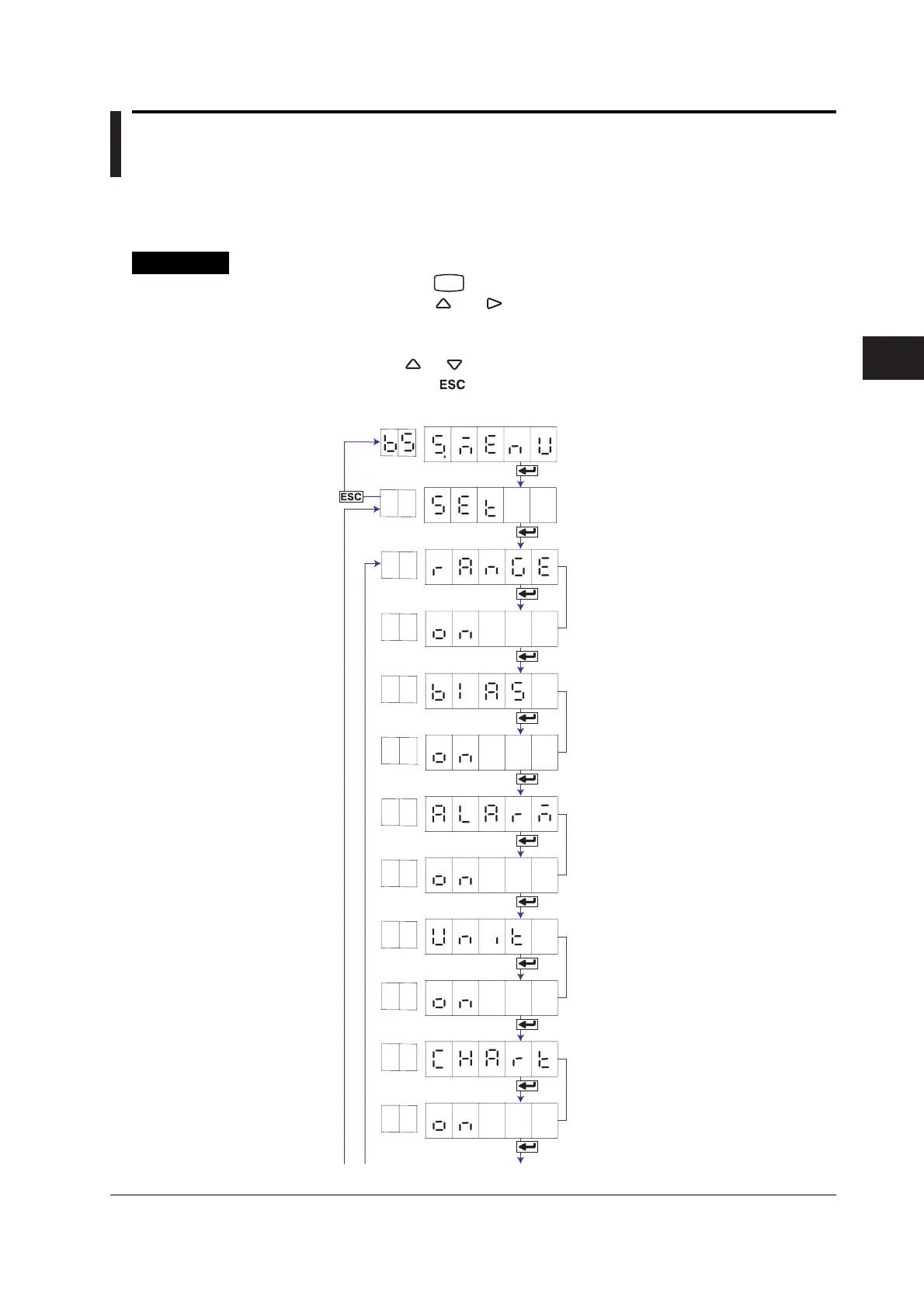

3. Carry out the procedure shown in the figure below.
Press the
or key to select the value.
If you press the key, the operation is cancelled, and the display returns to a
higher level menu.
Select “SET.”
Select “S.MENU.”
(S.MENU)
(SET)
(RANGE)
(ON)
(BIAS)
(ON)
(ALARM)
Select whether to display RANGE in
Setting mode. Select ON or OFF.
Select whether to display BIAS in
Setting mode. Select ON or OFF.
(ON)
Select whether to display ALARM
in Setting mode. Select ON or OFF.
(UNIT)
(ON)
Select whether to display UNIT in
Setting mode. Select ON or OFF.
(CHART)
(ON)
Select whether to display CHART
in Setting mode. Select ON or OFF.
To the next page
