4-37
IM 04P03B01-01E
Setup Operations for Changing/Adding Functions (Basic Setting Mode)
4

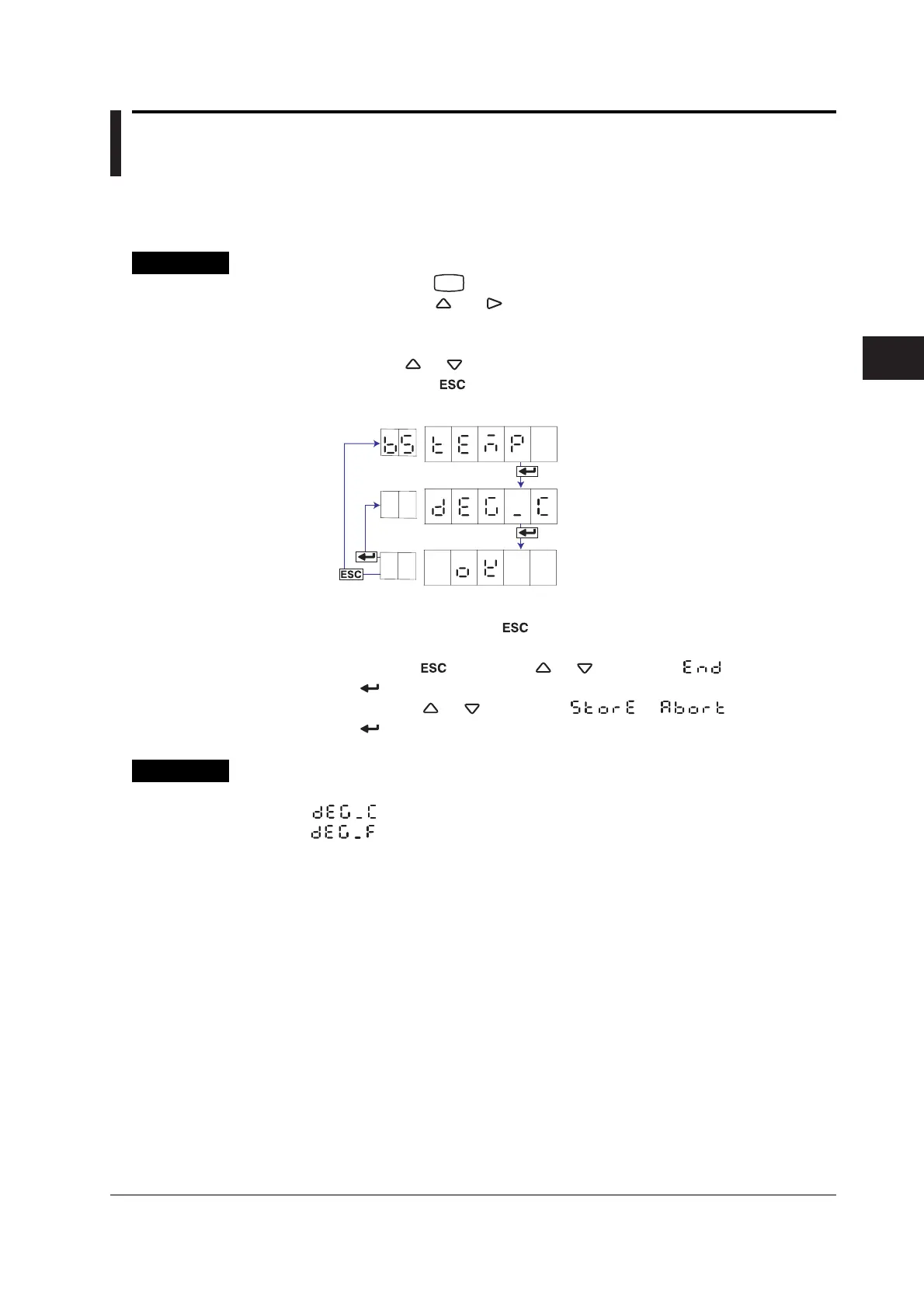

4.24 Changing the Temperature Unit
The unit of the temperature measured using the TC or RTD can be changed. Basic
Setting mode cannot be entered when recording is in progress.
Procedure
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.
2. Hold down the and keys simultaneously for 3 seconds to display the
Basic Setting mode screen.
3. Carry out the procedure shown in the figure below.
Press the
or key to select the value.
If you press the key, the operation is cancelled, and the display returns to a
higher level menu.
The settings are activated.
Selects the temperature unit.
Select “TEMP.”
(TEMP)
(DEG_C)
(OK)
4. If you are done, press the key.
5. To return to the Operation mode,
1. Press the key, use the or key to select , and press the
key.
2. Press the or key to select or , and press the
key.
Explanation
Temperature Unit
°C (
): Uses Celsius.
°F ( ): Uses Fahrenheit.
