4.22 Setting the Calibration Correction Function
(/CC1 Option)
The calibration correction method and the number of correction points can be set. Basic
Setting mode cannot be entered when recording is in progress.
Procedure
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.
2. Hold down the
and keys simultaneously for 3 seconds to display the
Basic Setting mode screen.

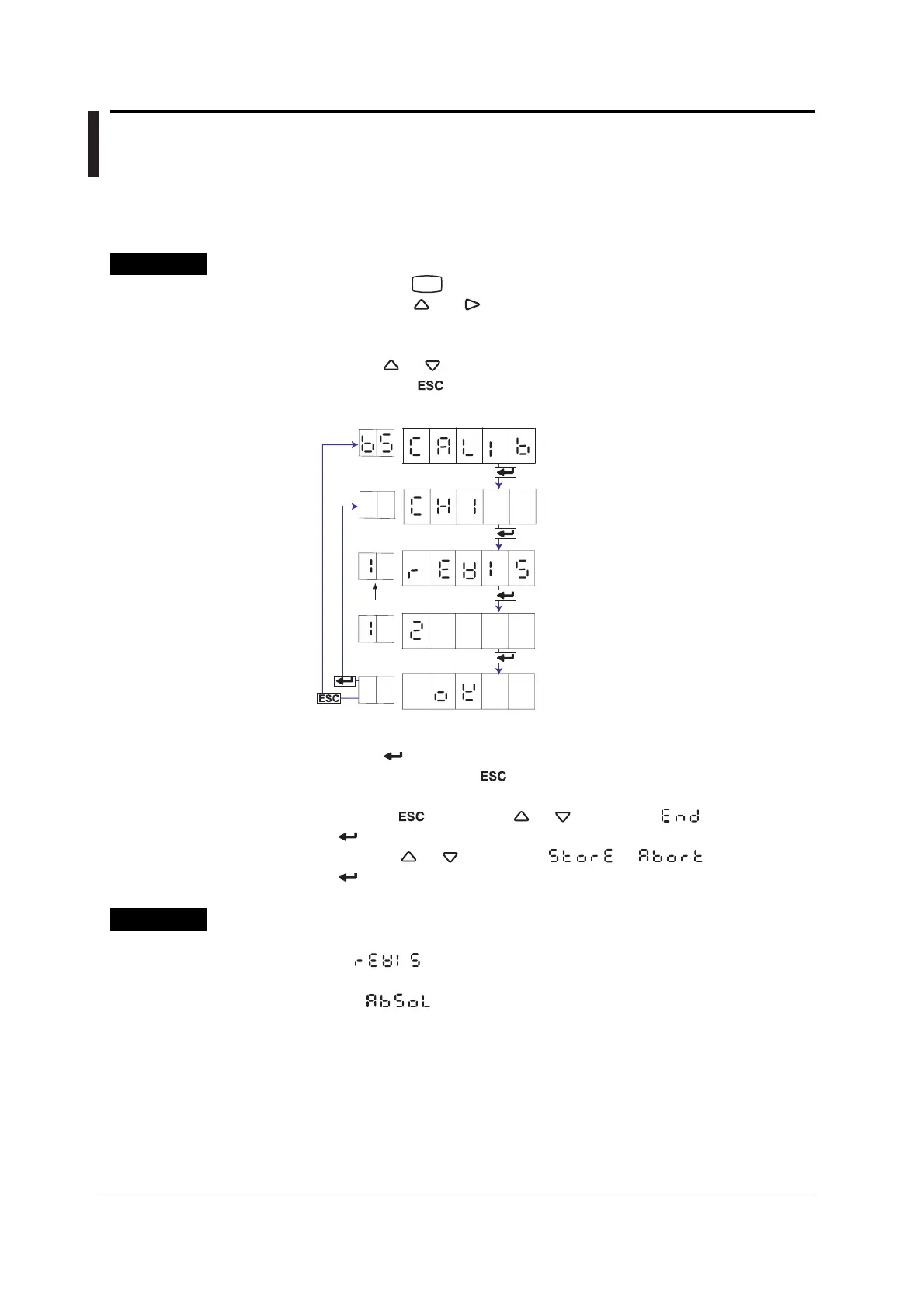

3. Carry out the procedure shown in the figure below.
Press the
or key to select the value.
If you press the key, the operation is cancelled, and the display returns to a
higher level menu.
Select whether to perform calibration
correction using revise values or
absolute values.
Select the channel number.
Set the number of calibration points.
Select “CALIB.”
(CALIB)
(CH1)
(REVIS)
The settings are activated.
(OK)
Channel number
4. Press the key to set other channels.
If you are done, press the
key.
5. To return to the Operation mode,
1. Press the key, use the or key to select , and press the
key.
2. Press the or key to select or , and press the
key.
Explanation
Calibration Correction Method
Revise value (
): Specifies the difference between the correction values
and input values.
Absolute value (
): Specifies the correction values.
Number of Calibration Points
Selects the number of points that make up the segments (including the start and end
points) in the range of 2 to 16.
<Related Topics> Enabling the calibration correction function: Section 4.15
Performing calibration correction: Section 3.11
