3-5
IM 04P03B01-01E
Setup Operations for Convenient Functions (Setting Mode)
3
3.5 Setting the Partial Expanded Recording
A section of the recording range can be expanded.
If you change the input range, set the partial expanded recording again.
Procedure
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.

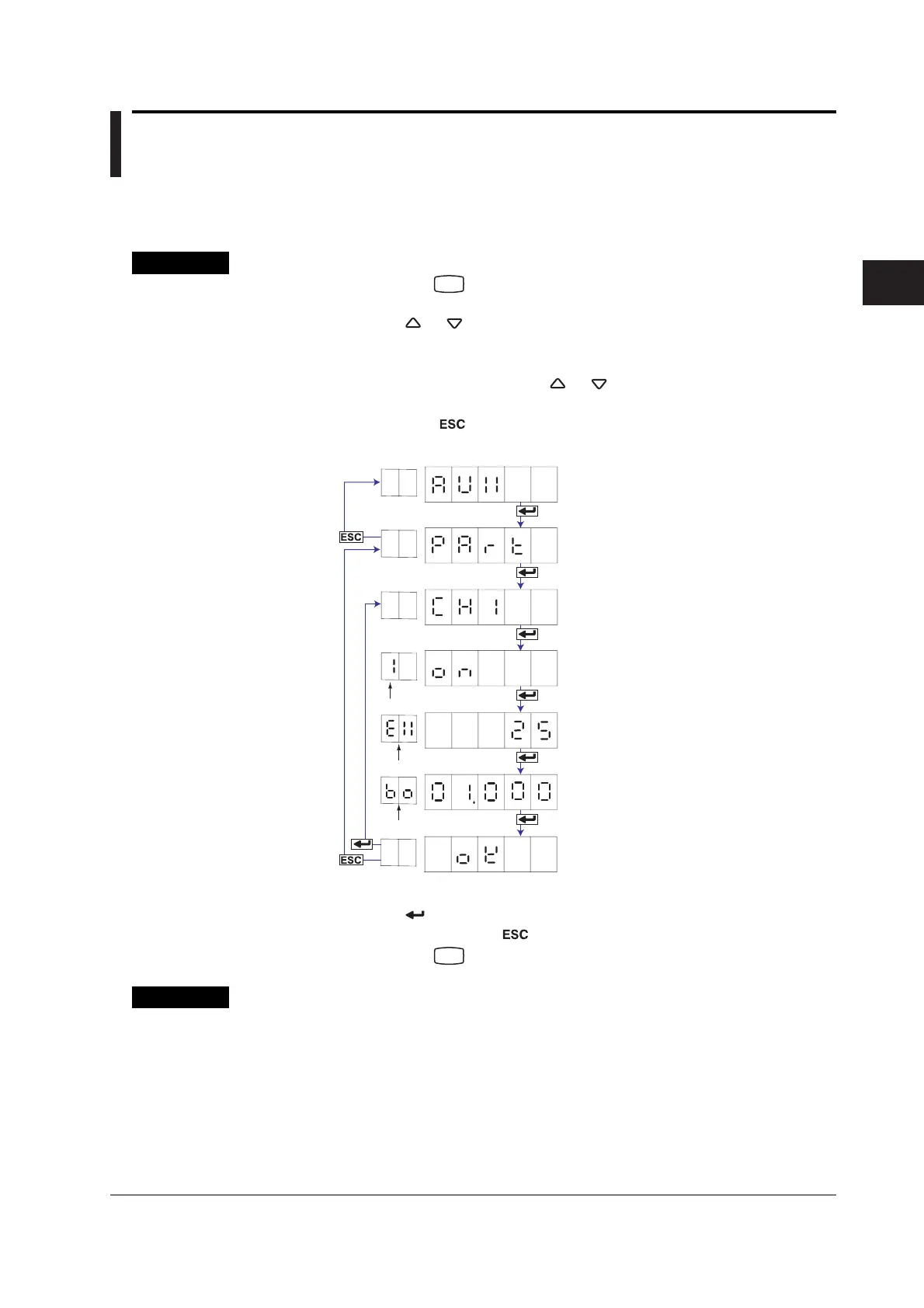

2. Carry out the procedure shown in the figure below.
Press the or key to select the value.
For the procedure on how to enter values or characters, see page 19 in the
Operation Guide
.
To change the polarity, press the or key when the leftmost digit of the
value is blinking.
If you press the
key, the operation is cancelled, and the display returns to a
higher level menu.
Select the channel number.
Select the “PART.”
Select ON to set the partial expanded
recording function.
(When partial expanded recording is ON)
Set the boundary position. (A value when
the record span is assumed to be 100%)
Set the boundary value within the
recording span.
Select the “AUX.”
(AUX)
(PART)
(CH1)
(ON)
The settings are activated.
(OK)
Channel number
Boundary position
Boundary value
3. Press the key to set other channels.
If you are done, press the
key.
4. Hold down the
MENU
key for 3 seconds to return to Operation mode.
Explanation
Boundary Position
Set a value between 1 and 99%. One percent corresponds to 1 mm, because the record
width is 100 mm.
Example: To record 0 to 8 V in the 0 to 50% position and 8 to 10 V in the 50% to 100%
position with a span of 0 to 10 V, set the boundary position to 50% and the
boundary value to 8.00 V.
<Related Topics> Enabling the partial expanded recording function: Section 4.12
