YOKOGAWA SR10000 series User Manual

App-2
IM 04P03B01-01E
When the Interval Is Set to Manual
If you select Manual, you can set the interval.
• Chart Speeds That Allows Periodic Printout
Pen Model Dot Model
Chart Speed Printout Availability Chart Speed Printout Availability
10 to 1500 mm/h Yes 10 to 100 mm/h Yes
1800 mm/h or higher No 120 mm/h or higher No
• Interval Settings
Select from 10, 12, 15, 20, 30 minutes, 1, 2, 3, 4, 6, 8, 12, and 24 hours (see section:
4.8).
• Printout Items
Item Number of Lines Initial Setting Notes (Ref. Section)
Date/Time 2 - Always printed.
Measured value and 1 line/channel Printed Print or not print selectable for
alarm status each channel (section 3.6).
Scale 2 Printed Print or not print selectable
(section 4.7).
Pen color 1 Printed Print or not print selectable
(Pen model only) (section 4.7).
Chart speed 1 - Always printed.

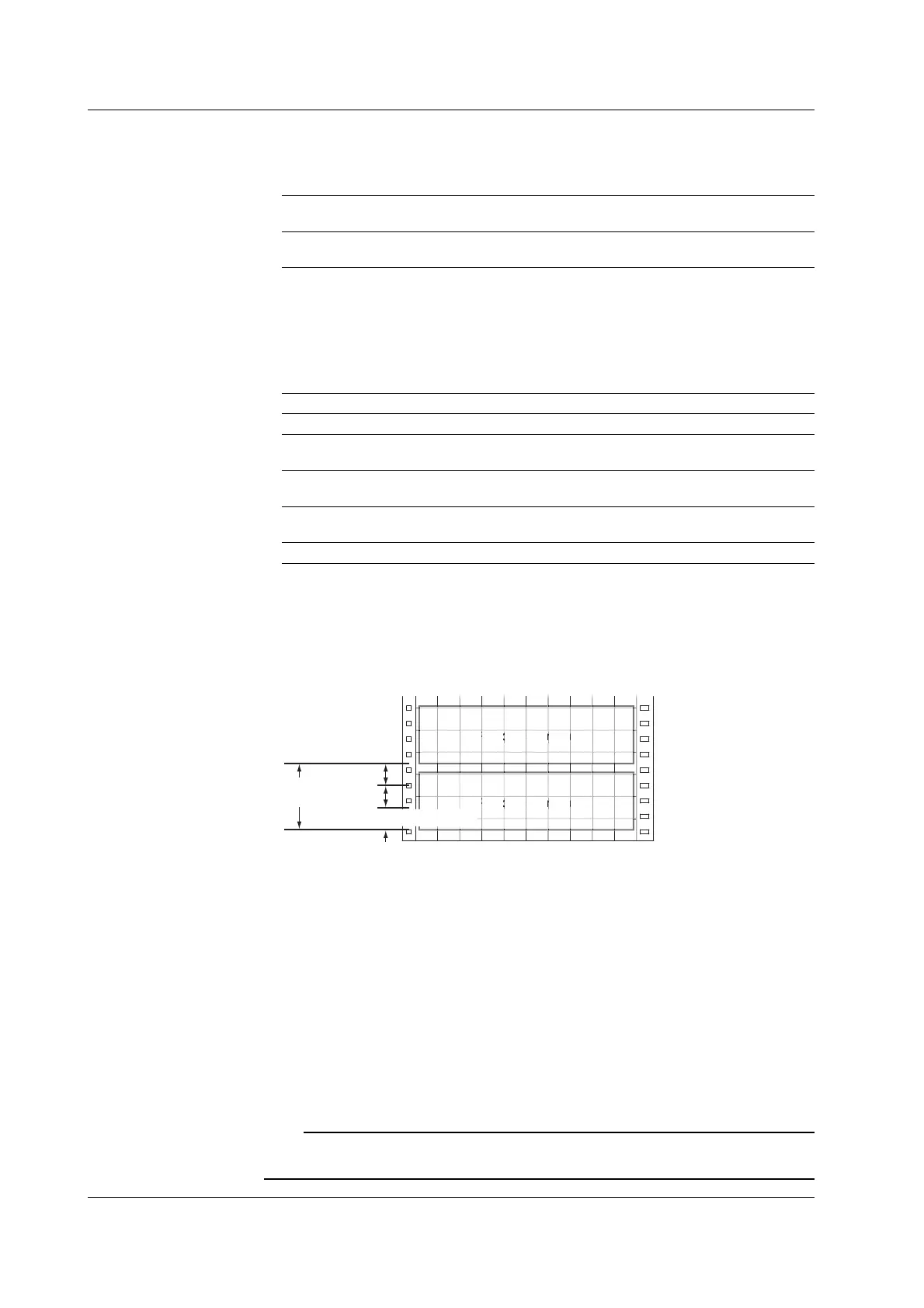

• Relationship between the Printout Items and Interval
The next periodic printout does not start until all items of the previous periodic printout
are printed.
If all items cannot be printed in the specified interval, the printout interval increases by
an integer multiple of the specified interval.
Periodic printout
u
n
c
o
P
Periodic printout
u
n
c
o
P
Actual
interval
Sp
p
ecified interva
l
Example: Dot model, chart speed: 20 mm/h, interval: 30 minutes, all other settings at
default.
• This setting requires 11 lines to be printed which is equivalent to
approximately 28 mm* of chart paper.
• The length of chart paper that is fed within the interval is 10 mm.
* The length of chart paper needed in the printout varies depending on the chart
speed and dot printing interval.
Not all items can be printed in the specified interval of 30 minutes.
The actual interval is 1 hour and 30 minutes.
If you want to print at a shorter interval, change the settings as follows:
• Reduce the number of printed items.
• Increase the chart speed within the printable range.
Note
Measurement, display, periodic printout, and trend recording (dot model) are not performed
by setting unused channels to SKIP (see section 2.1).
Appendix 1 Periodic Printout Interval
