1-10
IM 04P03B01-01E
For the procedure to set the functions, see section 1.6, “Function Setup Guide.”
Printout
The figure below is used to explain the printout contents. The actual printout and font are
different from those illustrated in the figure. The printout positions are also slightly
different.

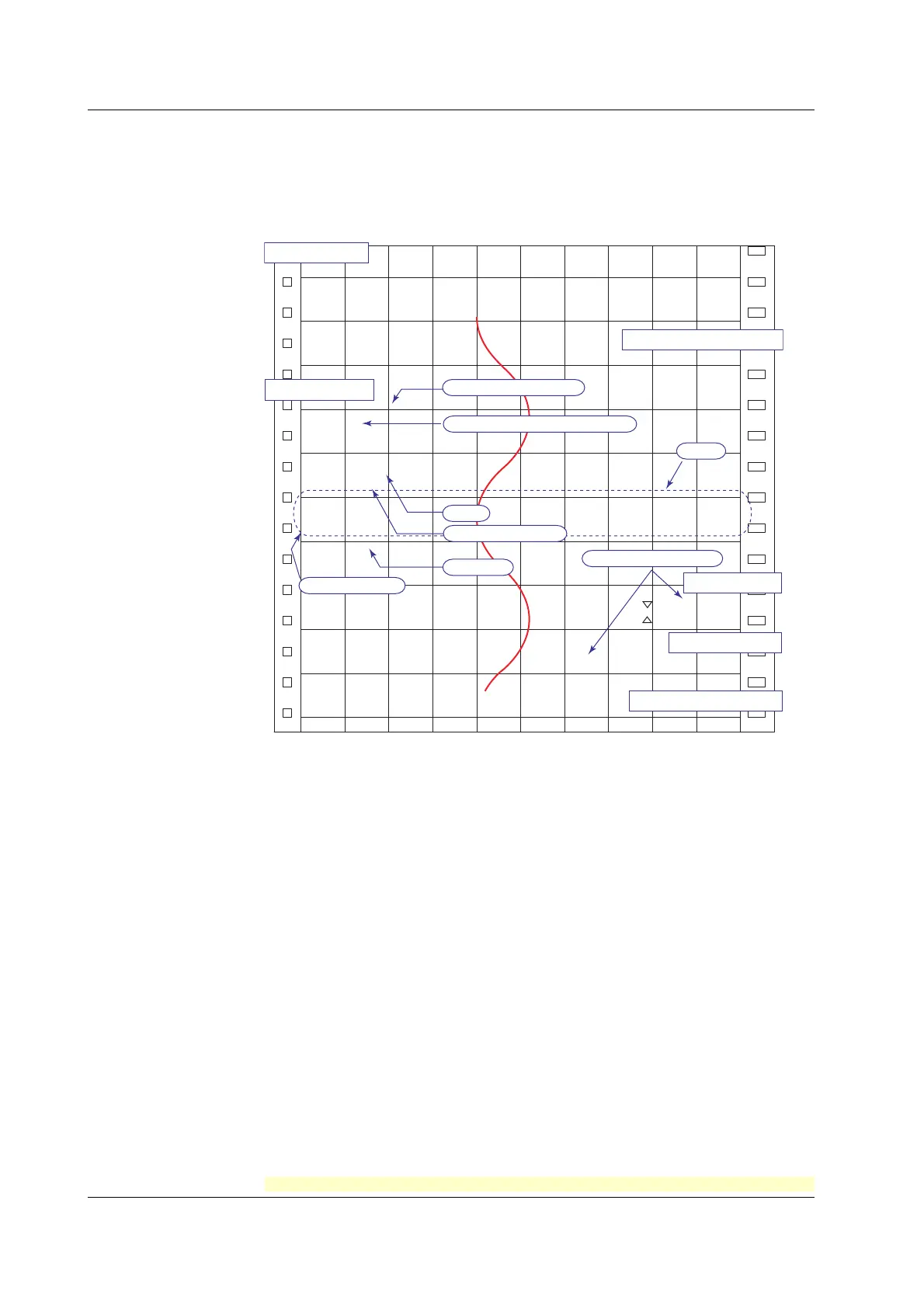

Printout Example on the Pen Model
Recording start printout
Alarm printout
Message printout
New chart speed printout
Manual printout
Periodic printout
Recording color
Scale
Buffer overflow mark
Jan.31.05 15:00
1 223.5mg/cm
3
2 437.2µS/cm
3 H 591.6˚C 4d −0.222V
50mm/h 14:55
08:00 25mm/h
09:52*START#205 ABCDEF
1H3*10:09
1H3 10:05
Jan.31.05!
13:50*
1 218.7mg/cm
3
2 390.6µS/cm
3 H 598.4˚C
4 d −0.222V
0.0 500.0
1CH mg/cm
3
RED
50mm/h_
Time tick cancel mark
Pen offset compensation mark
Alarm
Delta computation
Time tick
Time tick
The time ticks are marks that indicate the positions of the date/time on the chart paper.
Time tick cancel mark
An exclamation point (!) is printed when the periodic printout time tick was not printed at the
correct position.
Channel number or tag printout
Channel numbers or tags can be printed.
<Related Topics>
Switching between channel number printout and tag printout: Section 4.7
Setting the periodic printout
(interval, reference time, and periodic printout ON/OFF): Section 4.8
Turning printout ON/OFF
(alarm printout, recording start printout, new chart speed printout, scale
printout for periodic printout, and recording color printout for periodic printout)
: Section 4.7
Setting the time format (alarm printout, message printout, recording start printout, and new chart
speed printout): Section 4.16
Turning periodic printout ON/OFF for each channel: Section 3.6
Setting the message string: Section 3.8
Executing manual printouts, executing message printouts, clearing the alarm printout
buffer, and printing out settings: see the
Operation Guide
)
1.3 Recording
