3-12
IM 04P03B01-01E
3. Press the key to set other channels.
If you are done, press the
key.
4. Hold down the
MENU
key for 3 seconds to return to Operation mode.
Explanation

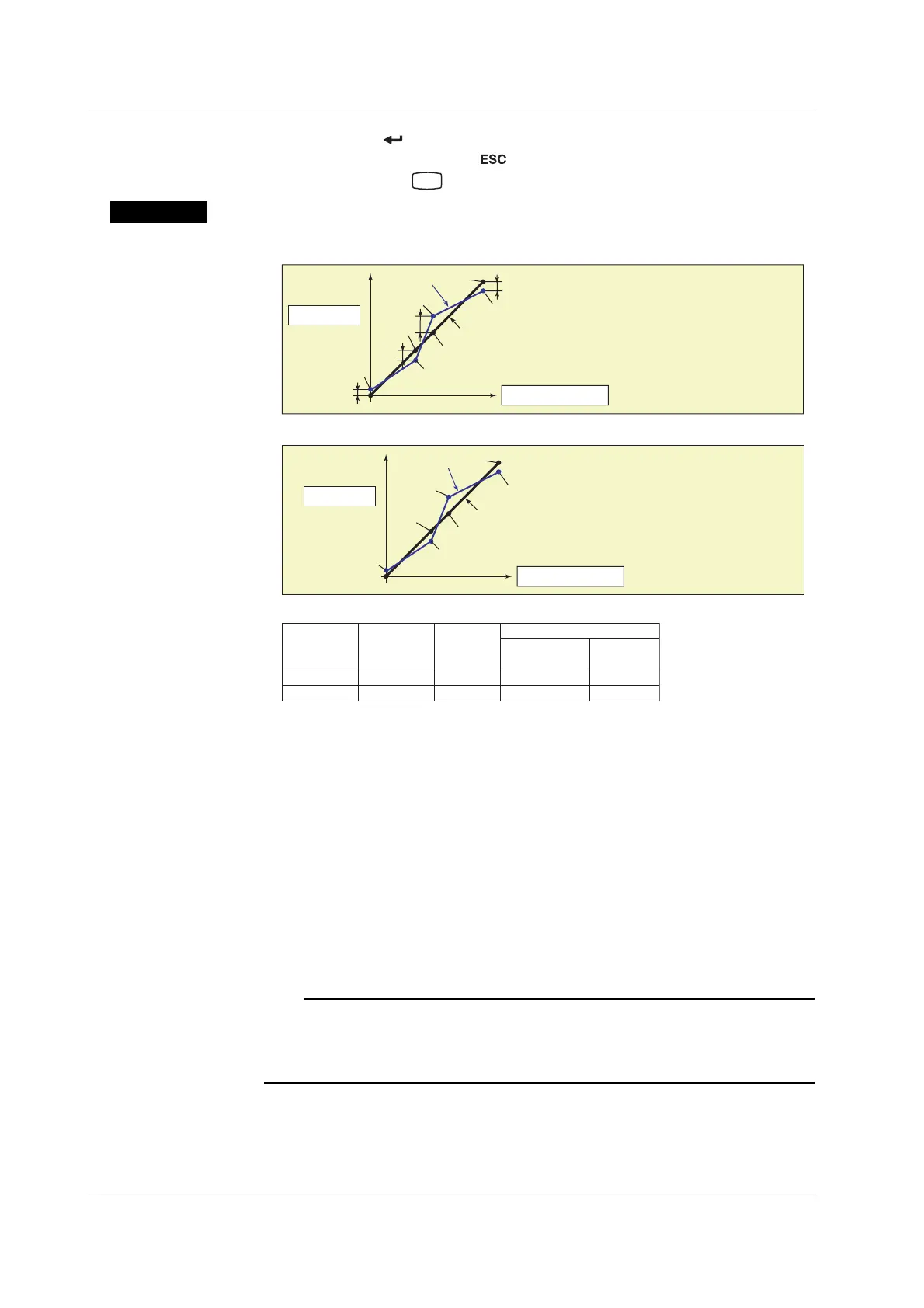

Setting Measured and Corrected Values
• Using revise values
Calibration point
B4
A3
A2
A1
A4
B3
B2
B1
Scale value
Correction
value
Measured
value
Correction using revise values
Correction point (measured value) = A
Correction value = B – A
• Using absolute values
Calibration point
B4
A3
A2
A1
A4
B3
B2
B1
Scale value
Correction
value
Measured
value
Correction using absolute values
Correction point (measured value) = A
Correction value = B
Corrected
Value
10.0°C
90.0°C
Calibration
Point
1
2
Measured
value (A)
9.8°C
90.5°C
Example of a two-point correction
Revise Value
(B – A)
0.2°C
– 0.5°C
Absolute
Value (B)
10.0°C
90.0°C
Correction Value
Setup Conditions of Measured and Correction Values
• Setting range of measured and correction values when using revise values
A1 < A2 ≤ A3 ≤ ... ≤ A16
(A1 + B1) < (A2 + B2) < (A3 + B3) < ... < (A16 + B16)
A and B are within the measurable range or scaling range of the range type*
* Within the scaling range: –5% to 105% of the scale value or –19999 to 30000 (the decimal
place is the same as the setting for the scale value)
• Setting range of measured and correction values when using absolute values
A1 < A2 ≤ A3 ≤ ... ≤ A16
B1 < B2 < B3 < ... < B16
A and B are within the measurable range or scaling range of the range type*
* Within the scaling range: –5% to 105% of the scale value or –19999 to 30000 (the decimal
place is the same as the setting for the scale value)
Note
• Make sure that the leftmost value is less than the rightmost value for span and scale.
• Calibration correction cannot be set on ON/OFF input (DI), delta computation, and square root
computation channels. In addition, calibration correction cannot be used on all channels if the
bias function is enabled.
<Related Topics> Enabling the calibration correction function: Section 4.15
Setting the calibration correction method and number of calibration
points: Section 4.22
3.11 Performing Calibration Correction (/CC1 Option)
