4-21
IM 04P03B01-01E
Setup Operations for Changing/Adding Functions (Basic Setting Mode)
4

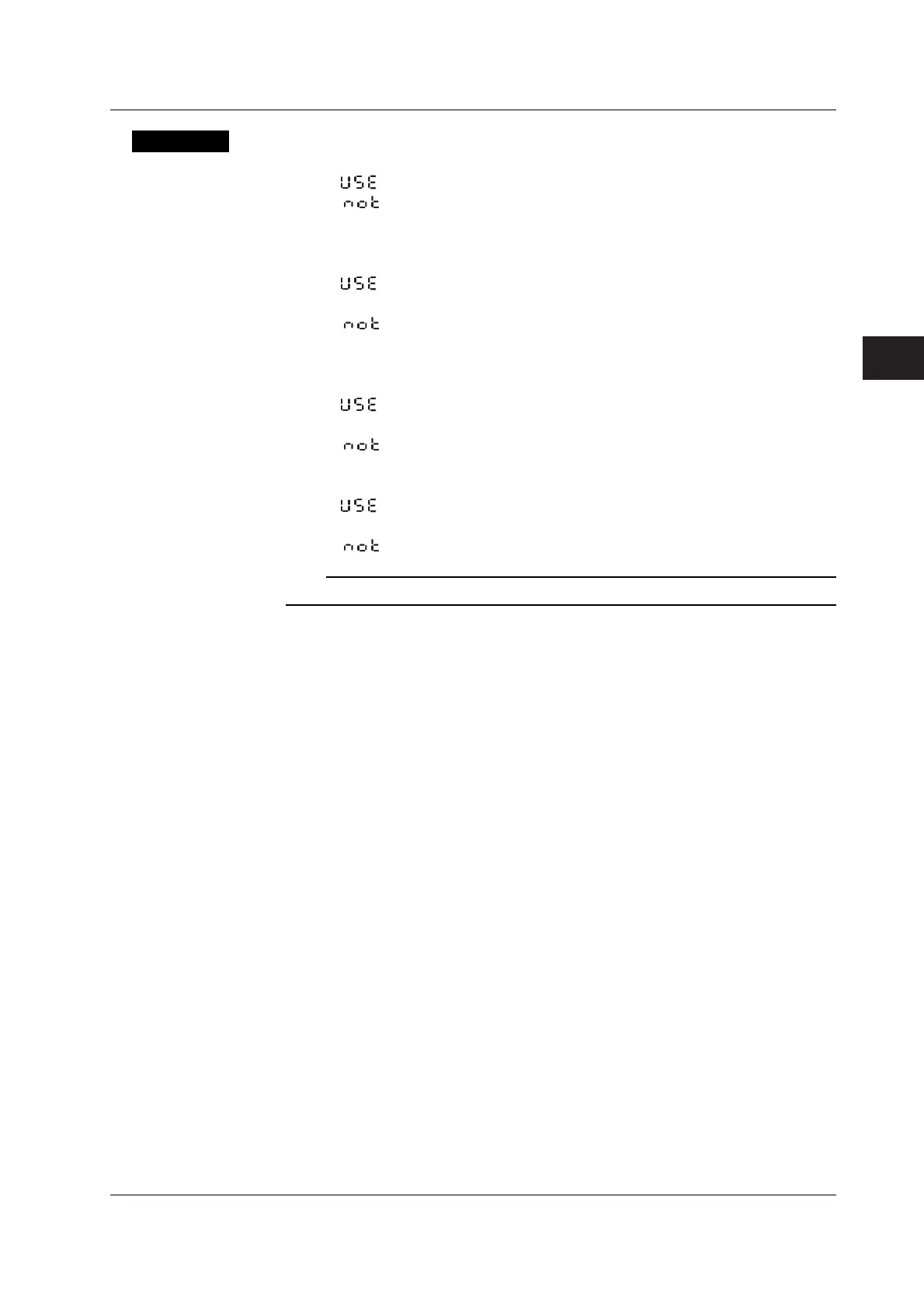

Explanation
Bias
Enable (
): Enables the setting of the bias value in Setting mode.
Disable ( ): The “BIAS” item does not appear in Setting mode.
SQRT Low-Cut
Sets the low-cut function for the square root computation.
Enable (
): Enables the setting of the low-cut function when a channel is set to
square root computation in Setting mode.
Disable ( ): The “SQRT” item does not appear in Setting mode.
1-5V Low-Cut
Sets the low-cut function for the 1-5V input.
Enable (
): Enables the setting of the low-cut function when a channel is set to 1-
5V in Setting mode.
Disable ( ): The “1-5V” item does not appear in Setting mode.
Calibration Correction (/CC1 Option)
Enable (
): Enables the setting of the calibration correction function in Basic
Setting and Setting modes.
Disable (
): The “CALIB” item does not appear in Basic Setting or Setting mode.
Note
The bias and calibration correction functions (/CC1 option) cannot be enabled simultaneously.
<Related Topics> Setting the bias value: Section 3.10
Setting the low-cut function: Section 2.1
Setting the calibration correction method and number of calibration
points: Section 4.22
Performing calibration correction: Section 3.11
4.15 Enabling the Bias, Low-Cut, and Calibration Correction (/CC1 Option) Functions
