YOKOGAWA wt3000 User Manual

4-6 IM 760301-01E

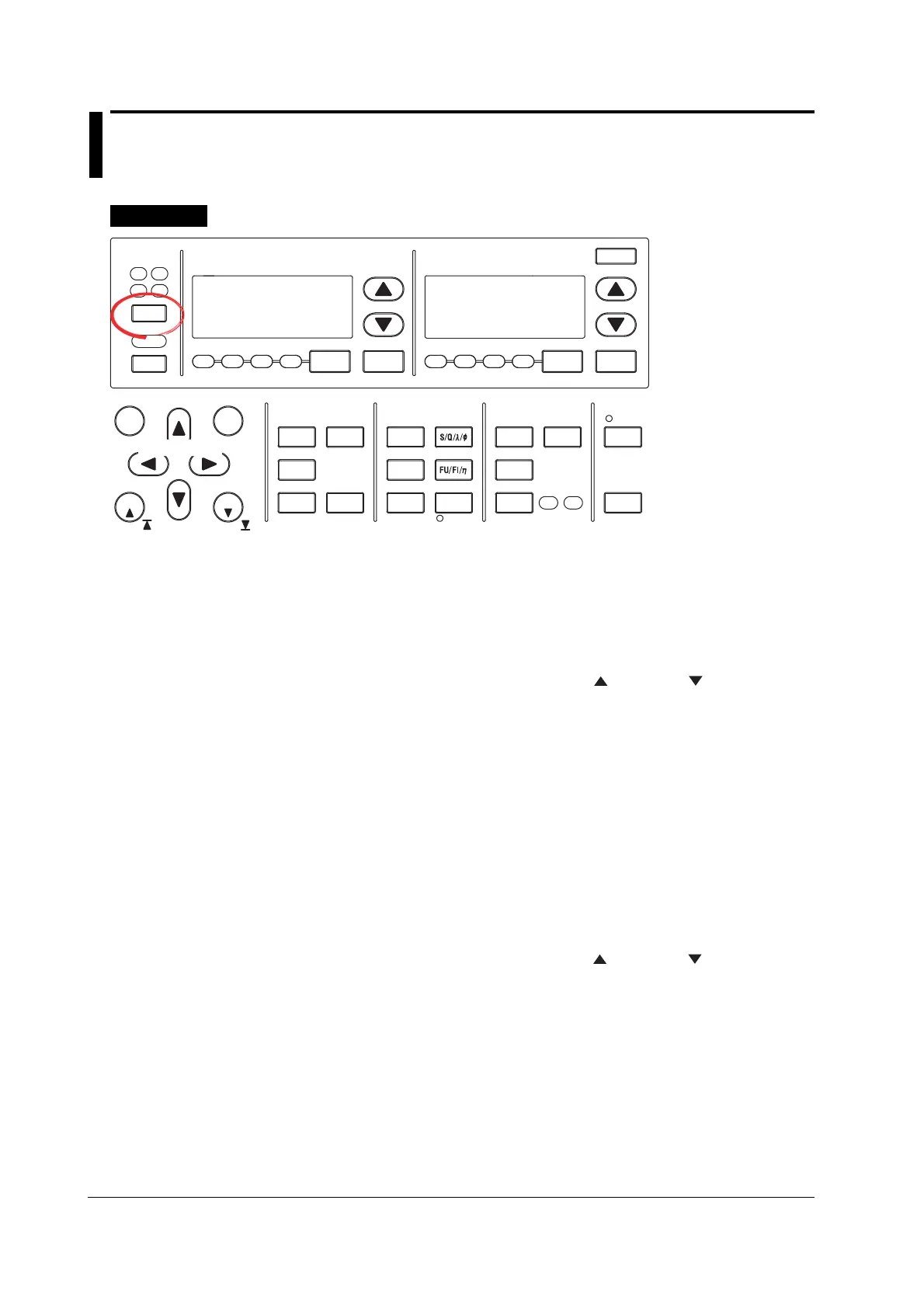

4.3 Setting the Measurement Range for Direct
Input
Procedure
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGEVOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
LOWER ITEM LOWER FORM ALLUSER SET
DISPLAY ITEM & ELEMENT
2
34
COMPEN
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE AUTO
EXT SENSOR
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
RESET SET
PAGE PAGE
Cursor keys
To exit the menu during
operation, press ESC
located above the soft
keys.
In the procedural
explanation below, the
phrase “press the cursor
keys” may be used. This
phrase refers to the
procedures for selecting
items and entering values
and character strings. For
details on the procedures,
see section 3.14.
• Selecting the Target Element
1. Press ELEMENT to select the target element. The corresponding element
indicator above of the ELEMENT key illuminates. To select all elements, press
SHIFT+ELEMENT (ALL).
• Setting the Voltage Range
2. Press the voltage range selection key (UP
and DOWN keys) to set the
voltage range. The specified range is displayed with the voltage range indicator
to the left of the select keys and on the upper-right corner of the screen where
the element is displayed.
• Press the voltage range UP key to increase the voltage range.
• Press the voltage range DOWN key to decrease the voltage range.
• Press AUTO to specify auto range. The AUTO key illuminates.
• Setting the Current Range
• Selecting the Current Input Terminal
3. Check that the EXT SENSOR key is not illuminated. If it is, press EXT
SENSOR. The EXT SENSOR key turns OFF.
• Setting the Current Range
4 Press the current range selection key (UP
and DOWN keys) to set the
current range. The specified range is displayed with the current range indicator
to the left of the select keys and on the upper-right corner of the screen where
the element is displayed.
• Press the current range UP key to increase the current range.
• Press the current range DOWN key to decrease the current range.
• Press AUTO to specify auto range. The AUTO key illuminates.
5. Repeat steps 1 and 4 to set the measurement range of all elements.

YOKOGAWA wt3000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Input Elements	Up to 4 elements
Harmonic Measurement	Up to 500th order
Interfaces	USB, Ethernet, RS-232
Sampling Rate	2 MS/s
Voltage Range	1.5 V to 1000 V
Display	8.4-inch LCD
