5-4 IM 760301-01E
• Selecting from the Menu
4. Press ITEM to display the Numeric menu.
• Selecting the Item to Be Changed
5. Press the Item No. soft key.
6. Press the cursor keys to select the item to be changed. The item to be
changed is highlighted.

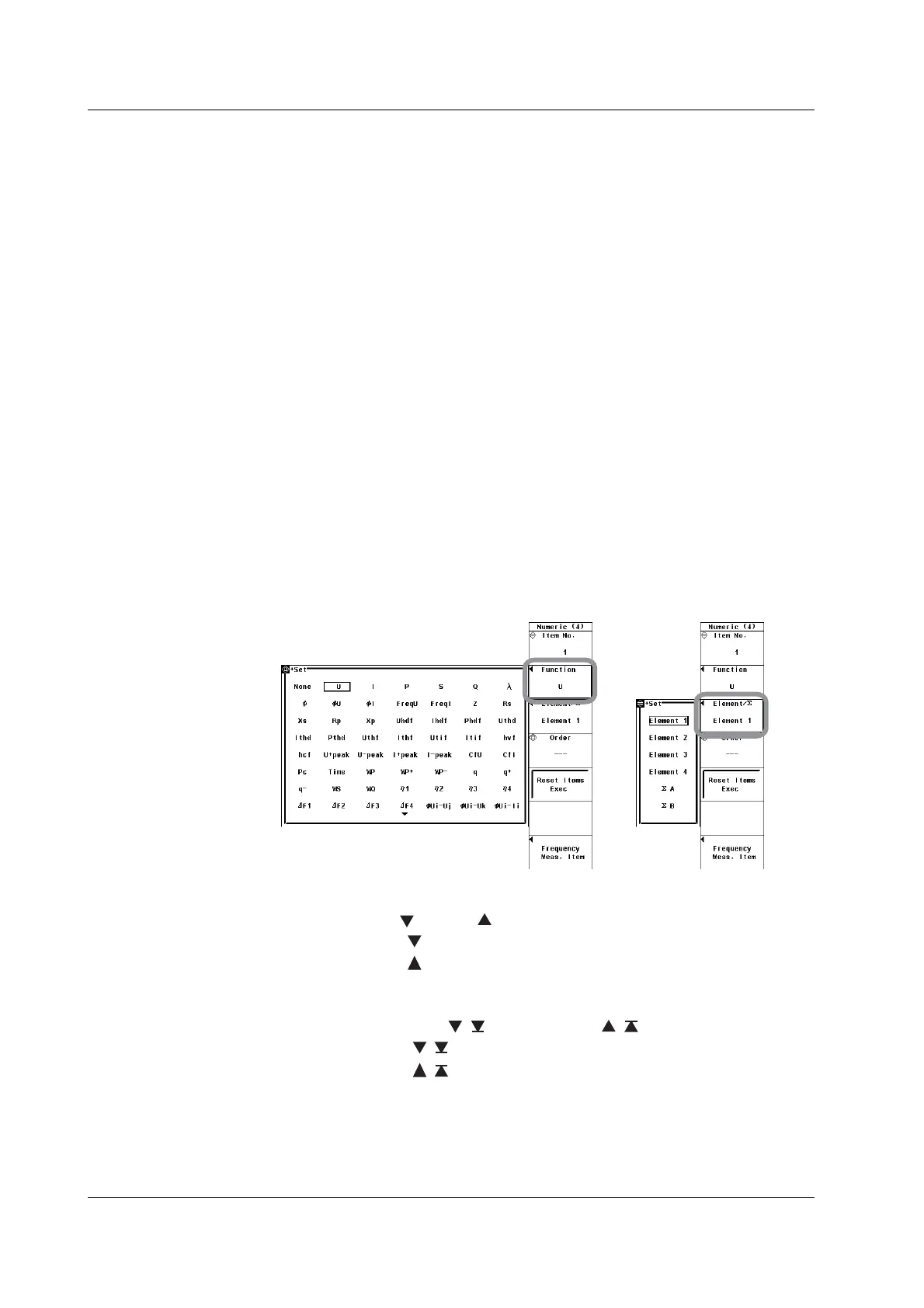

• Changing the Measurement Function
7. Press the Function soft key to display the measurement function selection box.
8. Press the cursor keys to select any of the measurement functions starting with
None.
9. Press SET. The symbol for the selected measurement function and the numeric
data are displayed at the highlighted position.
• Changing the Element/Wiring Unit
10. Press the Element/
ΣΣ
ΣΣ
Σ soft key to display the element/wiring unit selection box.
11. Press the cursor keys to select any of the elements/wiring units starting with
Element1.
12. Press SET. The symbol for the selected element number or wiring unit and the
numeric data are displayed at the highlighted position. This completes the
procedure for changing the displayed items using the menu.
* For details on changing the harmonic order of the measurement functions of harmonic
measurement, see the Expansion Function User’s Manual IM760301-51E .
• Page Scrolling the Display
15. Press PAGE
or PAGE to scroll the page.
• Press PAGE to display the next page.
• Press PAGE to display the previous page.
• Jumping to the Last or First Page
16. Press SHIFT+PAGE ( ) or SHIFT+PAGE ( ) to jump the page.
• Press SHIFT+ ( ) to display the last page.
• Press SHIFT+ ( ) to display the first page.
5.1 Displaying Numeric Data and Changing the Displayed Items
