YOKOGAWA wt3000 User Manual

6-12 IM 760301-01E

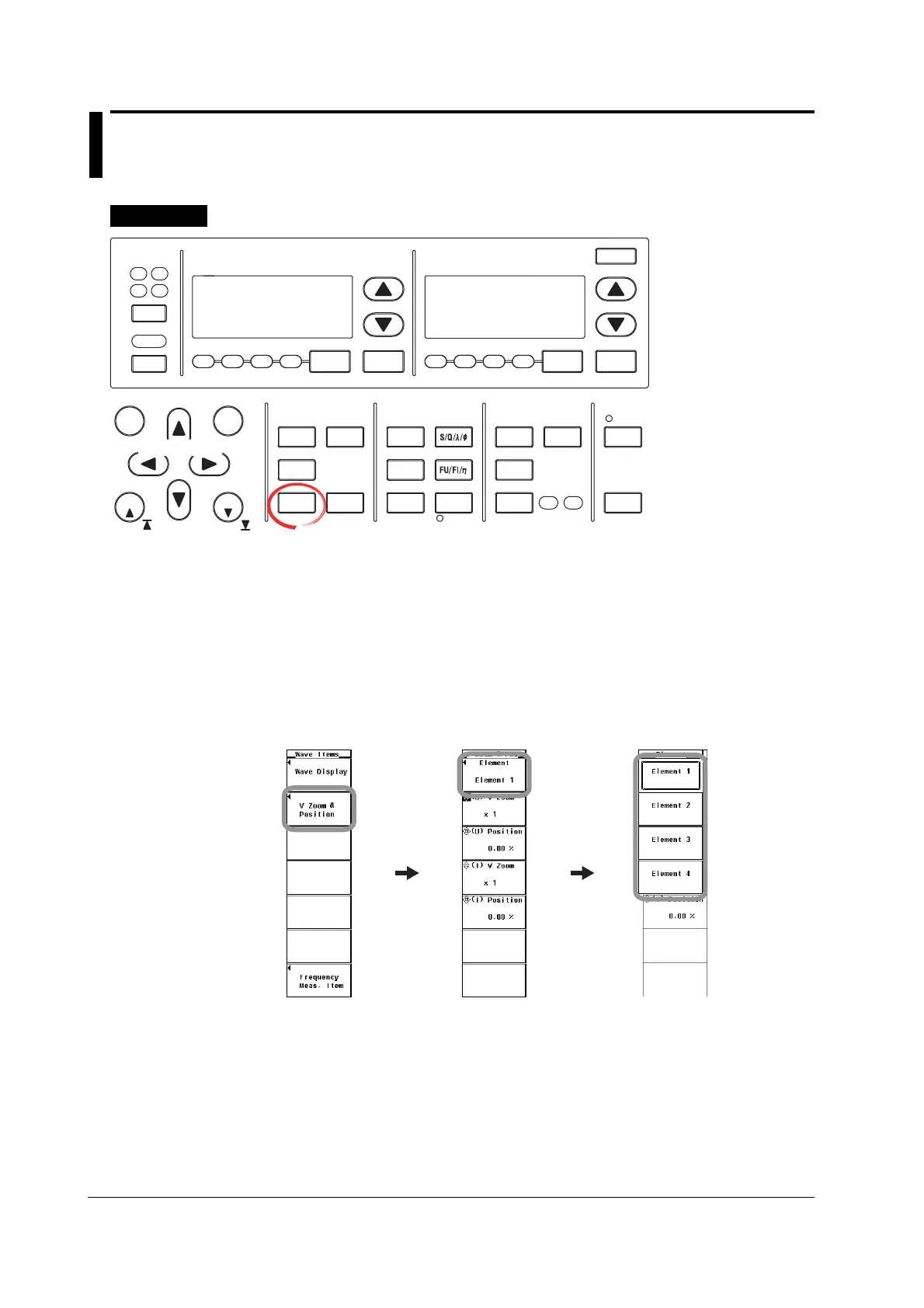

6.5 Zooming Vertically and Moving the Vertical
Position
Procedure
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGEVOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
LOWER ITEM LOWER FORM ALLUSER SET
DISPLAY ITEM & ELEMENT
2
34
COMPEN
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE AUTO
EXT SENSOR
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
RESET SET
PAGE PAGE
Cursor keys
To exit the menu during
operation, press ESC
located above the soft
keys.
In the procedural
explanation below, the
phrase “press the cursor
keys” may be used. This
phrase refers to the
procedures for selecting
items and entering values
and character strings. For
details on the procedures,
see section 3.14.
1. Press ITEM to display the Wave Items menu.
If the waveform display is at the lower section of the screen on the split display, press
SHIFT+ITEM (LOWER ITEM).
2. Press the V Zoom & Position soft key to display the V Zoom & Pos menu.
• Selecting the Target Element
3. Press the Element soft key to display the Element menu.
Only the installed elements are displayed.
4. Press one of the soft keys corresponding to the displayed element to select the
target element.
