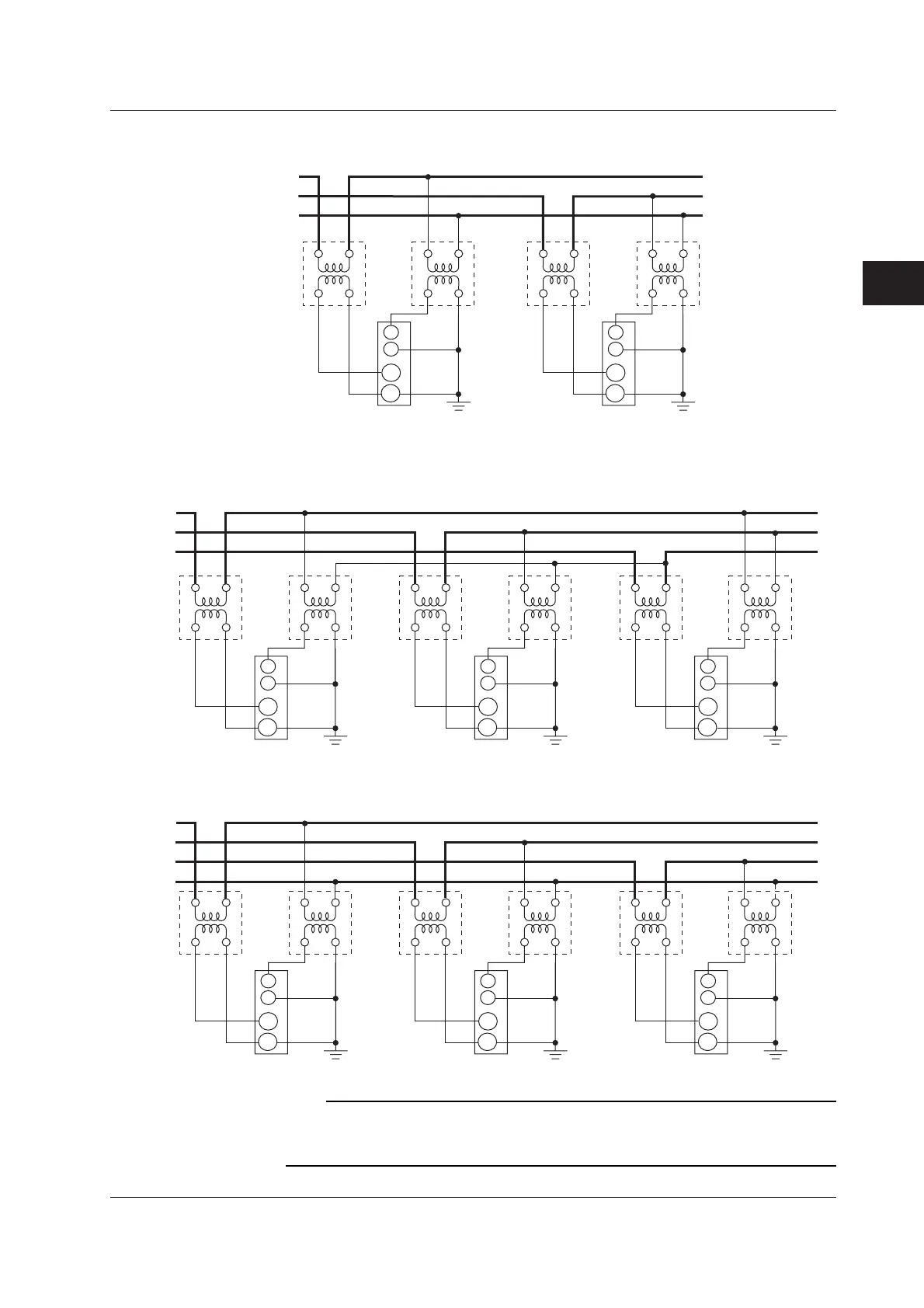

Wiring Example of a Three-Phase, Three-Wire System (3P3W) Using VT and CT
L
CT
VT
V
v
l
L
CT
VT
V
vl
SOURCE
LOAD
R
S
T
Input terminal 1
I
±
U
±
Input terminal 2
I
±
U
±
Wiring Example of a Three-Phase, Three-Wire System (Three-Voltage, Three-Current
System) [3P3W (3V3A)] Using VT and CT
L
CT
VT
V
v
l
L
CT
VT
V
vl
SOURCE
L
CT
VT
V
v
l
LOAD
R
S
T
Input terminal 1
I
±
U
±
Input terminal 2
I
±
U
±
Input terminal 3
I
±
U
±
Wiring Example of a Three-Phase, Four-Wire System (3P4W) Using VT and CT
L
CT
VT
V
v
l
L
CT
VT
V
vl
SOURCE
L
CT
VT
V
v
l
LOAD
R
S
T
N
Input terminal 1
I
±
U
±
Input terminal 2
I
±
U
±
Input terminal 3
I
±
U
±
Note
For the relationship between the wiring systems and the method of determining the measured
values or computed values, see Appendix 1, “Symbols and Determination of Measurement
Functions.”
