Accessories
131
4.
Connect the other end of the Ethernet cable to the Primary port of the next 5-Slot Ethernet cradle.
5. Connect additional cradles as described in step 3 and 4.
Ethernet Communication
Ethernet LED Indicators
There are two green LEDs on the side of the cradle. These green LEDs light and blink to indicate the data
transfer rate.
Establishing Ethernet Connection
1. Go to Settings.
2. Touch Network & internet > Ethernet.

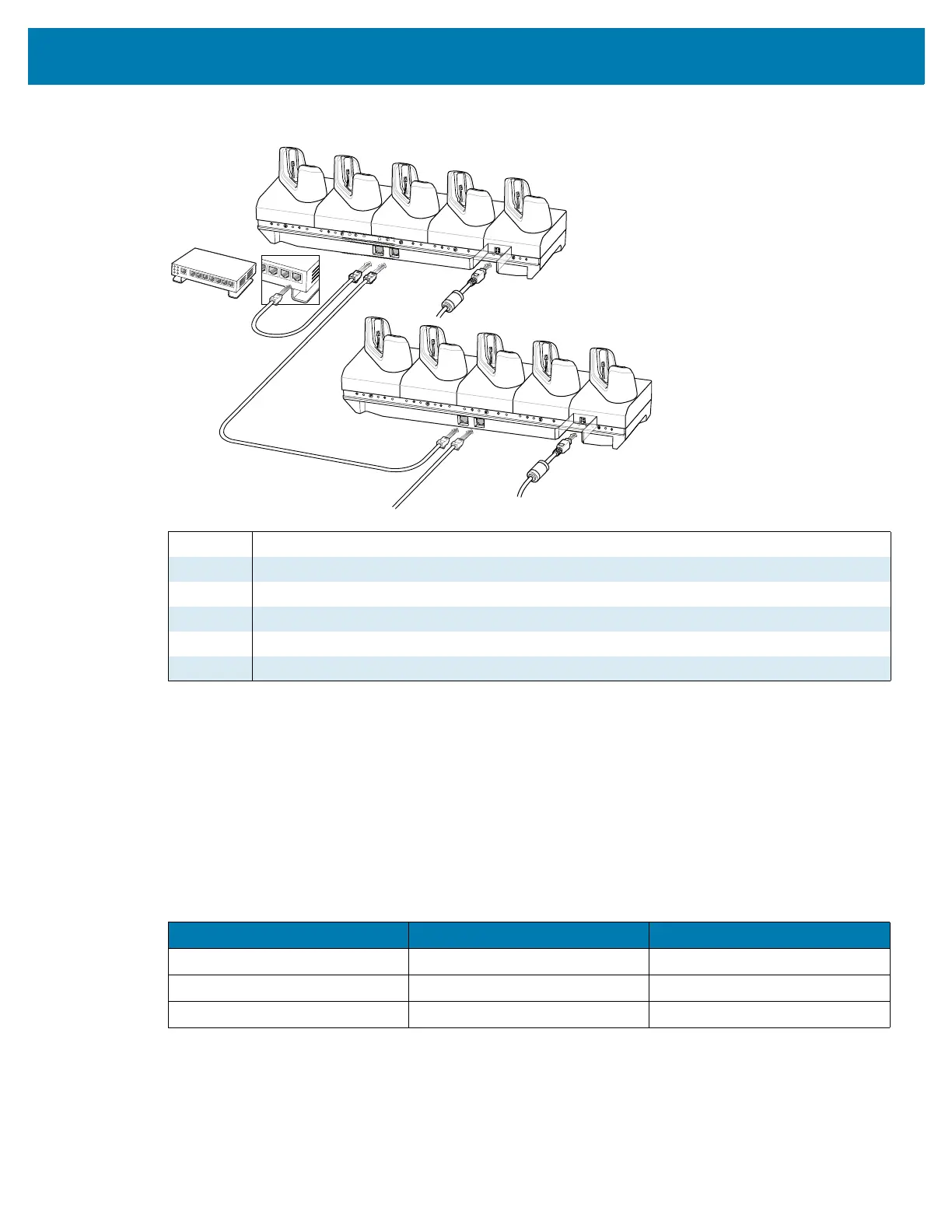

1 Primary Port
2 Secondary Port
3 To Switch
4 To Power Supply
5 To Next Cradle
6 To Power Supply
Table 18 LED Data Rate Indicators
Data Rate 1000 LED 100/10 LED
1 Gbps On/Blink Off
100 Mbps Off On/Blink
10 Mbps Off On/Blink
