Cradle Installation
136

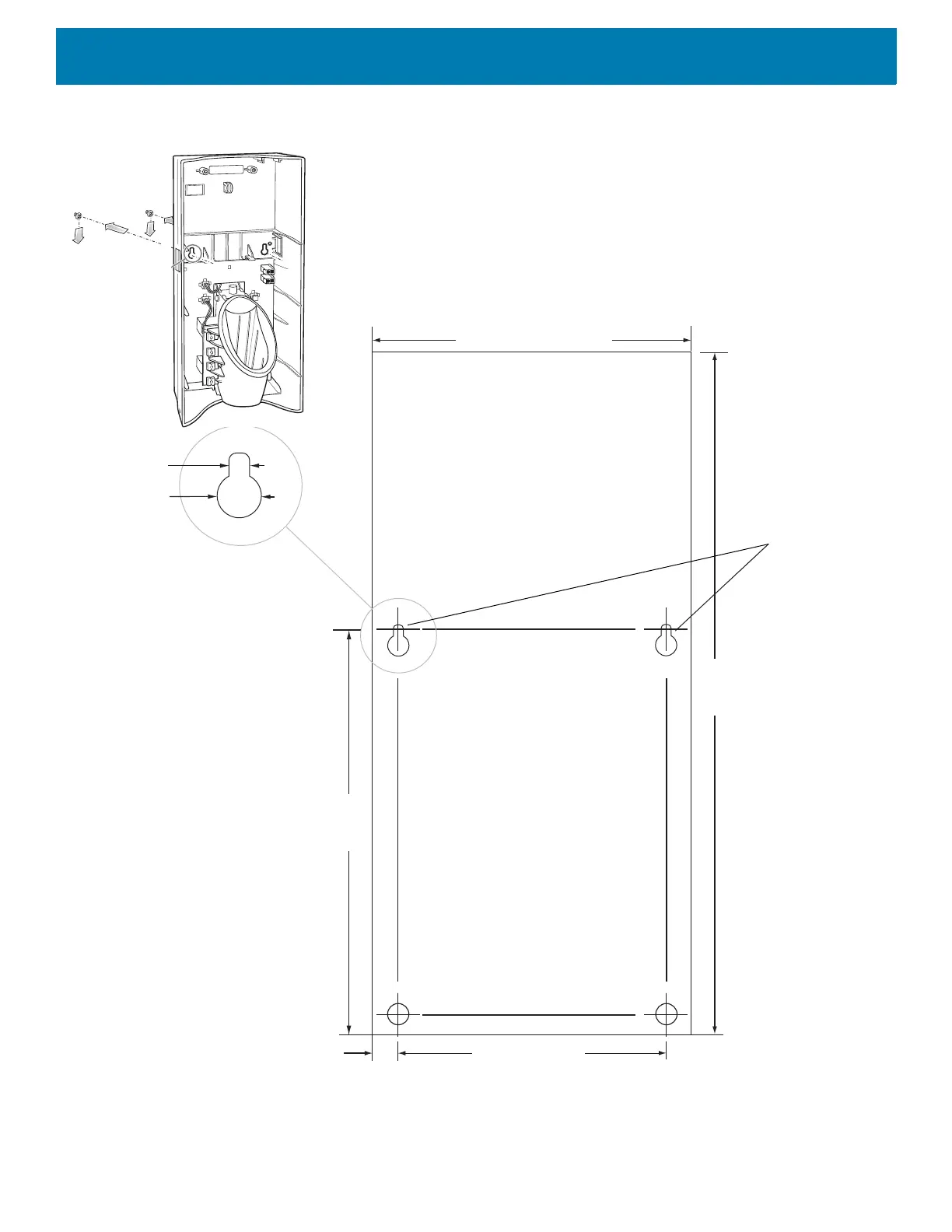

Figure 94 Hanging the Cradle on a Wall - Mounting Template
Two Mounting Holes
20.5 mm
(0.80”)
86 ± 0.2 mm
(3.39 ± 0.01”)
127 mm ± 0.4 mm
(5.0” ± 0.02”)
162.5 ± 0.2 mm
(6.39” ± 0.01”)
271.8 mm ± 0.7 mm
(10.70” ± 0.03”)
4mm
(0.16”)
8.5mm
(0.33”)
