Cradle Installation
139

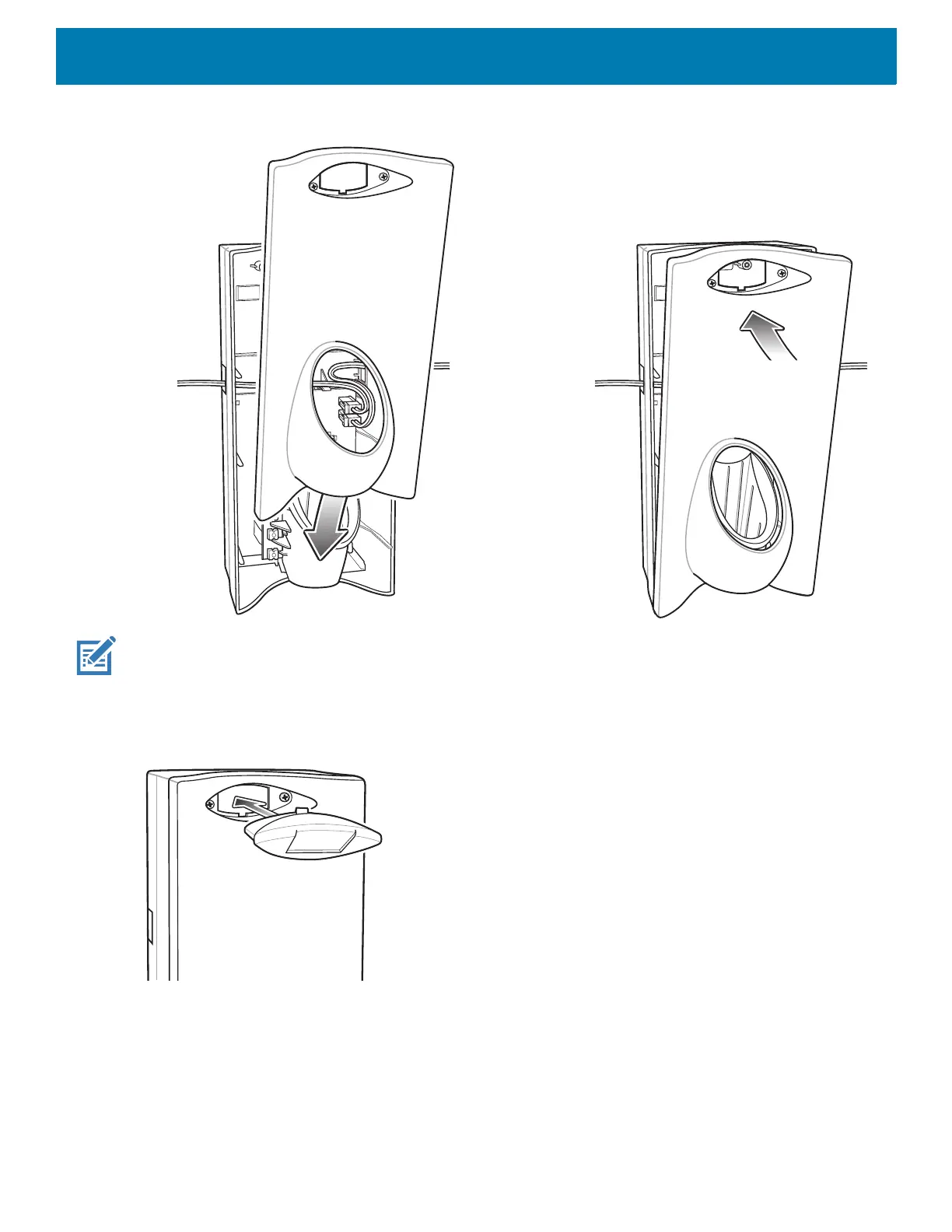

Figure 99 Replace Cover
NOTE: Do not install the target cover until you are sure that you do not need to remove the front cover again.
3. Insert bar code target cover.
4. Push target cover into front cover until it snaps into place.
Figure 100 Replace Target Bar Code Cover
System Cabling
There are some general limitations that must be taken into account when designing a dispenser and ordering
hardware elements of a Personal Shopper system:
• No more than six cradles can be powered off each leg of the “Y” power cable.
• A power supply cable runs from the power supply to one or two cradles.
