Cradle Installation
141

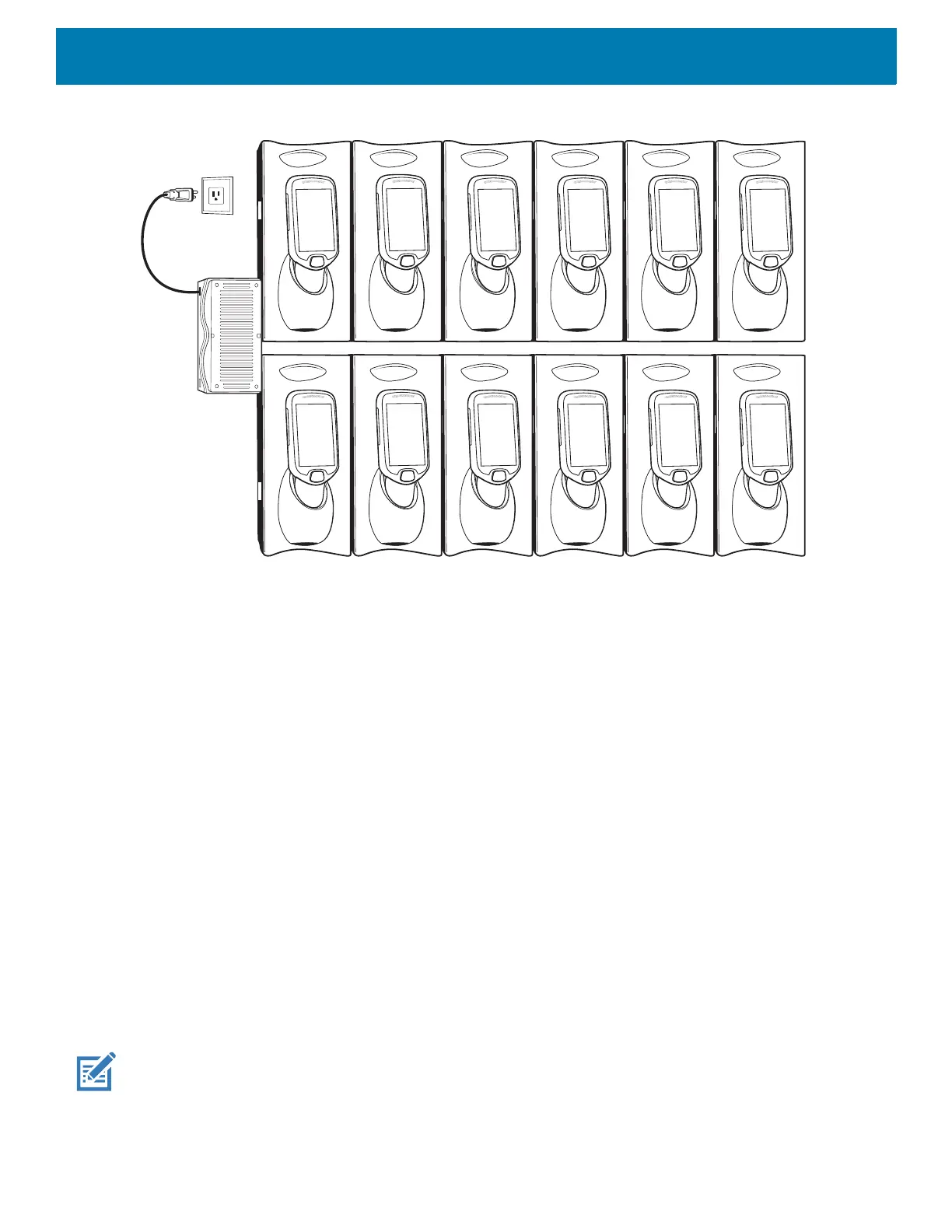

Figure 102 Maximum Number of Charge Cradles per Power Supply with “Y” Power Cable
Installation of the Three Slot Cradle
Installation of the Three Slot Cradle include the following mounting steps:
• Select the mounting configuration (see Mounting Configurations on page 141)
• Select the charging mode (see Charging Modes on page 143)
• Mount the Three Slot Cradles on a dispenser wall (see Mounting the Three Slot Cradle on a Dispenser Wall
on page 145)
• Set the cradle(s) (see Controlling the Cradle on page 110)
Mounting Configurations
Three slot cradles can be installed in the following mounting configurations:
• High Density (HD) configuration - Using HD cradles
• Super High Density (SHD) configuration - Using SHD cradles
• Desktop configuration - Using stand alone cradle(s) on a flat surface
High Density Configuration
The cradle can be installed in high density configuration so that the display of the PS20 devices are facing the
user. In this configuration, cradles are installed with a vertical gap of 35mm between each other.
NOTE: In high density configuration, the PS20 units have a 10-degree forward-facing tilt that should be taken in consider-
ation, especially if furniture is planned to be placed in front of the dispenser wall.
