Cradle Installation
142

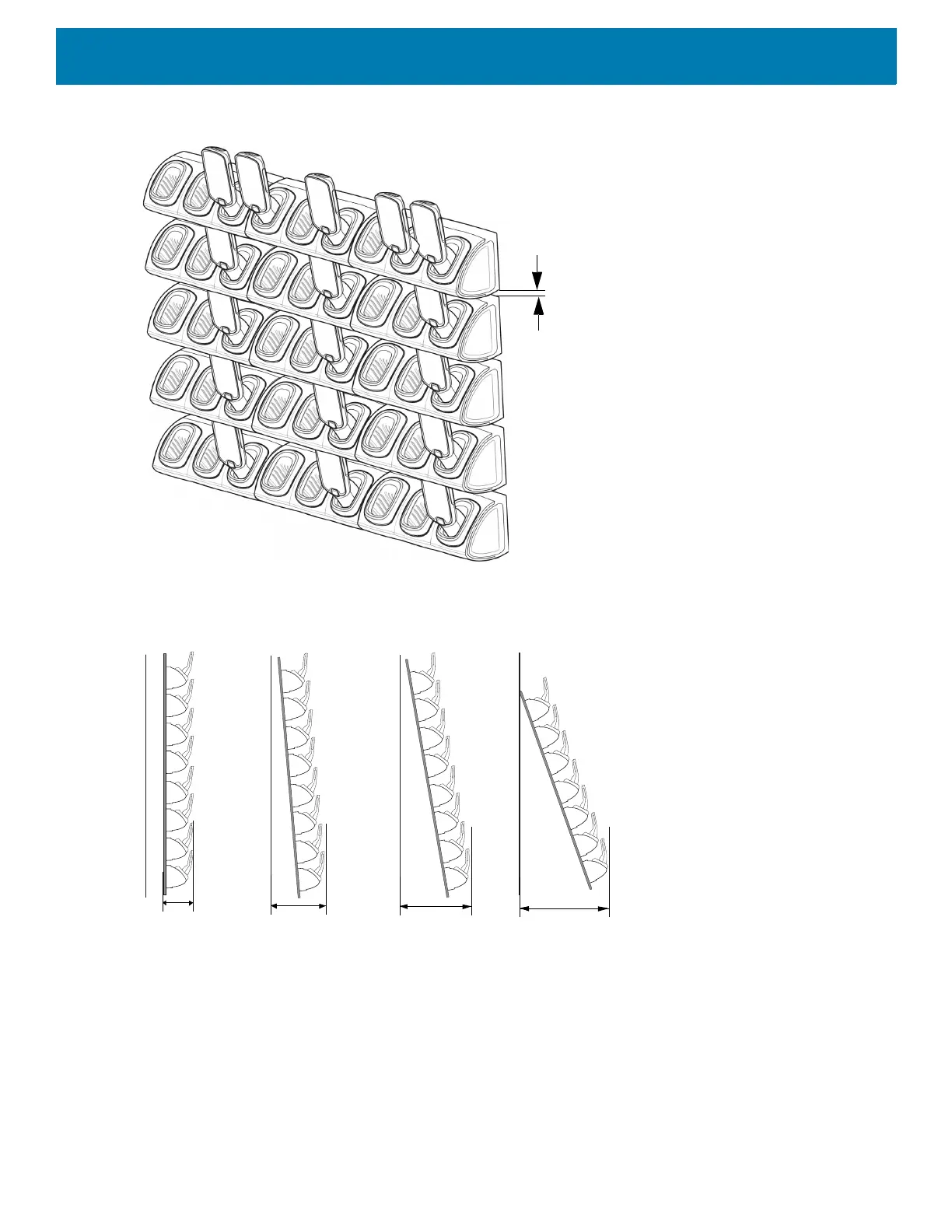

Figure 103 Installation in High Density Configuration
The installation of the dispenser wall can be designed so that it tilts slightly backward in the following angles:
Figure 104 Dispenser Wall Angles
Super High Density Configuration
The cradle can be installed in super high density configuration so that the display of the PS20 devices are
facing up. In such configuration, cradles are installed with a vertical gap of 7mm from each other to allow more
cradles per square meter.
35mm
274 mm
301 mm
387 mm
499 mm
0 °
5 °
10 °
10 °
