Replacement Procedures for the Printer
Procedures: Feeder/Flipper Assembly

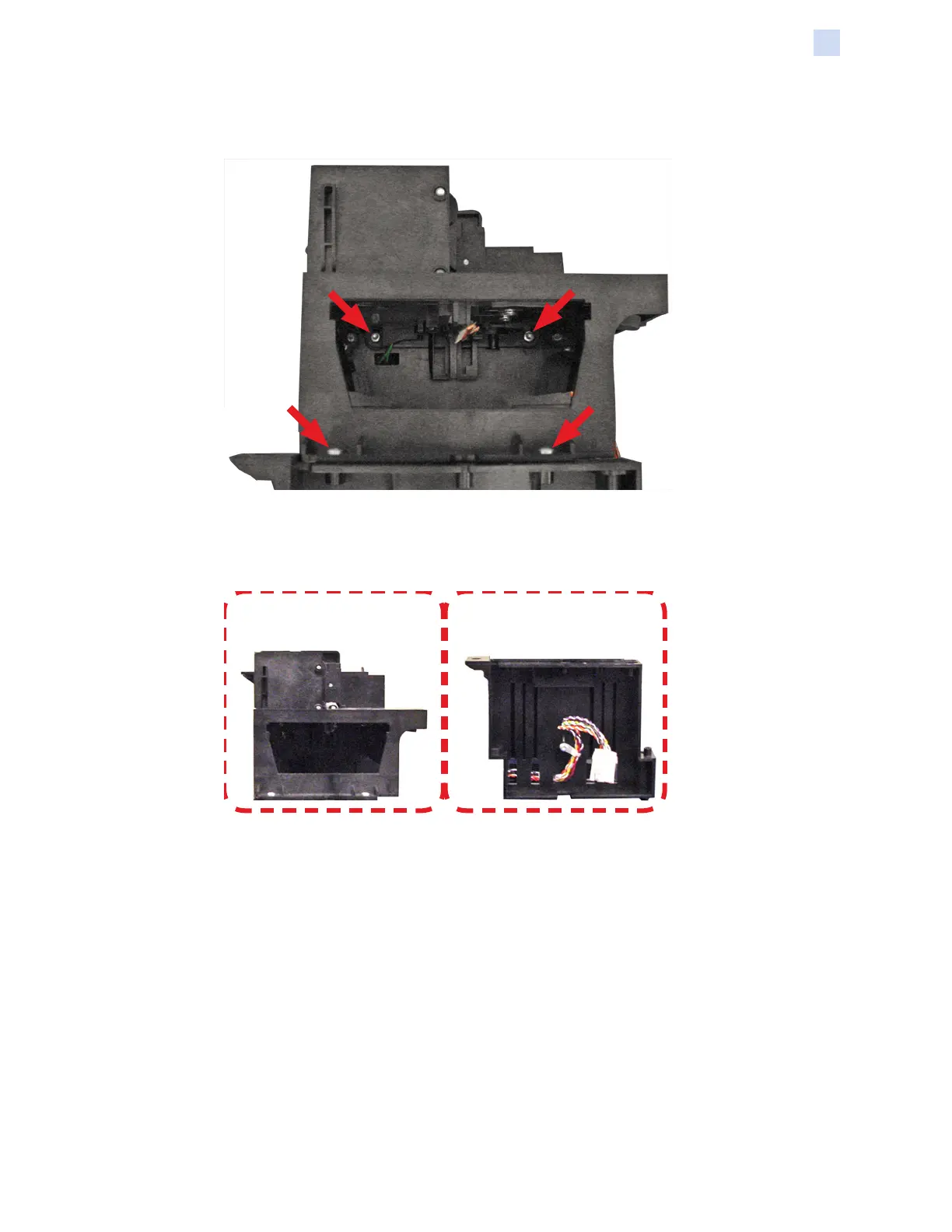

Step 2. From the front of the Assembly: With a TORX T10 driver, remove the four
screws holding the Feeder and the Flipper together.
Step 3. Disconnect the two ground wires that go through the hole close to the top
left side screw.
Step 4. Separate the Feeder Module and the Flipper Module.
FEEDER FLIPPER
Replacement
Replacement is performed by reversing the removal steps.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
