Replacement Procedures for the Laminator
Procedures: Laminator Controller PCBA
Laminator Controller PCBA
Step 1. Unplug all the Laminator Controller PCBA cable connectors and ground
connections. To avoid confusion when reinstalling, mark all disconnected
plugs and associated connectors.

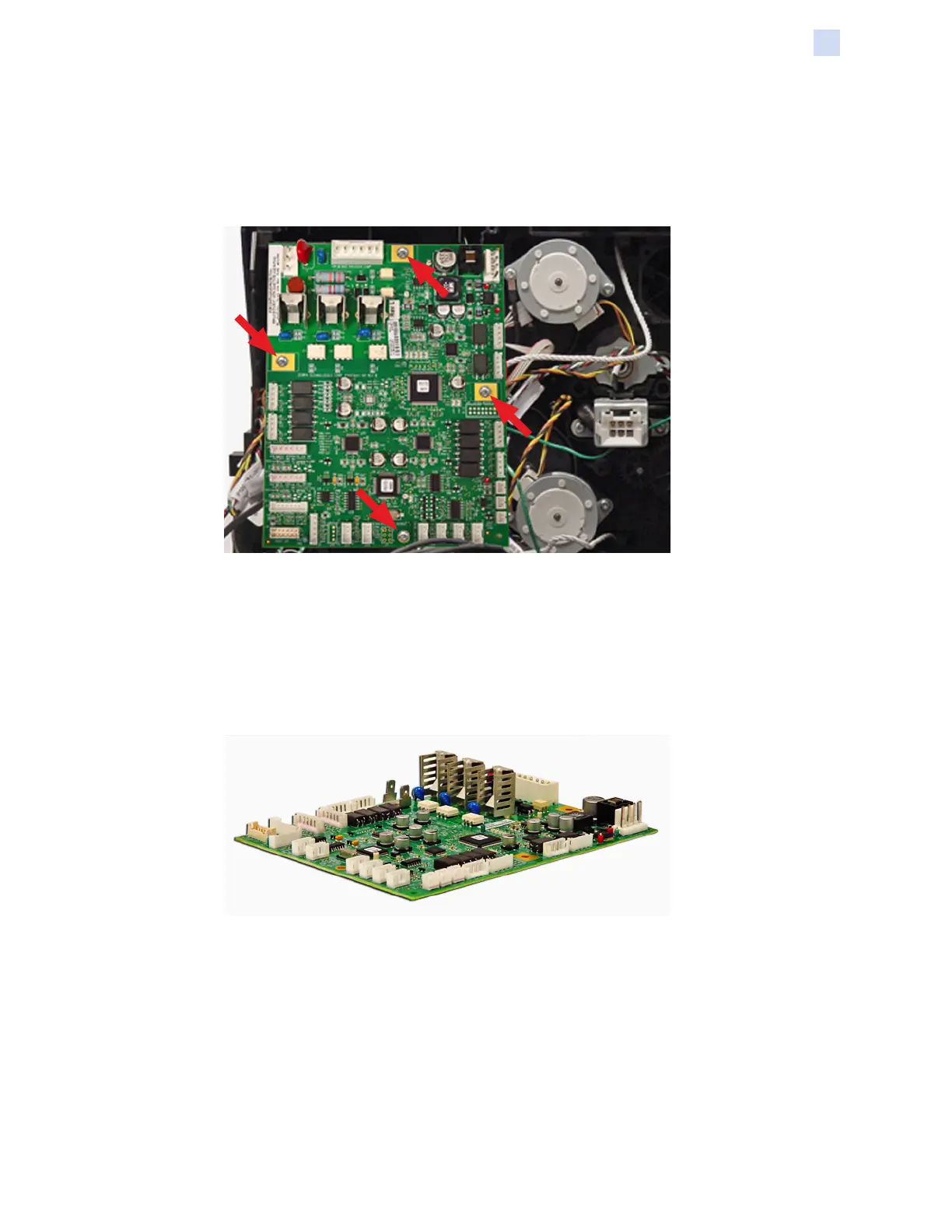

Step 2. With a TORX T10 driver, remove the four mounting screws (circled above)
holding the Laminator Controller PCBA in place.
Step 3. Set the Laminator Controller PCBA aside.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
